Product Description:

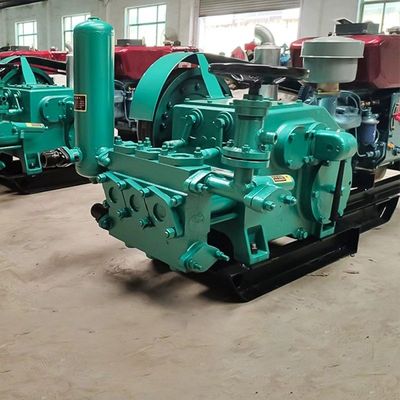

The BW mud pump for HDD is a versatile and powerful drilling equipment designed for horizontal directional drilling applications. This Three Cylinder Mud Pump is essential for maintaining proper circulation of drilling mud during HDD operations, ensuring smooth and efficient drilling processes.
The HDD Drilling Mud Pump is available in two variants based on input power - 16.2kW with a diesel engine or 11kW with a motor. This flexibility allows users to choose the power source that best suits their specific requirements and operating conditions.
With a rated pressure range of 2.5MPa to 10MPa, this mud pump offers exceptional performance capabilities to handle various drilling challenges. Whether you need lower pressure for simple drilling tasks or higher pressure for more demanding projects, this pump can deliver reliable results.
The compact design of the BW mud pump ensures easy transportation and maneuverability on job sites. With overall dimensions of 1450×745×970mm and a weight of 430kg, this pump is both sturdy and portable, making it ideal for HDD operations in diverse environments.
When it comes to fluid handling, the Theoretical Flow Rate of the HDD Drilling Mud Pump ranges from 160L/min to 44L/min. This wide flow rate range allows operators to adjust the mud circulation based on the specific drilling requirements, ensuring optimal performance and efficiency.
Features:
- Product Name: Drilling Mud Pump
- Rated Pressure (MPa): 2.5/4/6.5/10
- Piston Stroke (mm): 70
- Cylinder Liner Dia (mm): 70
- Weight (Kg): 430
- Overall dimensions (mm): 1450×745×970
Technical Parameters:
| Parameter |
Value |
| Theoretical Flow Rate (L/min) |
160/107/67/44 |
| Rated Pressure (MPa) |
2.5/4/6.5/10 |
| Weight (Kg) |
430 |
| Piston Stroke (mm) |
70 |
| Overall Dimensions (mm) |
1450×745×970 |
| Input Power (kW) |
16.2 (diesel engine) or 11 (motor) |
| Model |
BW160-10 |
| Cylinder Liner Dia (mm) |
70 |
Applications:
Glorytek BW160/10 Drilling Mud Pump is a versatile and high-performance pump suitable for various application occasions and scenarios in the drilling industry. With its exceptional features and specifications, this pump is ideal for the following product application scenarios:
Horizontal Directional Drilling (HDD) Operations: The Glorytek BW160/10 Mud Pump is perfect for HDD operations due to its reliable performance and efficiency. As a single-acting piston pump, it can handle the demanding requirements of HDD projects with ease.
Exploration and Well Drilling: Whether you are involved in exploration drilling or well drilling activities, this Three Cylinder Mud Pump is a dependable choice. Its cylinder liner diameter of 70mm and rated pressure options of 2.5/4/6.5/10 MPa make it suitable for various drilling depths and conditions.
Geotechnical and Construction Projects: The Glorytek BW160/10 is also well-suited for geotechnical and construction projects that require a robust and efficient pump. With its input power options of 16.2 kW (diesel engine) or 11 kW (motor), it can easily handle the pumping requirements of such projects.
Moreover, this pump is manufactured in China and comes with certifications such as CE and SGS, ensuring its quality and compliance with international standards. It has a minimum order quantity of 1 set and a competitive price of $3800, making it accessible for various project sizes.
For packaging and delivery, the pump is shipped in standard shipping packaging, with a delivery time of 30 days. Payment terms include 100% advance payment by T/T, providing convenience and security for customers. With a supply ability of 100 sets per month and a weight of 430 kg, the Glorytek BW160/10 Mud Pump is a reliable and efficient solution for a wide range of drilling applications.
Support and Services:
The Product Technical Support and Services for the Drilling Mud Pump include:
- Troubleshooting assistance for pump operation issues
- Maintenance guidance to ensure optimal performance
- Repair services for pump components
- Training programs for operators on pump usage and maintenance
Packing and Shipping:
Product Packaging:
The Drilling Mud Pump is carefully packaged in a sturdy cardboard box to ensure it arrives safely to your location. The product is secured with foam padding to prevent any damage during transit.
Shipping:
We offer reliable shipping services to deliver the Drilling Mud Pump to your desired destination. Our team ensures that the product is dispatched promptly and reaches you in a timely manner.
FAQ:
Q: What is the brand name of this Drilling Mud Pump?
A: The brand name is Glorytek.
Q: What is the model number of this Drilling Mud Pump?
A: The model number is BW160/10.
Q: Where is this Drilling Mud Pump manufactured?
A: This product is manufactured in China.
Q: What certifications does this Drilling Mud Pump have?
A: This product is certified with CE and SGS.
Q: What is the minimum order quantity for this Drilling Mud Pump?
A: The minimum order quantity is 1 set.
