Compact Design BW Type Mud Pump with 70mm Piston Stroke and Overall dimensions of 1450×745×970

Product Description:

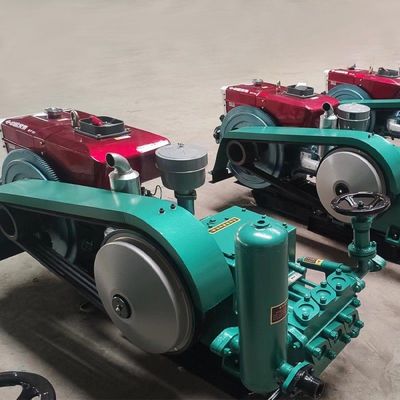

The Drilling Mud Pump model BW160-10 is a powerful and efficient single acting piston pump designed for use in HDD drilling operations. With overall dimensions of 1450×745×970 mm and a weight of 430 kg, this three-cylinder mud pump is compact yet robust, making it ideal for various drilling applications.

Equipped with a piston stroke of 70 mm, the Drilling Mud Pump BW160-10 delivers a theoretical flow rate of 160/107/67/44 L/min, ensuring smooth and consistent operation during drilling activities. Whether you need high flow rates for intensive drilling tasks or lower rates for more precise operations, this pump offers the versatility to meet your requirements.

The design of the BW160-10 Drilling Mud Pump prioritizes durability and performance, making it a reliable choice for demanding drilling projects. Its single acting piston mechanism ensures efficient pumping action, allowing for enhanced productivity and reduced downtime on the job site.

Whether you are working on a construction site, mining project, or any other drilling endeavor, the Drilling Mud Pump BW160-10 is a valuable asset that can help you achieve optimal results. Trust in the quality and performance of this pump to support your drilling operations and enhance overall efficiency.

Features:

• Product Name: Drilling Mud Pump
• Weight(Kg): 430
• Input power(kw): 16.2(diesel Engine) Or 11(motor)
• Overall dimensions(mm): 1450×745×970
• Rated Pressure (MPa): 2.5/4/6.5/10
• Theoretical Flow Rate(L/min): 160/107/67/44

Technical Parameters:

Applications:

Glorytek's HDD Mud Pump model BW160/10 is a versatile and reliable drilling mud pump that finds its application in various scenarios due to its exceptional performance and durability. Originating from China, this pump is designed to meet the highest standards, holding CE and SGS certifications.

With a cylinder liner diameter of 70mm and a piston stroke of 70mm, the BW160/10 pump offers a Theoretical Flow Rate of 160/107/67/44 L/min, making it suitable for a wide range of drilling operations. Whether it's horizontal directional drilling (HDD) or other drilling applications, this pump delivers consistent and efficient performance.

Customers can benefit from the BW160/10 pump's reliable operation and high-quality construction. The minimum order quantity is 1 set, priced at $3800 with standard shipping packaging. The delivery time is 30 days, and the payment terms require 100% advance payment by T/T.

Thanks to its supply ability of 100 sets per month, customers can rely on timely delivery of this HDD Piston Pump model. The input power options include 16.2 kW with a diesel engine or 11 kW with a motor, providing flexibility based on specific requirements.

Support and Services:

The Product Technical Support and Services for the Drilling Mud Pump include:

- Installation guidance and support

- Operation and maintenance training

- Troubleshooting assistance

- Spare parts availability and ordering

- Field service and repair services

Packing and Shipping:

Product Packaging:

The Drilling Mud Pump is carefully packaged in a sturdy cardboard box to ensure its safety during transportation. The pump is securely placed in the box with foam padding to prevent any damage.

Shipping:

We offer fast and reliable shipping services for the Drilling Mud Pump. Your order will be processed promptly and shipped using a reputable carrier to ensure timely delivery. You will receive a tracking number to monitor the status of your shipment.

FAQ:

Q: What is the brand name of this drilling mud pump?

A: The brand name is Glorytek.

Q: What is the model number of this drilling mud pump?

A: The model number is BW160/10.

Q: Where is this drilling mud pump manufactured?

A: It is manufactured in China.

Q: What certifications does this drilling mud pump have?

A: It has CE and SGS certifications.

Q: What are the payment terms for purchasing this drilling mud pump?

A: The payment terms are 100% advance payment by T/T.
