Durable BW Series Mud Pump for Pressure Applications 70mm Cylinder Liner Dia 430 Kg Weight

Product Description:

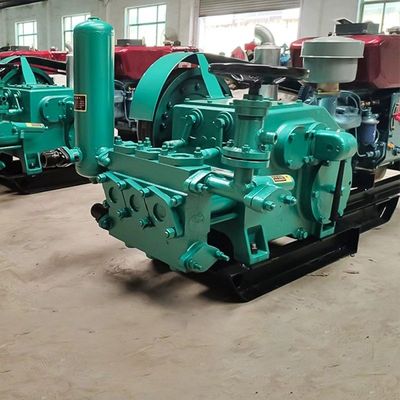

The BW3000 HDD Pump is a powerful and efficient drilling mud pump designed to meet the demanding needs of various drilling applications. With overall dimensions of 1450×745×970 mm, this pump is compact yet robust, making it easy to transport and operate in different environments.

Equipped with a 150 piston stroke mud pump, the BW3000 delivers a Theoretical Flow Rate of 160/107/67/44 L/min, ensuring optimal performance and productivity during drilling operations. The piston stroke of 70 mm enhances the efficiency and effectiveness of the pump, allowing for smooth and consistent pumping of drilling mud.

The BW3000 HDD Pump features a Three Cylinder Mud Pump design, providing a reliable and steady flow of mud at various rated pressures. With a rated pressure range of 2.5/4/6.5/10 MPa, this pump offers versatility and adaptability to different drilling requirements, ensuring consistent and high-quality results.

Powered by a 16.2 kW diesel engine or an 11 kW motor, the BW3000 is capable of delivering exceptional performance and reliability in challenging drilling environments. The input power options provide flexibility and convenience for operators, allowing them to choose the most suitable power source for their specific needs.

Features:

• Product Name: Drilling Mud Pump
• Weight(Kg): 430
• Theoretical Flow Rate(L/min): 160/107/67/44
• Piston Stroke(mm): 70
• Input power(kw): 16.2(diesel Engine) Or 11(motor)
• Rated Pressure (MPa): 2.5/4/6.5/10

Technical Parameters:

Applications:

Whether you are involved in construction, mining, geotechnical exploration, or horizontal directional drilling (HDD), the BW Series Mud Pump can meet your needs efficiently. Its compact design and powerful capabilities make it ideal for different drilling projects.

Manufactured in China, this HDD Drilling Mud Pump is certified with CE and SGS standards, ensuring its quality and safety. The minimum order quantity for this pump is 1 set, and it is priced at $3800. The packaging details include standard shipping packaging for secure transportation.

With a delivery time of 30 days, customers can expect to receive their orders promptly. The payment terms require 100% advance payment by T/T, providing a convenient transaction process. Additionally, the supply ability of this mud pump is 100 sets per month, ensuring availability for high-demand situations.

The Glorytek BW160/10 mud pump features a piston stroke of 70mm and a rated pressure ranging from 2.5MPa to 10MPa, offering versatility for different drilling requirements. The input power options include a 16.2kW diesel engine or an 11kW motor, providing flexibility based on the application needs.

Moreover, the theoretical flow rate of this model is 160/107/67/44 L/min, allowing for efficient performance during drilling operations. The BW160-10 model is known for its durability and effectiveness, making it a preferred choice for professionals in the drilling industry.

Support and Services:

The Product Technical Support and Services for the Drilling Mud Pump include:

- Troubleshooting assistance for any operational issues.

- Maintenance guidance to ensure optimal performance and longevity.

- Access to a team of experts for technical inquiries and support.

- Training programs to educate users on proper usage and care of the pump.

Packing and Shipping:

Product Packaging:

The Drilling Mud Pump is securely packaged in a sturdy cardboard box to prevent damage during transit. Each component is carefully wrapped and cushioned with protective materials to ensure safe delivery.

Shipping:

We offer fast and reliable shipping services for the Drilling Mud Pump. Orders are processed promptly, and we work with trusted carriers to deliver your product efficiently to your specified address. You can track your shipment using the provided tracking number for real-time updates on the delivery status.

FAQ:

Q: What is the brand name of the Drilling Mud Pump?

A: The brand name of the Drilling Mud Pump is Glorytek.

Q: What is the model number of the Drilling Mud Pump?

A: The model number of the Drilling Mud Pump is BW160/10.

Q: Where is the Drilling Mud Pump manufactured?

A: The Drilling Mud Pump is manufactured in China.

Q: What certifications does the Drilling Mud Pump have?

A: The Drilling Mud Pump is certified with CE and SGS.

Q: What is the minimum order quantity for the Drilling Mud Pump?

A: The minimum order quantity for the Drilling Mud Pump is 1 set.
