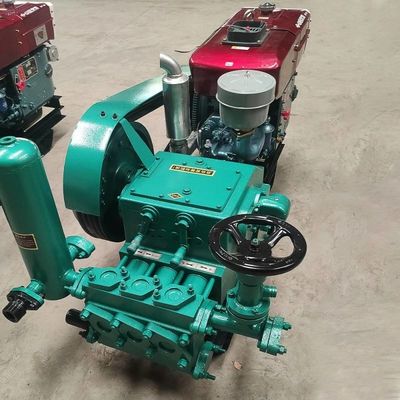

Theoretical Flow Rate Three Cylinder Mud Pump for Horizontal Directional Drilling

Product Description:

The 352KW Input Power Mud Pump is an essential piece of equipment for drilling operations, known for its efficiency and reliability. One such model is the BW160-10, a Big Mud Pump for Horizontal Drilling that offers exceptional performance.

Featuring a Cylinder Liner Dia of 70mm, the BW160-10 mud pump is designed to handle various drilling tasks with ease. Its Overall dimensions of 1450×745×970mm make it compact and easy to transport to different worksites, ensuring versatility and convenience.

When it comes to performance, the BW160-10 mud pump stands out with its impressive Theoretical Flow Rate of 160/107/67/44 L/min. This high flow rate allows for efficient drilling operations, enabling quick and precise completion of tasks.

Moreover, the BW160-10 mud pump is equipped with a Rated Pressure ranging from 2.5 to 10 MPa, providing the necessary power and force for different drilling requirements. Whether you need a lower pressure for specific tasks or a higher pressure for more demanding projects, this mud pump delivers consistent performance.

Overall, the BW160-10 mud pump is a reliable and versatile choice for drilling operations. Its sturdy construction, high flow rate, and adjustable pressure settings make it a valuable asset for HDD projects and other drilling applications.

Features:

• Product Name: Drilling Mud Pump
• Overall dimensions(mm): 1450×745×970
• Piston Stroke(mm): 70
• Weight(Kg): 430
• Model: BW160-10
• Theoretical Flow Rate(L/min): 160/107/67/44

Technical Parameters:

Applications:

Product Application Occasions and Scenarios for the Glorytek BW160/10 Drilling Mud Pump:

The Glorytek BW160/10 Drilling Mud Pump, also known as a Three Cylinder Mud Pump, is a versatile and essential tool for various drilling operations. Its reliable performance and durability make it suitable for a wide range of applications in the drilling industry.

1. Geotechnical Drilling: The BW160/10 Mud Pump is ideal for geotechnical drilling projects where soil and rock samples need to be collected for analysis. Its high pressure and flow rate capabilities ensure efficient drilling operations.

2. Water Well Drilling: The BW160/10 is well-suited for water well drilling operations, providing the necessary power and performance to drill deep into the ground and access water sources.

3. Horizontal Directional Drilling: As a Big Mud Pump for Horizontal Drilling, the BW160/10 excels in providing the required mud circulation and pressure control for horizontal directional drilling projects.

4. Oil and Gas Exploration: The BW160/10 Mud Pump is also used in oil and gas exploration activities, helping to maintain wellbore stability and facilitate the drilling process in challenging environments.

5. Mining Operations: In mining operations, the BW160/10 Mud Pump assists in various drilling activities, such as exploration drilling, production drilling, and dewatering operations.

With its compact design and robust construction, the Glorytek BW160/10 Drilling Mud Pump is a reliable and efficient solution for demanding drilling applications. Its features such as the Three Cylinder design, Cylinder Liner Dia of 70mm, and input power of 16.2kW (diesel engine) or 11kW (motor) make it a versatile and powerful tool for various drilling scenarios.

Ordering this BW3000 Drilling Mud Pump from Glorytek is easy, with a minimum order quantity of 1 set and a price of $3800. The product comes with CE and SGS certifications, ensuring quality and compliance with international standards. Packaging details include standard shipping packaging, and delivery time is estimated at 30 days. Payment terms require 100% advance payment by T/T, and the supply ability is 100 sets per month. The overall dimensions of the BW160/10 Mud Pump are 1450×745×970mm, making it a compact yet powerful solution for your drilling needs.

Support and Services:

Product Technical Support and Services:

Our Drilling Mud Pump product comes with comprehensive technical support to assist you with any questions or issues you may encounter. Our team of experts is available to provide guidance on installation, operation, and troubleshooting of the pump.

Additionally, we offer services such as maintenance training, on-site support, and repair services to ensure that your Drilling Mud Pump operates efficiently and effectively throughout its lifespan.

Packing and Shipping:

Product Packaging for Drilling Mud Pump:

The Drilling Mud Pump is carefully packaged in a sturdy cardboard box to ensure safe delivery. The pump is securely placed within the box and surrounded by protective padding to prevent any damage during transit.

Shipping Information:

We offer worldwide shipping for the Drilling Mud Pump. Orders are typically processed within 1-2 business days. Once shipped, you will receive a tracking number to monitor the status of your delivery. Shipping times may vary depending on your location.

FAQ:

Q: What is the brand name of this Drilling Mud Pump?

A: The brand name is Glorytek.

Q: What is the model number of this Drilling Mud Pump?

A: The model number is BW160/10.

Q: Where is this Drilling Mud Pump manufactured?

A: It is manufactured in China.

Q: What certifications does this Drilling Mud Pump have?

A: It is certified with CE and SGS.

Q: What is the minimum order quantity for this Drilling Mud Pump?

A: The minimum order quantity is 1 set.
