Drilling Mud Pump for Smooth Drilling Operations 16.2kw

Product Description:

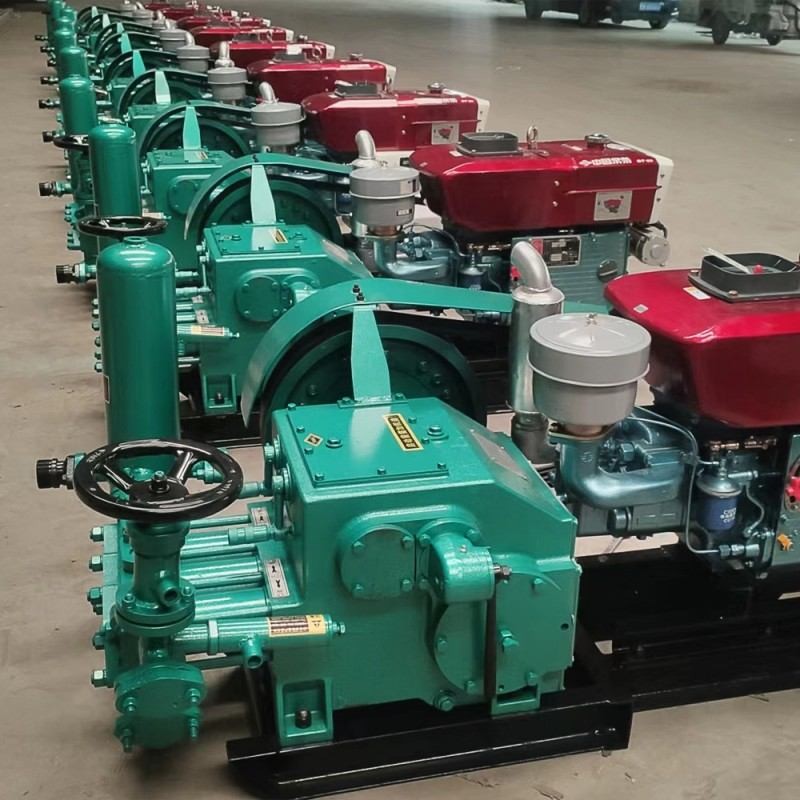

The Drilling Mud Pump is a powerful and reliable pump designed for horizontal drilling operations. With overall dimensions of 1450×745×970 mm and a weight of 430 kg, this pump is a robust and sturdy equipment suitable for various drilling applications.

Powered by a 16.2 kW diesel engine or an 11 kW motor, this Single Acting Piston Pump delivers exceptional performance and efficiency in operation. The choice of input power options provides flexibility for different job requirements, ensuring optimal functionality in diverse working conditions.

The Theoretical Flow Rate of the Drilling Mud Pump ranges from 160 L/min to 44 L/min, offering versatility in handling varying volumes of drilling fluids. Whether you need a high flow rate of 160 L/min or a lower rate of 44 L/min, this pump can meet your specific needs effectively.

Equipped with a Rated Pressure ranging from 2.5 MPa to 10 MPa, the Drilling Mud Pump ensures reliable and consistent pressure output for efficient drilling operations. The pump can deliver pressures of 2.5 MPa, 4 MPa, 6.5 MPa, and 10 MPa as per the requirements of the drilling process, making it a versatile and adaptable equipment for different projects.

Designed as a BW mud pump for HDD (Horizontal Directional Drilling), this Big Mud Pump is engineered to deliver high performance and durability in challenging drilling environments. Whether used in construction, mining, or other industrial applications, this pump is a reliable and essential tool for ensuring smooth and efficient drilling operations.

Features:

• Product Name: Drilling Mud Pump
• Input power(kw): 16.2 (diesel Engine) Or 11 (motor)
• Weight(Kg): 430
• Piston Stroke(mm): 70
• Overall dimensions(mm): 1450×745×970
• Rated Pressure (MPa): 2.5/4/6.5/10

Technical Parameters:

Applications:

Glorytek's HDD Drilling Mud Pump model BW160/10 is a versatile and reliable pump designed for various drilling applications. With its origins in China, this pump is certified with CE and SGS, ensuring high quality and performance standards.

The BW160/10 is ideal for a wide range of product application occasions and scenarios, making it a popular choice among drilling professionals. Its minimum order quantity is just 1 set, with a competitive price of $3800. The packaging details include standard shipping packaging, and the delivery time is 30 days from the date of order placement.

This HDD Mud Pump has a payment term of 100% advance payment by T/T, and boasts a supply ability of 100 sets per month. The pump's cylinder liner diameter is 70mm, and it has an input power of 16.2 kW with a diesel engine or 11 kW with a motor. The pump weighs 430 kg, making it easy to transport and handle on drilling sites.

The Glorytek BW160/10 model features a rated pressure of 2.5/4/6.5/10 MPa, suitable for various drilling tasks. Its robust design and efficient performance make it an excellent choice for HDD Piston Pump operations. The model BW160-10 is known for its durability and reliability, providing consistent pumping power in demanding drilling environments.

Support and Services:

Our Product Technical Support and Services for the Drilling Mud Pump include:

- Comprehensive troubleshooting assistance for any technical issues

- Guidance on proper maintenance and regular service schedules

- Access to product manuals and documentation for reference

- Recommendations for spare parts and replacements

- Training programs for operators and maintenance personnel

Packing and Shipping:

Product Packaging:

The Drilling Mud Pump is carefully packaged in a sturdy cardboard box to ensure safe transportation and delivery. The pump is securely placed within the box with appropriate padding to prevent any damage during shipping.

Shipping:

Once your order is placed, the Drilling Mud Pump will be shipped using a reliable courier service. You will receive a tracking number to monitor the status of your delivery. Please provide the correct shipping address to ensure prompt and accurate delivery of the product.

FAQ:

Q: What is the brand name of the Drilling Mud Pump?

A: The brand name of the Drilling Mud Pump is Glorytek.

Q: What is the model number of the Drilling Mud Pump?

A: The model number of the Drilling Mud Pump is BW160/10.

Q: Where is the Drilling Mud Pump manufactured?

A: The Drilling Mud Pump is manufactured in China.

Q: What certifications does the Drilling Mud Pump have?

A: The Drilling Mud Pump is certified with CE and SGS.

Q: What is the minimum order quantity for the Drilling Mud Pump?

A: The minimum order quantity for the Drilling Mud Pump is 1 set.
