114mm Heavy Duty Drill Rod/Pipe for Blasting Holes

1 piece
MOQ
To be negotiated
Price
114mm Heavy Duty Drill Rod/Pipe for Blasting Holes
Features Gallery Product Description Request A Quote
Features
Specifications
Diameter Of Drill Rod: 1
Length: 3
Wall Thickness: 5
Thread: 3
Welding Performance: G
High Light: W
Basic Infomation
Place of Origin: China
Brand Name: GLORYTEK
Certification: CE,SGS,TUV
Model Number: outside diameter 114mm
Payment & Shipping Terms
Packaging Details: standard exporting packing
Delivery Time: 5-7 workdays
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 2000 sets per month
Product Description
114mm Heavy Duty Drill Rod/Pipe for Blasting Holes
Product Description
Water well drilling tools drill rod drill pipe 114mm
Description
The drill pipe joint is an integral part of the drill pipe, divided into male joints and female joints, connected to both ends of the drill pipe body.
114mm water well drill rod is made of alloy steel. There are threads (coarse thread) on the joint, which are used to connect each single drill pipe. The thread of the drill pipe joint is a tapered pipe thread with a sealing shoulder. The shoulder surface is tightened to seal, and the thread is only used for connection.
To enhance the connection strength of the joint, it is necessary to increase the wall thickness of the pipe body at the joint. According to the thickening method, it can be divided into three types: inner thickening, outer thickening, and inner and outer thickening.
Specifications
Size (inch) Outside Diameter (mm) Wall Thickness (mm) Thread Length (mm)
4 1/2 114 8.56 API 3 1/2REG 500-6000

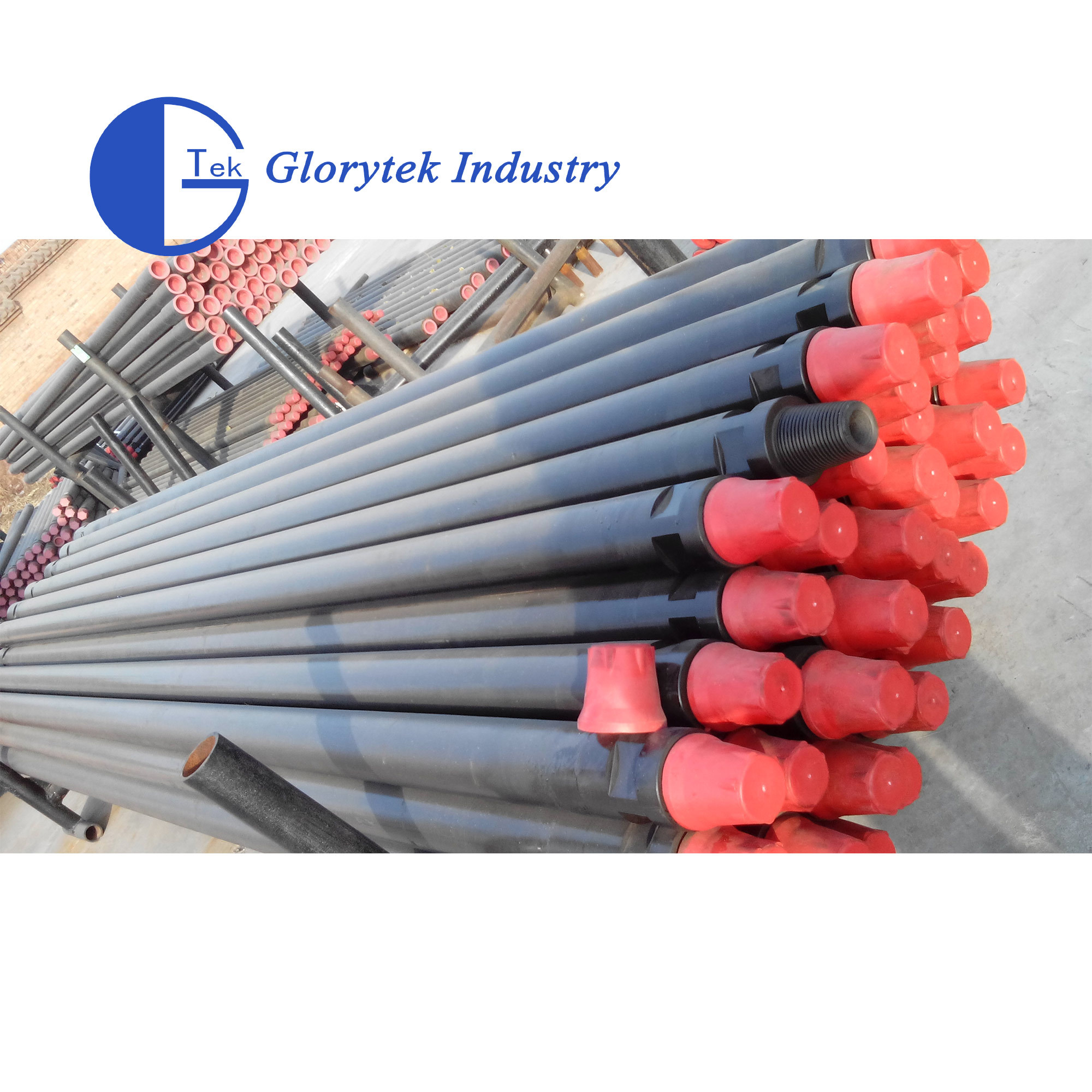

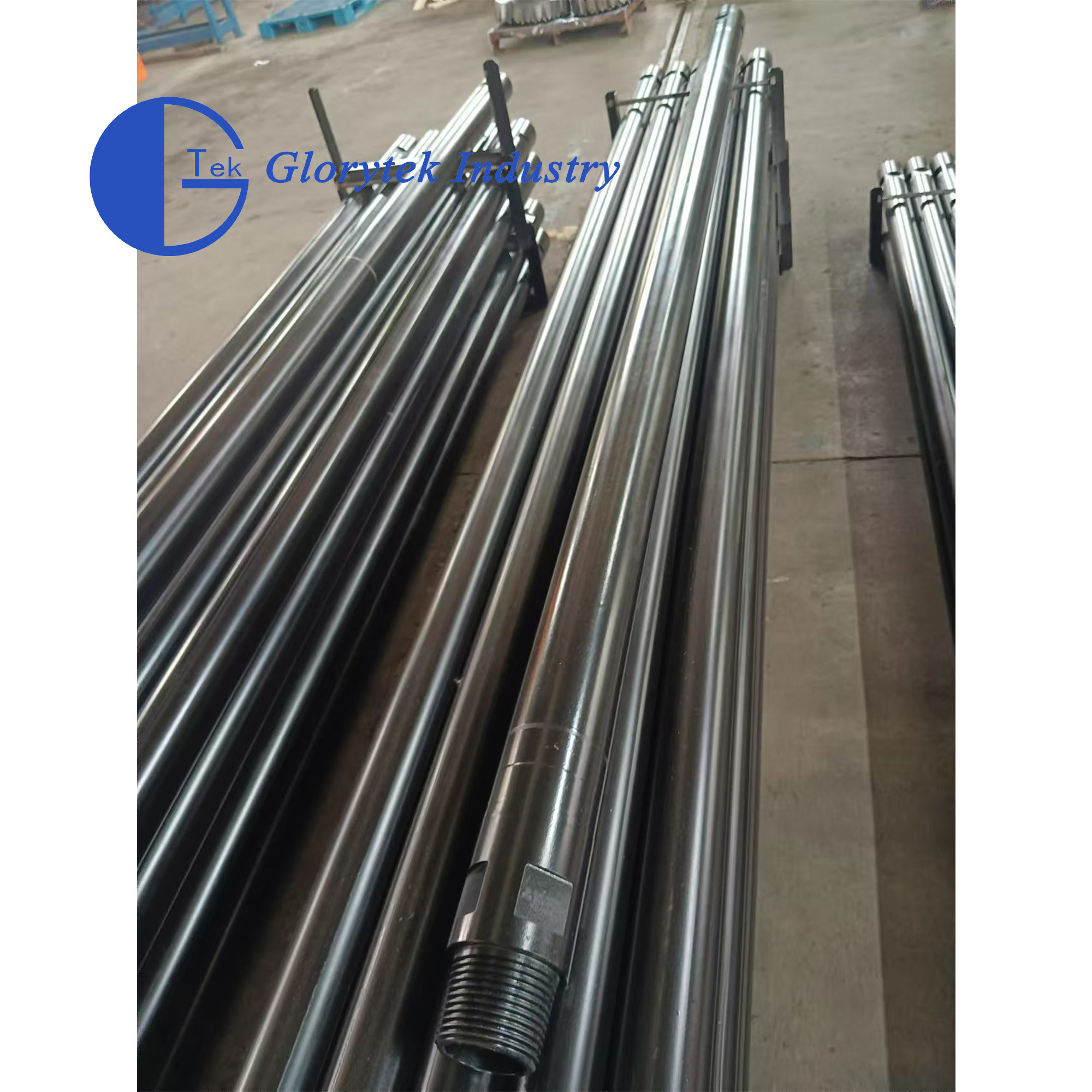

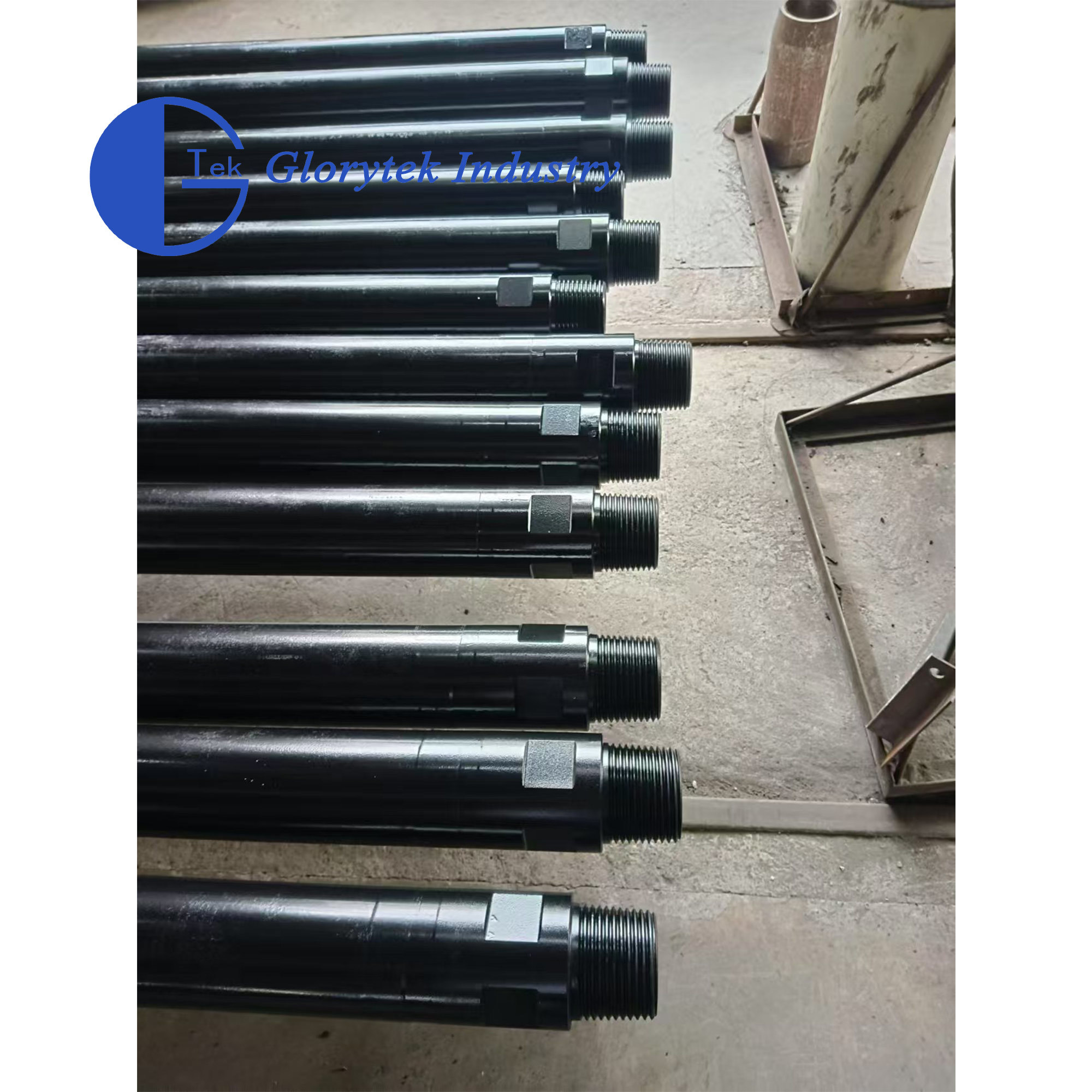

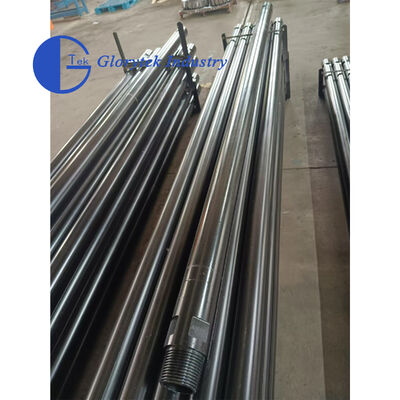

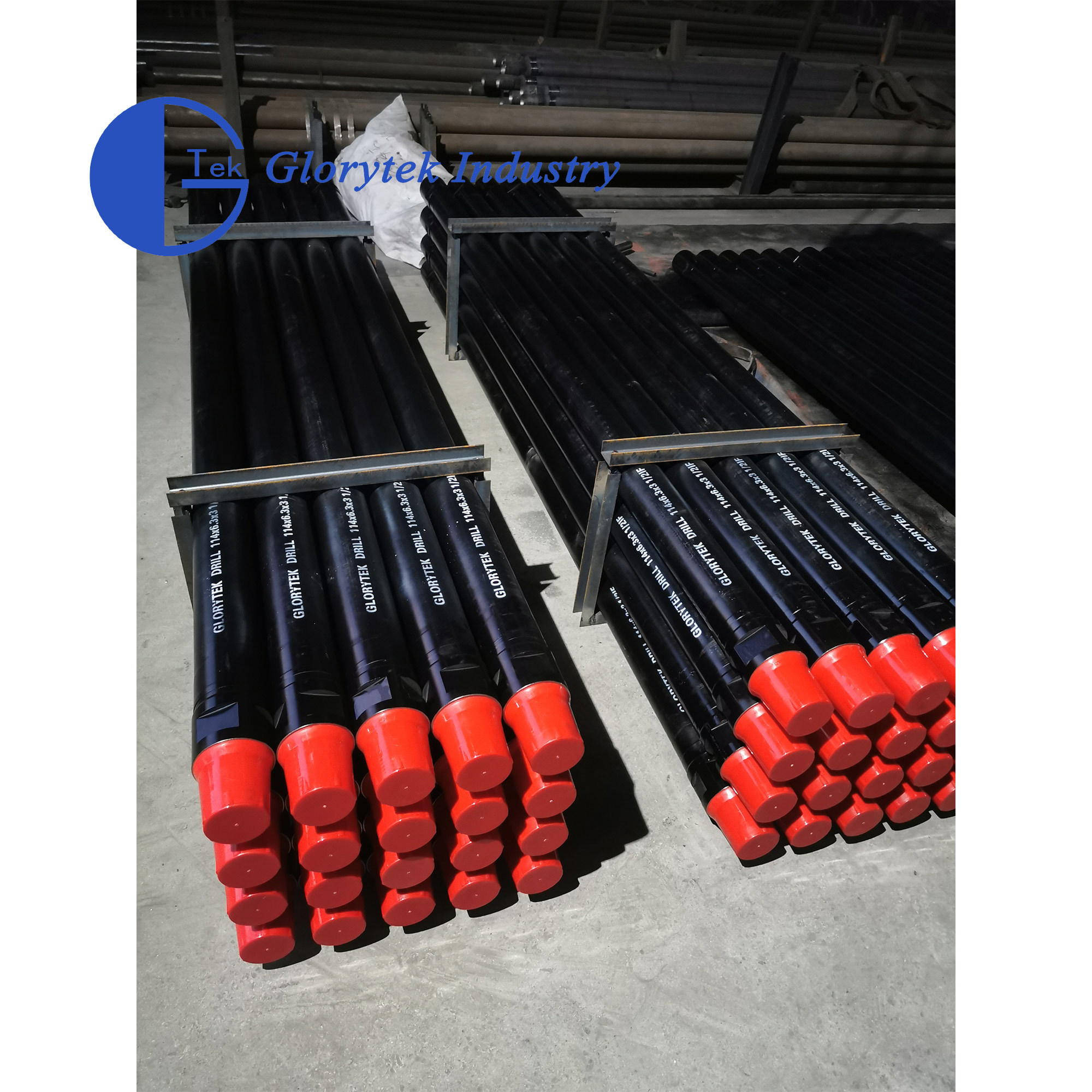

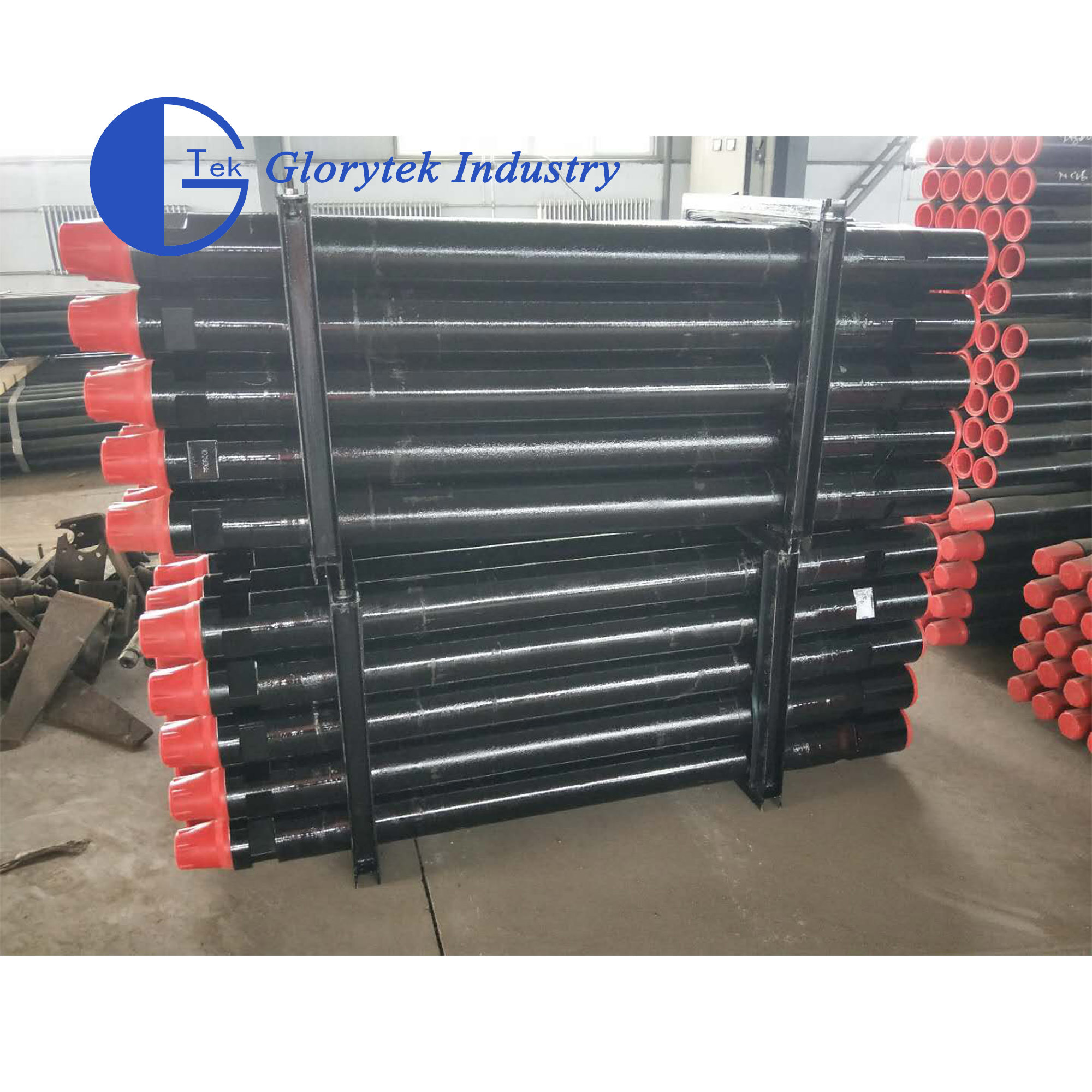

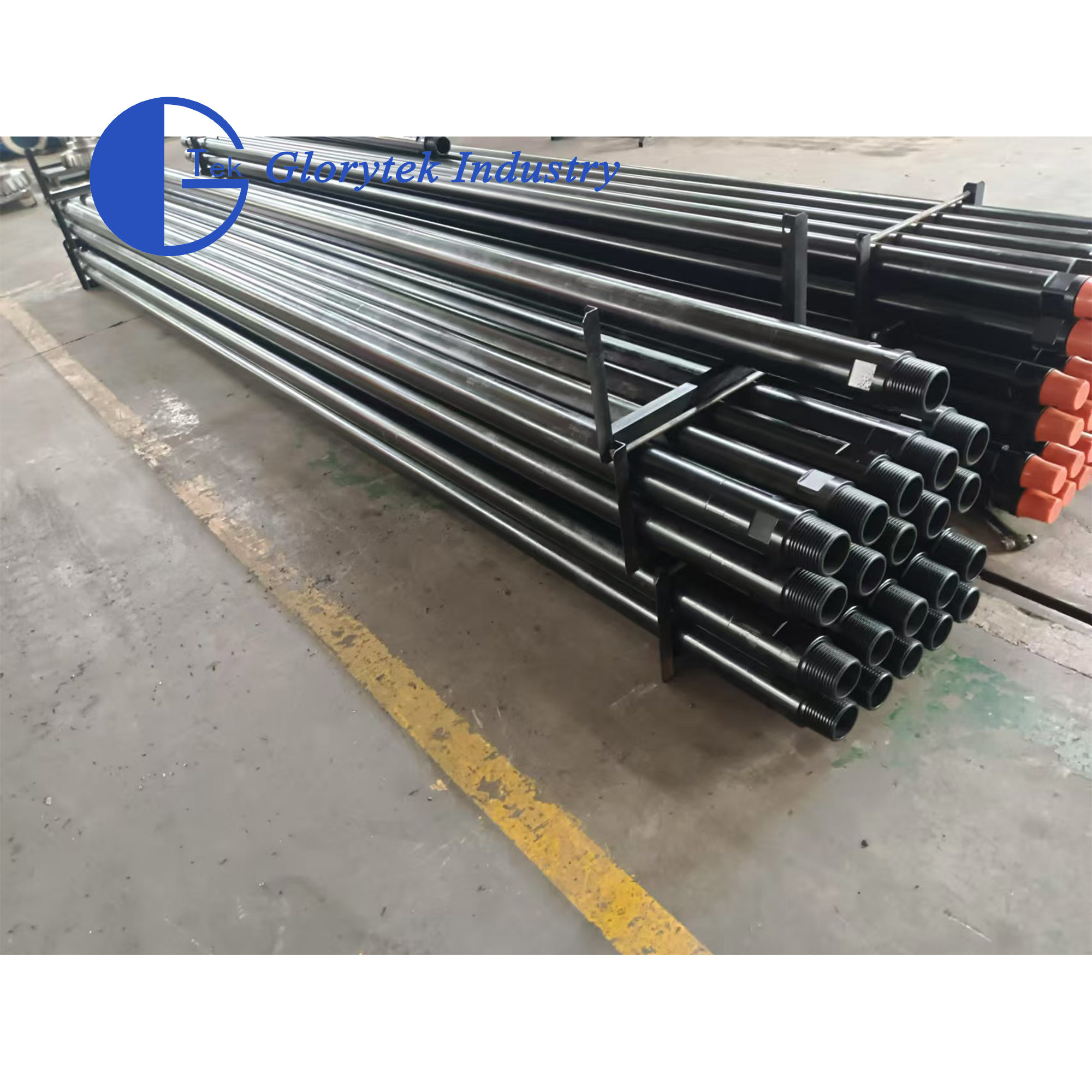

Product Photos
114mm Heavy Duty Drill Rod/Pipe for Blasting Holes 0
Related Product
114mm Heavy Duty Drill Rod/Pipe for Blasting Holes 1
Loading and Unloading Instructions
  • Before unloading the drill pipe, make sure that the protective wire is intact and tightened.
  • Avoid rough loading and unloading, because it may drop the drill pipe out of the pit.
  • When unloading the drill pipe, do not drop it, and do not let the ends of the drill pipe collide, because even with the protective wire, the thread connection may be damaged.
  • The unloaded drill pipes must be neatly stacked together.
Company Profile
114mm Heavy Duty Drill Rod/Pipe for Blasting Holes 2
Glorytek Industry (Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients' requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees. Our products have been exported more than 60 countries around the world.
Frequently Asked Questions
Q: Are you a factory or a trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: Are your products qualified?
A: Yes, our products all have gained CE certificate, and we have specialized quality inspection department for checking every item before leaving our factory.
Q: What is your MOQ?
A: No requirement for testing and trial order.
