Name: 75kW BW1000/10 High-Pressure Triplex Mud Pump for Horizontal Directional Drilling (HDD)
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: BW1000/10
Price: 42,250.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: BW1000/10 Horizontal Triplex Single-Acting Piston Mud Pump 1000 L/min 10 MPa High-Pressure HDD Drilling Mud Pump

Keyword: HDD Drilling Mud Pump

Model Number: BW1000/10

Flow Rate: 1000l/min

Overall Dimension(L×W×H) (mm): 2400×1000×1250

Weight (kg): 1880

Basic Infomation

Place of Origin: China

Brand Name: GLORYTEK

Model Number: BW1000/10

Payment & Shipping Terms

Packaging Details: standard exporting packing

Delivery Time: 10-15 days

Payment Terms: T/T,L/C,Western Union,MoneyGram

Supply Ability: 100sets/month

Gallery

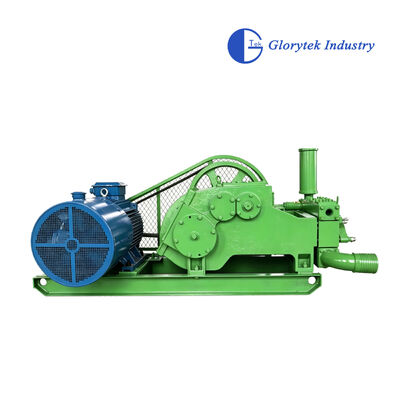

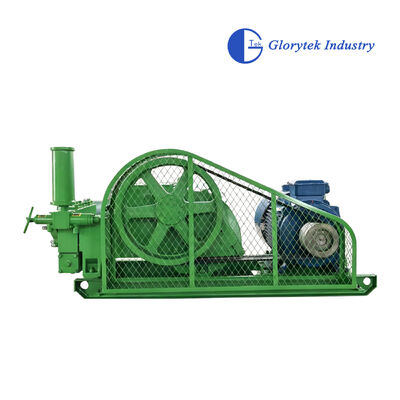

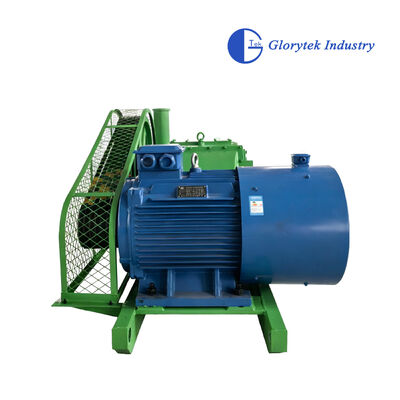

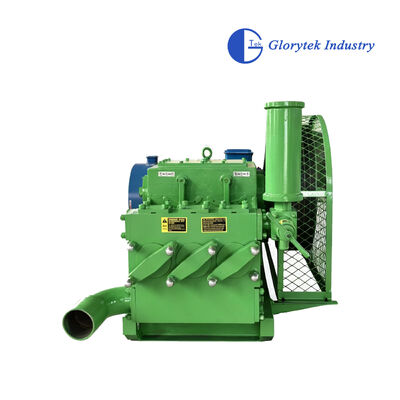

75kW BW1000/10 High-Pressure Triplex Mud Pump for Horizontal Directional Drilling (HDD)

Product Description

BW1000/10 Triplex Mud Pump For HDD Drilling

75kW BW1000/10 High-Pressure Triplex Mud Pump for Horizontal Directional Drilling (HDD) 0

Technical Parameter

Type:BW1000/10	Horizontal three cylinder reciprocating single acting piston pump
Stroke (mm)	140
Cylinder bore diameter (mm)	115
Pump speed (r/min)	232	155	120	79
Theoretical Flow Rate(L/min)	1000	670	520	340
Rated Pressure(MPa)	4	6	8	10

Input Power(Kw)	75
Diameter of inlet pipe (mm)	Φ127
Drain pipe diameter (mm)	Φ64
Overall Dimension(LWH)(mm)	240010001250
Weight(Kg)	1880

Company Profile

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.

Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.

We believes that good quality can give us survival, thus we only provide you top products.All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.

All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment.Every machine will be strictly examined before delivery.

FAQ

Q: How can we choose a suitable mud pump?
A: We normally recommend a suitable model according to flow rate, pressure, power and application.
Q: Is it can working with our water well drilling rig?
A: Yes, it can work with water well drilling rig.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C, Credit Card, West Union etc.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 15-20 days after receiving payment, and about 7-10 days if in stock.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
