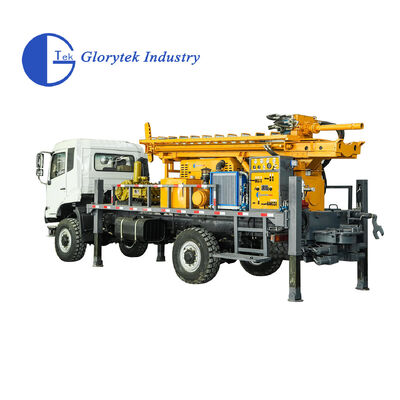

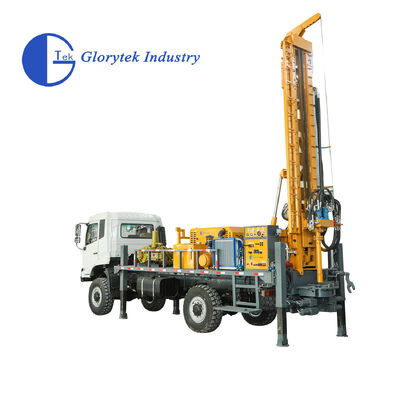

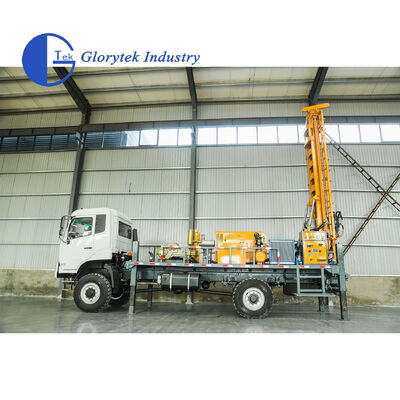

Full Hydraulic Dongfeng 4X4 Truck Borehole Water Well Drill/Drilling Rig, 500m Depth, 105-350mm Hole Diameter

The GL500T water well drilling rig is a high-performance machine suitable for medium-to-large-scale drilling projects. Its technical specifications include a drilling diameter range of 105-350 mm, meeting drilling requirements in diverse geological conditions.

Its maximum drilling depth reaches 500 meters, making it suitable for deep well operations.

The rig operates with an air pressure of 1.05-4.5 MPa and air consumption of 16-60 cubic meters per minute.

It boasts a lifting capacity of 28 tons and a feed stroke of 6,600 mm, ensuring efficient and stable drilling operations.

Its rotational speed is adjustable between 75 and 150 rpm, with a torque of 13,000 to 15,000 Nm. Powered by a 194 kW engine, the rig weighs 16,800 kg. Drill pipe lengths range from 3 to 6 meters, and its overall dimensions are 8,300 * 2,500 * 3,150 mm (L * W * H).

Its overall design balances power performance with operational flexibility.

The GL500T water well drilling rig is designed specifically for deep well drilling. With a drilling depth of 500 meters and a hole diameter range of 105-350mm, it is suitable for:

• Civilian/industrial deep water well construction (such as rural drinking water projects and mining water supply);
• Ground-source heat pump system installation holes;
• Hydrogeological exploration monitoring wells
• Rock drilling: High torque of 13,000-15,000 N·m is suitable for drilling in hard rock formations (such as granite and basalt);
• Large-scale infrastructure projects: 28-ton lifting capacity supports heavy drill pipe operations. Suitable for bridge pile foundations and high-rise building foundations.
• Deepwater well drilling in arid areas.
• Urban underground space exploration (subway tunnel geological survey).
• Geothermal resource development (medium- to deep-layer geothermal well construction).
• With a 194kW power system and a 6,600mm feed stroke, this equipment maintains efficient operation even in complex geological conditions, making it particularly suitable for projects requiring large-diameter, deep-hole drilling.

We provide technical support and service for Water Well Drill Rig. Our service includes:

• Providing technical support and consultation for product installation and commissioning.
• Providing product operation and maintenance training.
• Providing quick response to solve customer's problems.
• Providing regular maintenance and inspection services.
• Providing product upgrade services when applicable.

Packaging and Shipping for Water Well Drill Rig:

We will ensure the packaging materials are secure and fit for a long-distance shipment. The Water Well Drill Rig will be packed in containers.

It is normally load with 40FR container.

Q: What is the Brand Name of the Water Well Drill Rig?

A: The Brand Name of the Water Well Drill Rig is Glorytek.

Q: What is the Model Number of the Water Well Drill Rig?

A: The Model Number of the Water Well Drill Rig is GL400T.

Q: Where is the Water Well Drill Rig produced?

A: The Water Well Drill Rig is produced in China.

Q: What certifications does the Water Well Drill Rig have?

A: The Water Well Drill Rig is certified by SGS, CE, and TUV.

Q: How many Water Well Drill Rigs can be produced per month?

A: We can produce up to 20 sets of Water Well Drill Rigs per month.
