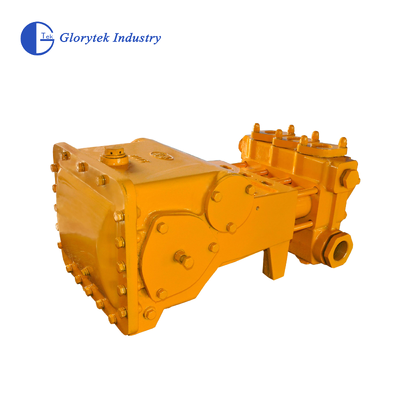

GCM300-7 Mud Pump
Product Description:
This is a horizontal three- cylinder single- acting reciprocating piston pump. Wide flow-rate adjustment is achieved via mechanical speed change. Designed for drilling requirements, the pump features a simple and compact structure for easy disassembly, assembly and maintenance. Its light weight and small footprint facilitate convenient relocation.
Pump Purpose and Scope of Application:
To meet customer requirements, we have developed the GCM300/7 mud pump adopting advanced American technology. During core drilling, it can deliver flushing fluid (mud or clear water) into the borehole for circulation. It carries rock cuttings back to the ground, keeps the hole bottom clean, cools and lubricates drill bits and drilling tools, and protects the borehole wall from collapse. It can also serve as a power source to drive impactors (screw or worm gear) to assist drilling. Thanks to its compact size and easy relocation, it is particularly suitable for underground coal- mine applications. Therefore, this pump is one of the key pieces of equipment for modern drilling operations.
Technical Parameters:
| Type |
Horizontal three-cylinder single-acting
reciprocating piston pump |
| Stroke(mm) |
70mm(2.75 Inches) |
| Cylinder Bore (mm) |
70mm(2.75 Inches) |
| Input Speed(r/min) |
690 |
800 |
900 |
1275 |
1350 |
| Flow Rate (L/min) |
154 |
179 |
201 |
285 |
300 |
| Rated Pressure (MPa) |
7 |
| Volumetric Efficiency(%) |
95 |
| Overall Efficiency(%) |
90 |
| Power Unit |
A2F80W6.1 Hydraulic Motor |
| Suction Lift (m) |
2.5 |
| Suction Pipe Diameter(mm) |
64 |
| Discharge Pipe Diameter (mm) |
32 |
| Overall Dimensions (mm)(L×W×H) |
760*550*400 |
| Mass (kg) |
208 |
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
We believes that good quality can give us survival, thus we only provide you top products.All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.
All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment.Every machine will be strictly examined before delivery.
FAQ:
Q: What is the brand name of this Drilling Mud Pump?
A: The brand name is Glorytek.
Q: What is the model number of this Drilling Mud Pump?
A: The model number is GCM300-7.
Q: Where is this Drilling Mud Pump manufactured?
A: It is manufactured in China.
Q: What certifications does this Drilling Mud Pump have?
A: It is certified with CE and SGS.
Q: What is the minimum order quantity for this Drilling Mud Pump?
A: The minimum order quantity is 1 set.
