F-300 Triplex Single-Acting
Mud Pump

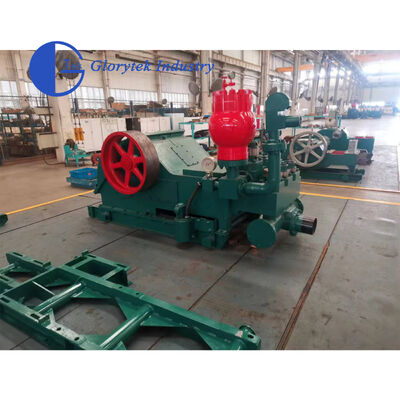

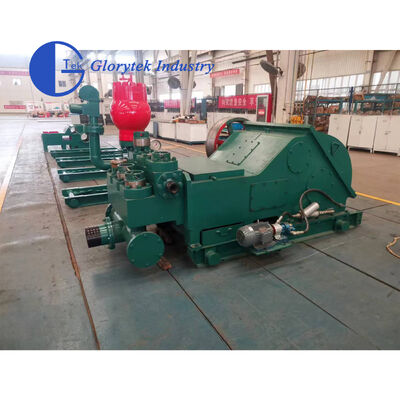

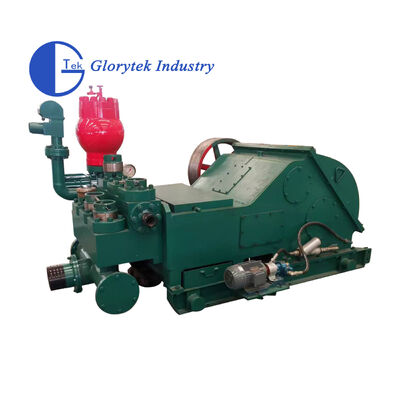

Product Picture
Technical Parameter
| Technical Specifications |
| Model |
F-300 |
| Type |
Horizontal triplex single-acting mud pump |
Piston
diameter
(mm) |
110 |
120 |
130 |
140 |
150 |
160 |
170 |
180 |
Displacement
(L/S) |
11.2 |
13.4 |
15.7 |
18.2 |
21 |
23.7 |
26.8 |
30 |
Pressure
(MPa) |
16.8 |
14 |
12 |
10.3 |
9 |
7.9 |
7 |
6.3 |
Input speed
(r/min) |
696 |
Pump speed
(spm) |
135 |
Suction pump
dia. |
Φ203 |
Discharge
pump dia. |
Φ76 |
Piston Stroke
(mm) |
175 |
| Input Power |
Diesel
Engine |
280 kW (380 HP) |
Electric
Motor |
220 kW (300 HP) |
Dimension
(mm) |
3190×1990×1820 |
| Weight (kg) |
6250 |
F series mud pump is applicable to the requirement of high pump pressure in oil field and high displacement technology of well drilling with its solid and compact structure, small volume and outstanding operation performance.
◆F series mud pump has long stroke maintaining operation at lower frequency resulting in enhancing the performance of giving water effectively and prolonging the lifetime of the consumable hydrokinetic parts, the air-suction kit is advanced in structure and reliable at operation to reach the optimized absorbing target of air suction into line pipe.
◆F series pump powering side adopts the combined lubrication id forced and flashing lubrication featured with reliable lubrication and adding the operation lifetime of powering part.
◆This series pump is widely used in oil fields and other lines of industrial and mining enterprises, operation ofdrilling well and well repairing in oil field and other lines of industrial and mining enterprises, operation of drilling well and well repairing etc.
Packing
Related Product
Our Company & Service
Glorytek Industry (Beijing)Co.,Ltd., located inBeijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
Customer photos
FAQ
Q: What is the model and type of this mud pump
A:This is the F-300 horizontal triplex single-acting mud pump designed for oil and gas drilling rigs
Q: What are the main performance parameters of the F-300 mud pump
A:The pump delivers a displacement of 11.2 to 30 liters per second with a maximum pressure range of 6.3 to 16.8 MPa and a pump speed of 135 strokes per minute
Q: What are the available power drive options for this pump
A:The F300 mud pump can be equipped with either a 380 horsepower diesel engine or a 300 horsepower electric motor depending on your drilling site requirements
Q: What is the piston diameter and stroke length
A:The pump supports piston diameters ranging from 110mm to 180mm and features a stroke length of 175mm
Q: What are the suction and discharge port sizes
A:The suction port diameter is Φ203mm and the discharge port diameter is Φ76mm ensuring efficient drilling fluid circulation
Q: How much does the F-300 mud pump weigh
A:The total weight of the pump unit is approximately 6250 kilograms making it a heavy duty industrial drilling equipment
Q: What applications is this mud pump suitable for
A:This triplex single-acting mud pump is widely used in oil and gas well drilling drilling rig fluid circulation and solids control systems
Q: What is the maximum pressure this pump can handle
A:Depending on the piston diameter selected the pump can operate at pressures between 6.3 MPa and 16.8 MPa
Q: Is this pump suitable for high pressure drilling operations
A:Yes the F-300 is designed as a high pressure drilling mud pump capable of handling demanding oilfield drilling conditions
Q: Can this pump be customized for specific drilling rig configurations
A:Yes the pump offers flexible configuration options including diesel or motor drive and adjustable piston diameters to match different drilling requirements
