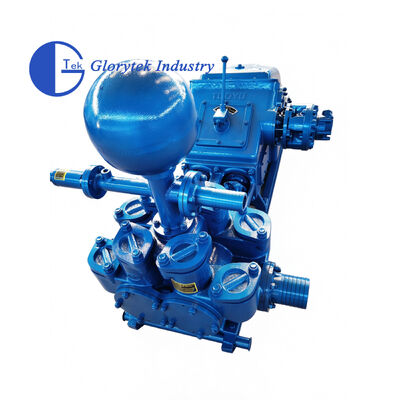

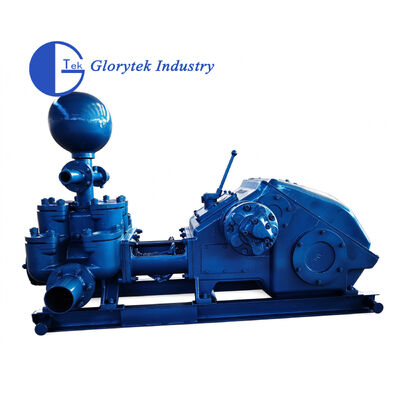

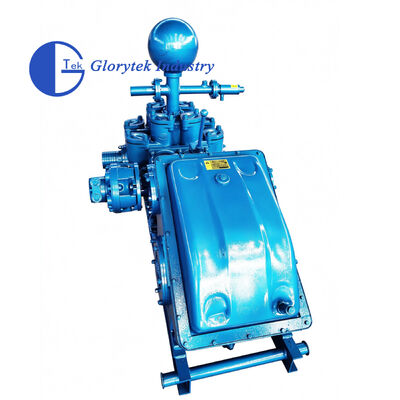

BW850/2 Mud Pump
1.Description:
BW850-2 Mud Pump is a horizontal reciprocating piston pump for geological drilling. It supplies flushing fluid to boreholes and works well with large diameter drilling rigs for different drilling depths. This mud pump features simple compact structure light weight and long-life wear parts. It adopts bimetallic liner to extend service life greatly. Widely used in HDD drilling oil and gas field drilling mining and water well drilling projects to improve drilling efficiency and borehole quality.
2.Application Industry:
HDD drilling, Oil and Gas field drilling, Mining, Water well drilling
3.Structure Features
a.Horizontal double cylinder & three cylinder, single-acting&double-acting reciprocating piston pump.
b.Simple and compact structure, light weight, long service life of wearing parts, easy operation.
c.Extending service life of pump greatly by using bi-metal liner.
4.Specifications:
| Type:BW850/2 |
Horizontaldoublecylinderreciprocatingdoubleactionpistonpump |
| Cylinder Liner Dia (mm) |
150 |
| Piston Stroke (mm) |
180 |
| Theoretical Flow Rate (L/min) |
600 |
850 |
| Rated Pressure (MPa) |
3 |
2 |
| Strokes Per Minute |
58 |
82 |
| ID of Suction Pipe (mm) |
127 |
| ID of Discharge Pipe (mm) |
64 |
| Input Rotating Speed (r/min) |
470 |
| Input Power (kW) |
40 |
| Overall Dimension(L×W×H) (mm) |
2000×1030×1400 |
| Weight (kg) |
1500 |
|
|
5.Packing and Shipping
6.Related Product:
drilling tools:drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit etc.
7.Company Profile
Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and engineers that enable us to complete all the assigned projects successfully as per clients; requirements.
Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.
