Full Hydraulic Truck Water Well Drilling Rig, 500m Depth, 105-350mm Diameter Range

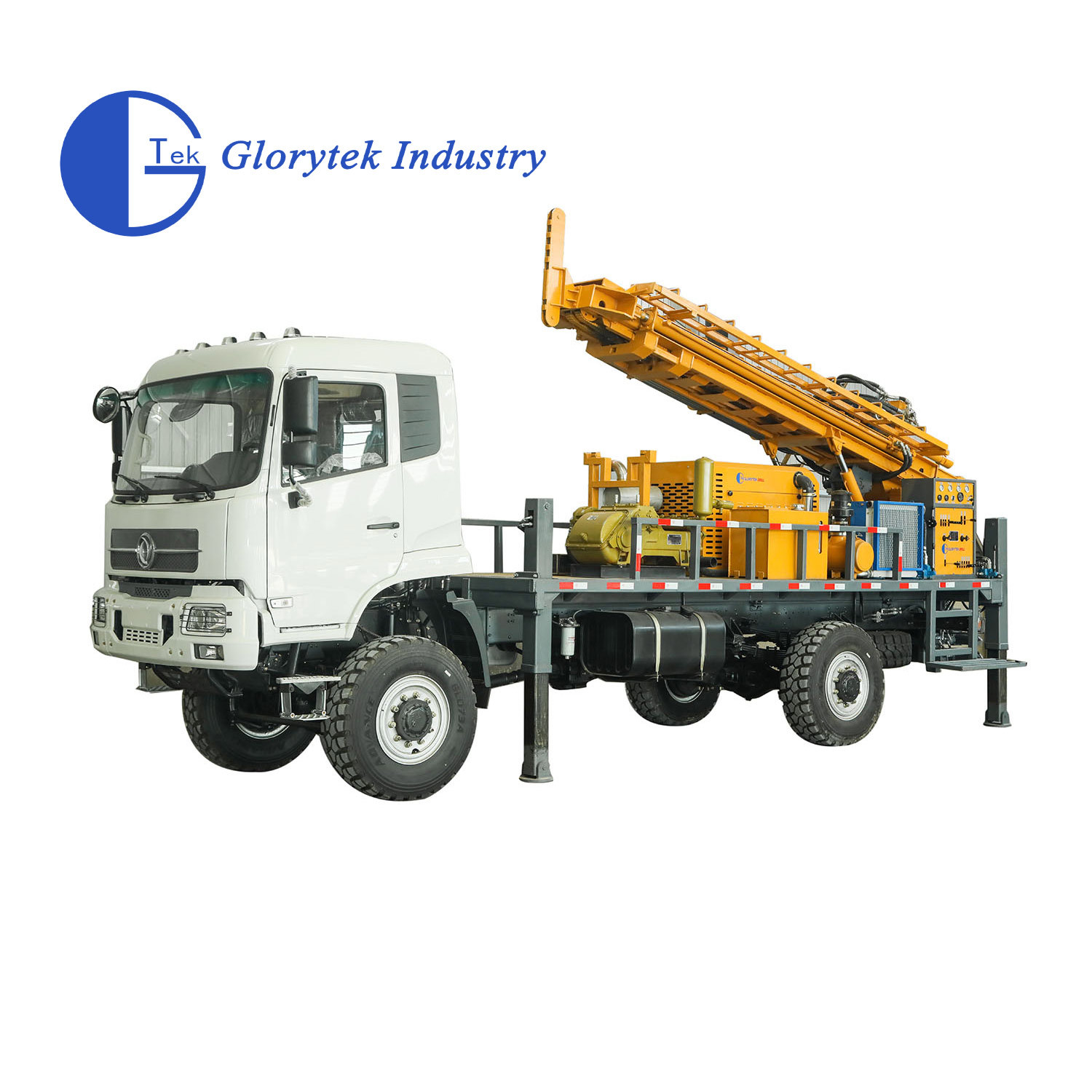

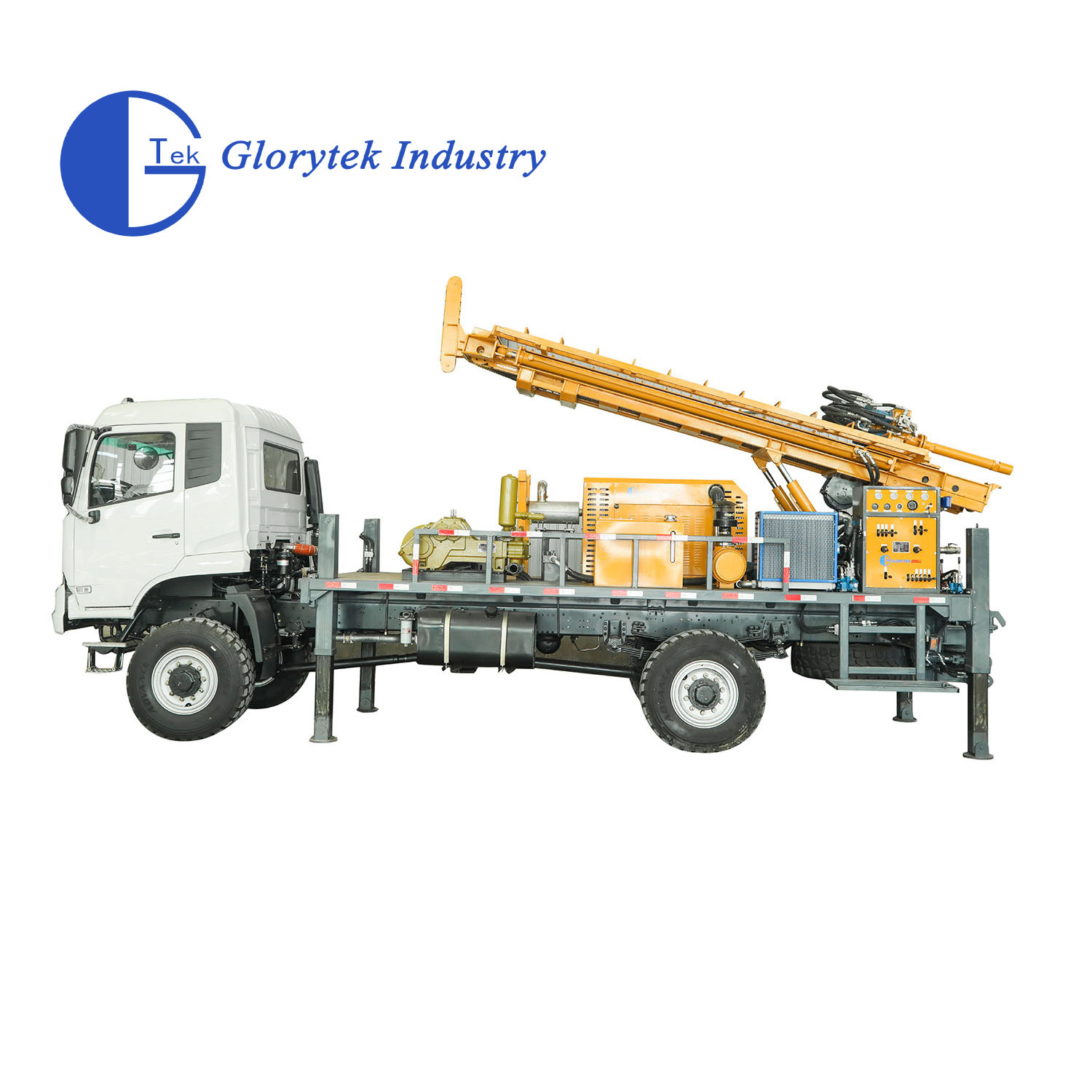

The GL500T water well drilling rig is a high-performance, truck-mounted machine engineered for medium-to-large-scale drilling projects. It handles a drilling diameter range of 105–350 mm, meeting the demands of diverse geological conditions, and reaches a maximum drilling depth of 500 meters for deep well operations.

The rig operates at an air pressure of 1.05–4.5 MPa with air consumption of 16–60 m³/min. It delivers a lifting capacity of 28 tons and a feed stroke of 6,600 mm, ensuring efficient and stable drilling. Rotational speed is adjustable between 75 and 150 rpm, with torque ranging from 13,000 to 15,000 N·m. Powered by a 194 kW engine and weighing 16,800 kg, the rig accommodates drill pipe lengths of 3 to 6 meters and measures 8,300 × 2,500 × 3,150 mm (L × W × H). Its overall design balances power performance with operational flexibility.

The GL500T water well drilling rig is designed specifically for deep well drilling. With a drilling depth of 500 meters and a hole diameter range of 105–350 mm, it is suitable for:

• Civilian and industrial deep water well construction, such as rural drinking water projects and mining water supply
• Ground-source heat pump system installation holes
• Hydrogeological exploration monitoring wells
• Rock drilling: the high torque of 13,000–15,000 N·m is suitable for hard rock formations such as granite and basalt
• Large-scale infrastructure projects: the 28-ton lifting capacity supports heavy drill pipe operations, making it suitable for bridge pile foundations and high-rise building foundations
• Deepwater well drilling in arid areas
• Urban underground space exploration, including subway tunnel geological surveys
• Geothermal resource development, including medium- to deep-layer geothermal well construction

With a 194 kW power system and a 6,600 mm feed stroke, this equipment maintains efficient operation even in complex geological conditions, making it particularly suitable for projects requiring large-diameter, deep-hole drilling.

We provide comprehensive technical support and service for the Water Well Drill Rig, including:

• Technical support and consultation for product installation and commissioning
• Product operation and maintenance training
• Quick response to resolve customer issues
• Regular maintenance and inspection services
• Product upgrade services when applicable

We ensure packaging materials are secure and fit for long-distance shipment. The Water Well Drill Rig is packed in containers and is normally loaded in a 40FR container.
