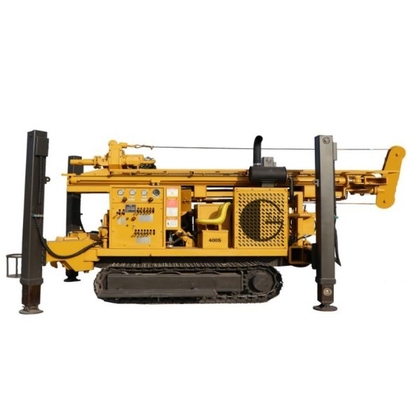

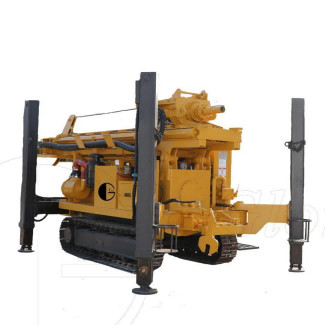

GL400S 400m Crawler Mounted Borehole Drill Rig Machines For Deep Well Drilling
Description:
GL400S water well drilling rig is a moveable, efficient and multipurpose rock drilling equipment, which is mainly used for drilling Wells, agricultural irrigation Wells, geothermal air conditioning holes and other uses of Wells, especially suitable for mountainous areas and rock formation water intake engineering. .
It is available for rotary drilling mode and percussive drilling mode with high-pressure air according to different geological conditions. The crawler chassis make it easy to move and it is full hydraulic machine.
Tehnical Parameter:
| Technical Parameter | |
| Max drilling depth | 400m |
| Drilling diameter | 105-350mm |
| Air pressure | 1.25-3.5Mpa |
| Air consumption | 16-55m³/min |
| Rod length | 3m/6m |
| Rod diameter | 76/89/102/114mm |
| Main shaft pressure | 6T |
| Lifting force | 28T |
| Fast lifting speed | 24m/min |
| Fast forwarding speed | 50m/min |
| Rotary torque | 10000 N.M |
| Rotary speed | 30/170r/min |
| Winch lifting force | 3T |
| High leg stroke | 1.5m |
| Drilling efficiency | 10-35m/h |
| Moving speed | 2.5Km/h |
| Uphill angle | 21° |
| Weight of the rig | 9.2T |
| Dimension | 5.4m x 1.7m x 2.35m |
| Working condition | loose layer or bedding rock |
| Drilling method |
Top Hammer Hydraulic Rotating and feeding, Down the hole hammer or mud pump drilling |
| Suitable hammer | Medium and high pressure DTH hammer |
| Optional accessories | Mud pump, centrifugal pump, generator, foam pump |
| Diesel Engine | 90KW-6 Cylinders |
Company Profile
Glorytek Industry (Beijing)Co.,Ltd., located in Beijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
After-sale service
Warranty of GL400S Crawler Type Water Well Drilling Rig:
(1)Within the period of the first year after delivery, the main parts of GL400S Crawler Type Water Well Drilling Rig are guaranteed to be supplied free of charge once the problem caused by the quality issue.
(2) Service at working site: If need, our technical engineer can be dispatched to the working site for technical service, but the expense of ticket, accommodation, diet, service charge shall be on buyer's account.
(3)Timely after-sale assistance shall be provided all the time.
