250m Water Well Drill Rig Machines 400C Full Hydraulic Crawler Type

1
MOQ
Negotiable
Price
250m Water Well Drill Rig Machines 400C Full Hydraulic Crawler Type
Features Gallery Product Description Request A Quote
Features
Specifications
Name: 400C Full Hydraulic Crawler Water Well Drill Rig Machines For 250m Drilling
Keyword: Water Well Drill Rig Machines
Depth: 250m
Drilling Diameter: 110-325mm
Working Air Pressure: 1.05-2.46MPa
Rod Length: 3m
Lifting Force: 12t
Weight Of The Rig: 7.8 T
Whole Dimension: 6×2.1×2.8m
Drill Method: Down The Hole Or Mud Pump Drilling
Highlight:

250m Drill Rig Machines

,

Crawler Drill Rig Machines

,

400C hydraulic crawler drill machine

Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE
Model Number: 400C
Payment & Shipping Terms
Packaging Details: Standard exporting packing
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 40sets/month
Product Description

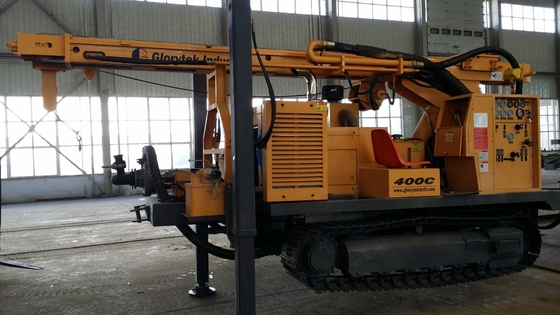

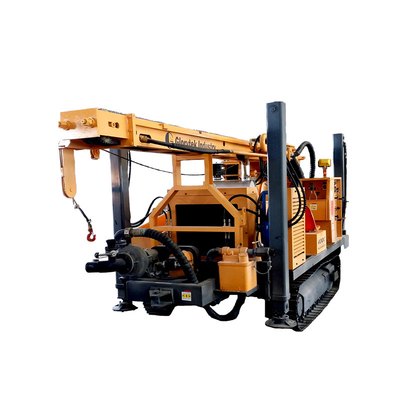

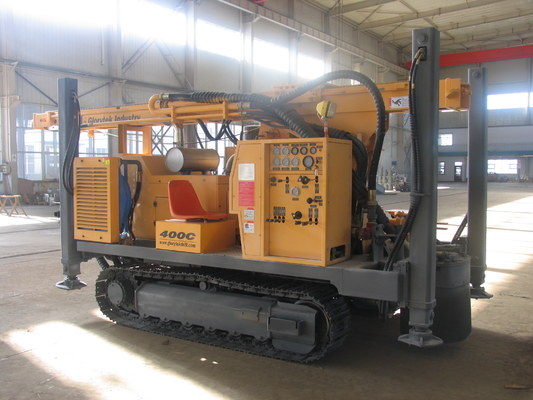

400C Full Hydraulic Crawler Water Well Drill Rig Machines for 250m Drilling



Description:

Our crawler mounted water well drilling rigs are widely used in the scope of geothermal well drilling, water well drilling and exploration projects, etc.

This machine adopts domestic famous high-power diesel engine, which features strong power and ability to meet the working require-ment of various operation environment. The manufacturer's joint warranty and afer-sales guarantee is offered.

The stainless steel track is reinforced and the climbing ability is stronger. And the hydraulic supporting legs make it easy to load or unload.



Tehnical Parameter:



Model:
400C
Max. drill depth:
250m
Drill diameter:
110-325mm
Diesel Engine:
93KW (Cummins)
Working air pressure:
1.05-2.46MPa
Air consumption:
16-34 m³/min
Drill rod length:
3m
Drill rod diameter:
89mm/76mm
Axial pressure:
5t
Lifting force:
12t
Slow lifting speed:
4m/min
Fast lifting speed:
14.5m/min
Slow feed speed:
6.2m/min
Fast feed speed:
25m/min
Rotation torque:
5700-6600Nm, 2820-3300Nm
Rotation speed:
0-90r/min, 0-180r/min
Drilling Method:
Downhole hammer or Mud Drilling
Whole dimension:
6×2.1×2.8m
Travel speed:
3.5Km/h
Hammer:
Medium or high air pressure series
Grade ability:
21°
Weight:
7.8 t
Application formation:
Unconsolidated layer or bedding rock





Structure Features:

1 - Diesel engine-driving hydraulic system. Travel, rotate, feed, hoist, land, lift, unload, and so on all are run by Hydraulic components.
2 - Working unit consists of feed system, slide guide(mast),top-driving rotary head, slide plate, centering apparatus, unloading system, hoisting system, etc.
3 - Axial pressure, feed speed and rotation speed are adjustable.
4 -
Compressed-air system provides special oil mist lubricator to lubricate the impactor and longer the serving life of it.
5 - During operation, three hydraulic landing legs will adjust the rig body level and stability
6 - Auxiliary hoist can list items within 1.5 ton (such as drilling tools, tools, etc), and also help to load or unload drill rod and drill tools.
7 - The slide guide can be fixed with the body during operation in order to improve the operating stability of the mast.





Company Profile



250m Water Well Drill Rig Machines 400C Full Hydraulic Crawler Type 0

Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.


Our factory is specialized in manufacture drilling rig , we have many models , if you have any questions, please contact with us.

250m Water Well Drill Rig Machines 400C Full Hydraulic Crawler Type 1

FAQ
Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit. Moreover, we have drilling equipments like mud pump, air compressor, etc. as well.
Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T.
Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver within 30days.
Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
