30m Depth Drill Rig Machines For Rock Mining Blasting Drilling

1
MOQ
Negotiable
Price
30m Depth Drill Rig Machines For Rock Mining Blasting Drilling
Features Gallery Product Description Request A Quote
Features
Specifications
Name: GL-430 Rock Mining Drill Rig Machines For Blasting Drilling
Keyword: Mining Drill Rig Machines
Depth: 30m
Hole Dia.: 110-165mm
Drill Pipe: 76*3000mm
Rotation Speed: 0-100RPM
Rotation Torque: 3500N.m
Working Pressure: 0.7-2.5Mpa
F.A.D: 10-20m3/min
Feed Force: 20KN
Pull Up Force: 45KN
Total Weight: 6050kg/6500kg
Transportation Dimension: 7370*2360*2560mm
Highlight:

Mining Drill Rig Machines

,

30m Drill Rig Machines

,

Blasting mining drilling machine

Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE
Model Number: GL-430
Payment & Shipping Terms
Packaging Details: 40HQ container
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 40sets/month
Product Description

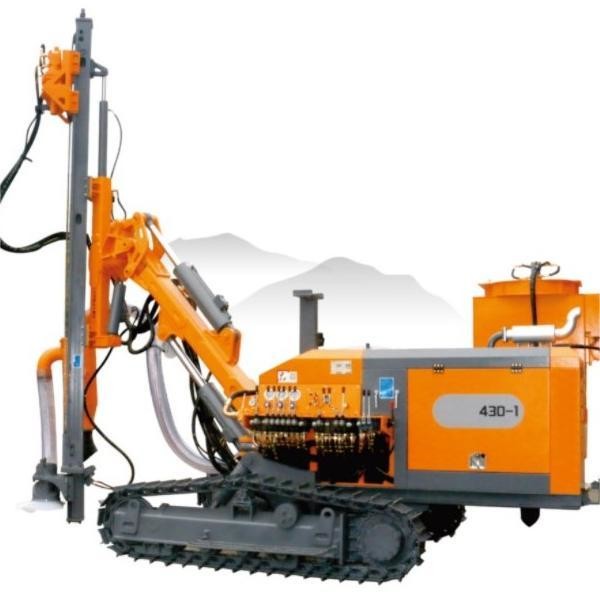

GL-430 Rock Mining Drill Rig Machines For Blasting Drilling



Description:

This model is the classic product series of separated drill rigs, and with full function design of super intensity and high-level configuration, is approved by many users.

High pressure oil pump for various hole sizes and working conditions.



Tehnical Parameter:





Hole depth
30 m
Drill pipe sizes
φ76 mm x 3,000 mm
Hole diameter
φ110 -165 mm
Hammer
4”/5"
Rotation torque (max.)
3,500 N.m
Rotation speed
0 -100 rpm
Working pressure
0.7-2.5Mpa
F.A.D
10-20m3/min
Feed Force
20kN
Pull Up Force
45kN
Tramming Speed(Max.)
3km/h
Gradient
30°
Total Weight
6,050kg/6,500kg
(LxWxH) Transportation Dimensions
7,370x2,360x2,560mm
Dry Dust Collector
Optional
Rig Model
Engine
Rated Power
GL-430
Yuchai YC4DK-80
58KW
GL-430-1
Yuchai YC4DK-100
73.5KW



30m Depth Drill Rig Machines For Rock Mining Blasting Drilling 030m Depth Drill Rig Machines For Rock Mining Blasting Drilling 1





Company Profile

30m Depth Drill Rig Machines For Rock Mining Blasting Drilling 2

Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients; requirements.

Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.



FAQ



Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 3-5 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
