Multipurpose Diamond Core Drilling Rig For Geological General Investigation

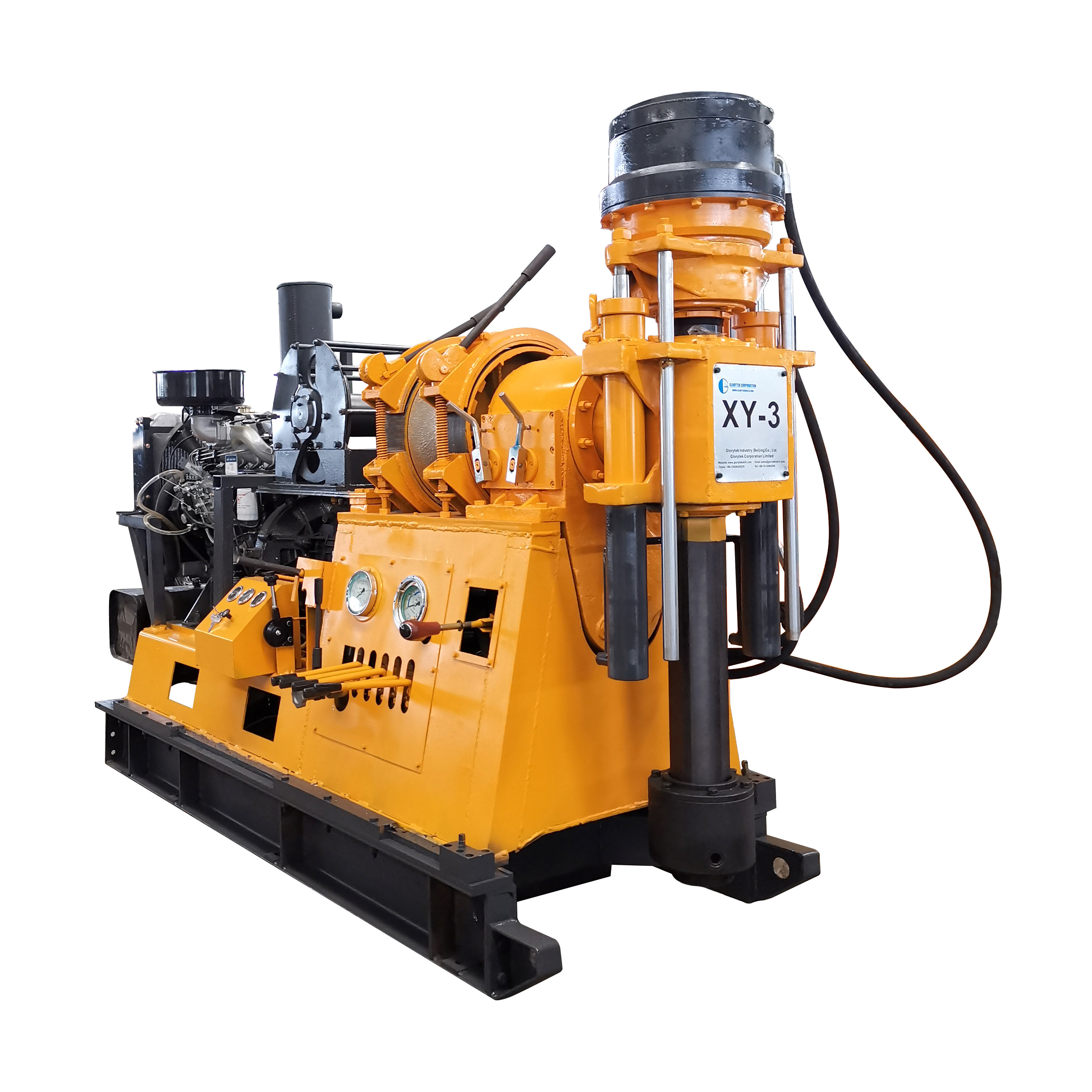

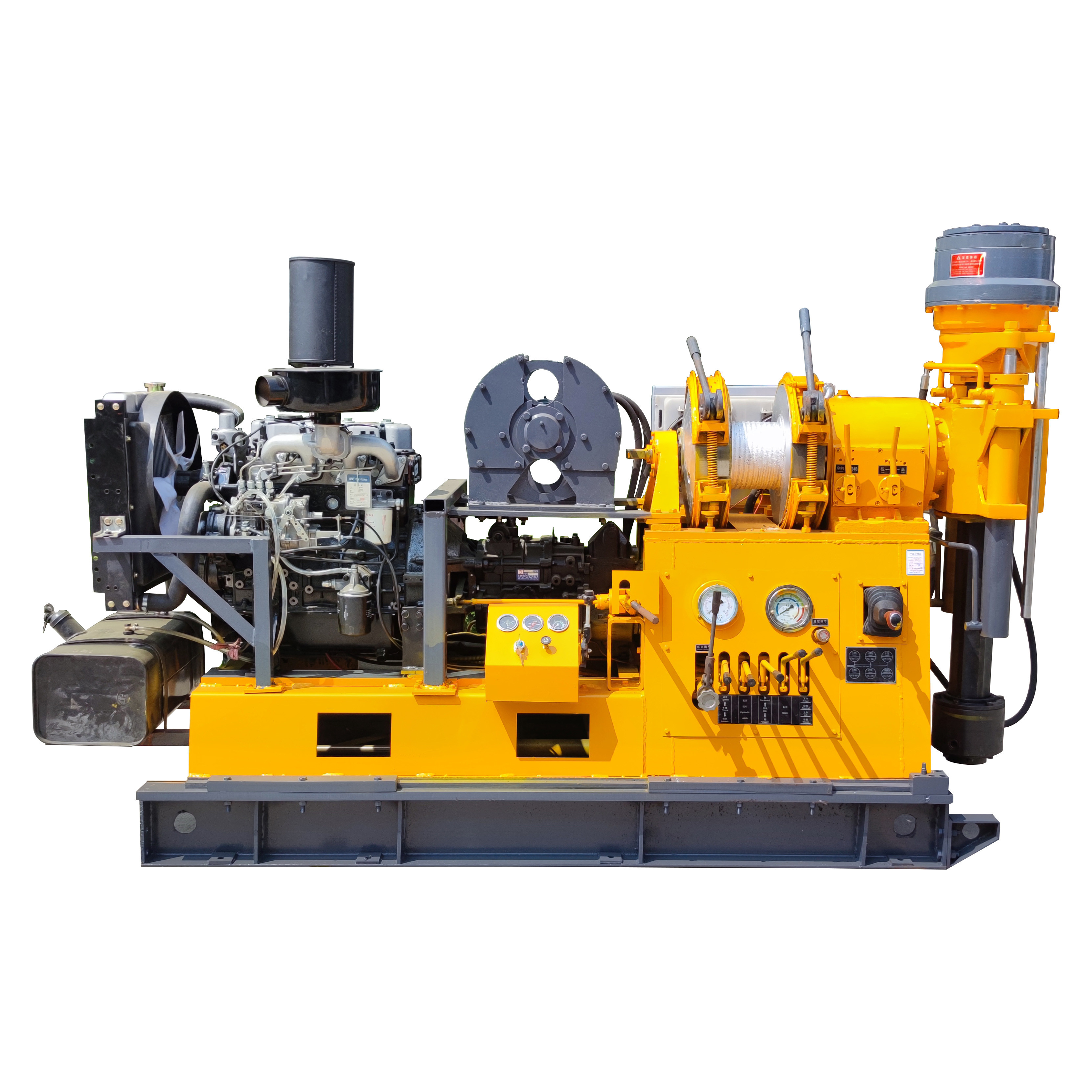

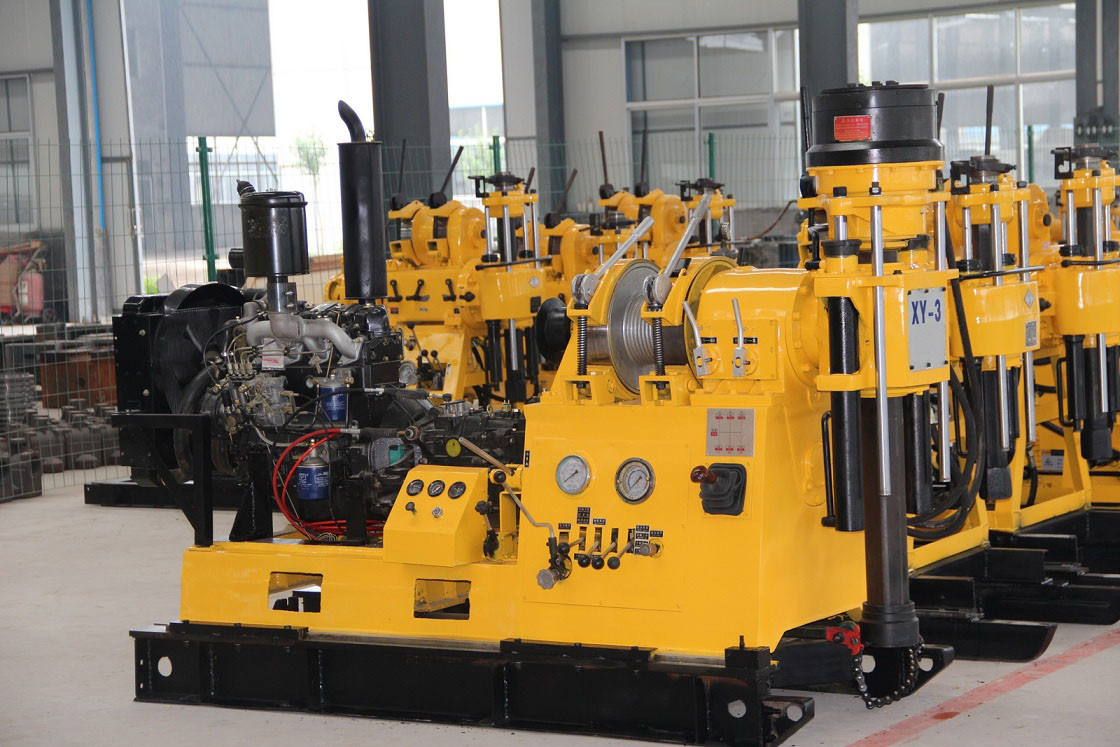

XY-3 Core Drilling Rig

Brief Introduction:

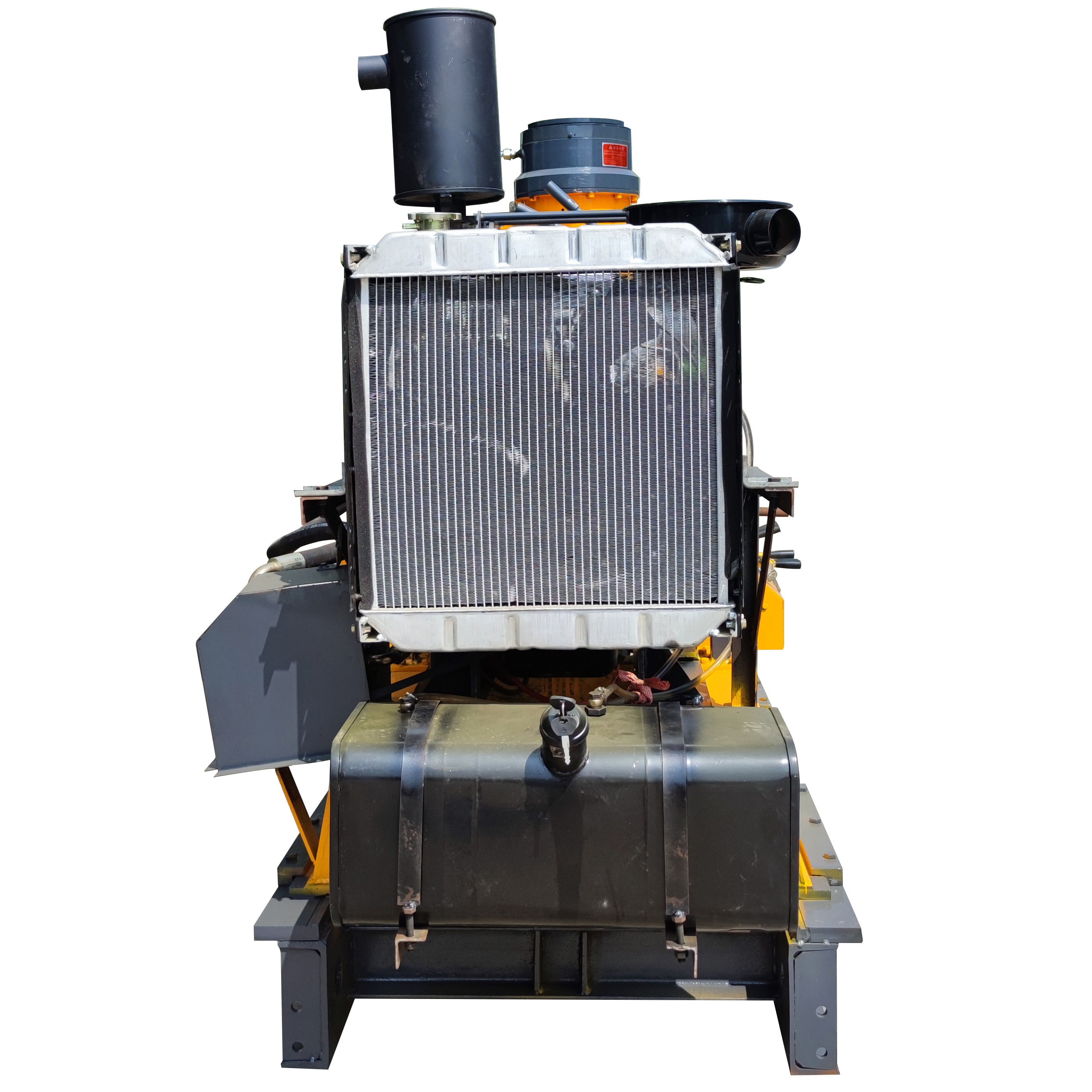

XY-3 series drilling rig is a shallow/ medium depth hole spindle type core drilling rig. The machine is mainly used for diamond drilling and able to meet the needs of various drilling technology requests. It adopts electric motor or diesel engine as power unit. The rig owns simple structure and is easy to operate.

Feature:

A.The rig is equipped with latest MW525 heavy truck transmission, which owns 10 forward gears and 2 reverse gears. The transmission ensures enough reasonable speed range, and can satisfy needs of different drilling technology.

B.The rig’s spindle inner diameter is 96mm, driven by mechanical system, can output big torque. The winch can lift max. 3000kg with single line.

C.The operation handles are fixed together in reasonable layout to make it more convenient for workers to operate the machine.

D.Spindle and winch can be operated separately.

E.Spindle borehole is of big inner diameter, able to change big hexagonal drilling rod.

Usage:

Geological general investigation and exploration, road and tall building groundstill exploration, kinds of investigation holes in concrete structure, river levees, subgrade grouting hole drilling and direct grouting, civil wells and earth central air conditioning wells, swallow and medium depth core drilling.
