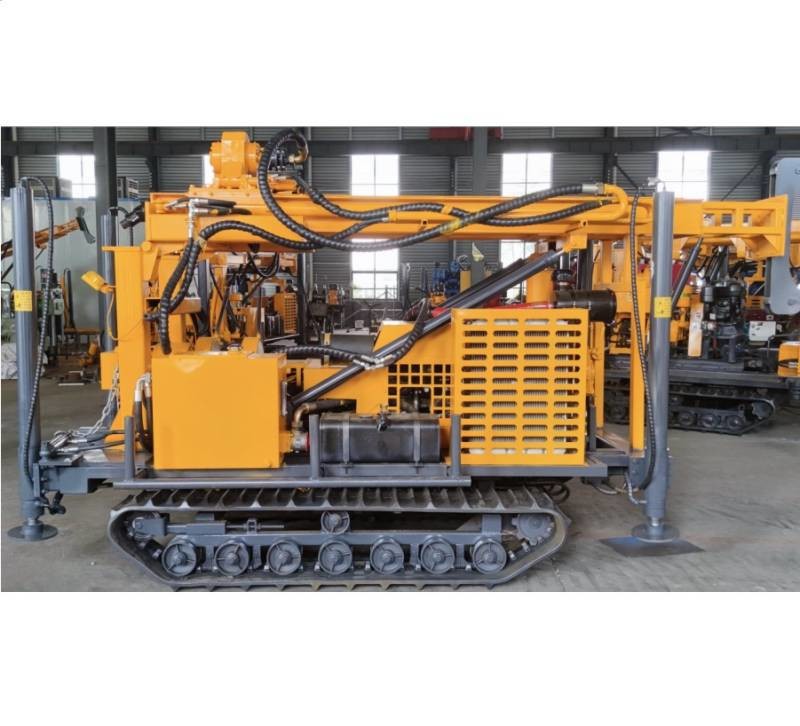

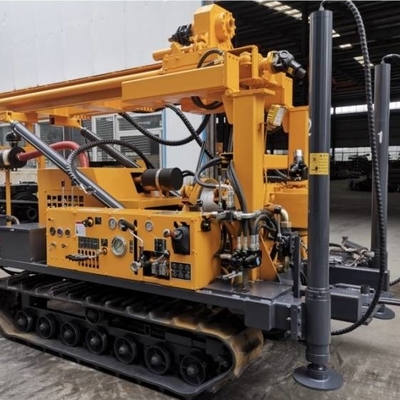

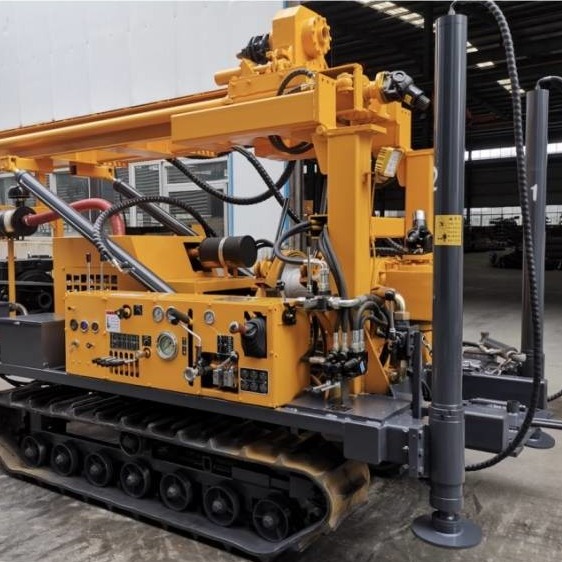

GDL-280 200 Meters Portable Hard Rock Borehole Well DTH Crawler Exploration Drilling Rigs
Description:
The drilling rig is a water well drilling equipment that integrates water drilling and air drilling functions.
The drilling rig adopts a vehicle-mounted 525 gearbox, which is sensitive and convenient to switch gears.
The transmission efficiency is doubled compared with hydraulic transmission, and the power consumption is reduced by 35%., which is energy efficienctly.
It solves the difficult problems of air DTH hammer drilling in soil layers and low construction efficiency of rotary drilling rigs for hard rock layers, gravel and pebble layers.
Tehnical Parameter:
|
Drilling capacity
|
Drilling depth for water well
|
200m(152mm)
|
|
Wireline coring NQ size
|
300m
|
|
|
Borehole (Drill bit) dia.
|
Ø75~Ø220mm
|
|
|
Drilling angle
|
90°
|
|
|
Drive head
|
Lifting capacity
|
100KN
|
|
Thrusting capacity
|
50KN
|
|
|
Rotary speed RPM
|
Forward:33,63,113,162,192/ 237,303,537,906,1120 r/min
|
|
|
Reverse:48/219 r/min
|
||
|
Max. torque
|
9800N.m
|
|
|
Power Unit
|
Engine Model
|
YN27
|
|
Rated power/speed
|
42KW (58KW Optional)/ (2400r/min)
|
|
|
Mechanical winch capacity
|
4.5 Ton
|
|
|
Drill pipe
|
Drill pipe dia.
|
Ø50/ Ø60 / Ø76/ Ø89mm NQ/ HQ /PQ
|
|
Drill pipe length
|
2000mm
|
|
|
Mud pump(optional)
|
BW160/ BW200/ BW250
|
|
Related products
Customer Visting
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
FAQ
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
