Multipurpose Exploration Drilling Rigs Hydraulic For Water Well

1
MOQ
Negotiable
Price
Multipurpose Exploration Drilling Rigs Hydraulic For Water Well
Features Gallery Product Description Request A Quote
Features
Specifications
Name: XY-4 Hydraulic Water Well Drilling Rig Multi-Purpose Exploration Drilling Rigs
Keyword: XY-4 Exploration Drilling Rigs
Depth: 800m
Drill Dia.: NQ,HQ, PQ
Dimension: 1620*970*1560mm
Highlight:

Multipurpose Exploration Drilling Rigs

,

Exploration Drilling Rigs Hydraulic

Basic Infomation
Place of Origin: China
Brand Name: GLORYTEK
Certification: CE
Model Number: XY-4
Payment & Shipping Terms
Packaging Details: Standard exporting packing
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 30 sets/month
Product Description

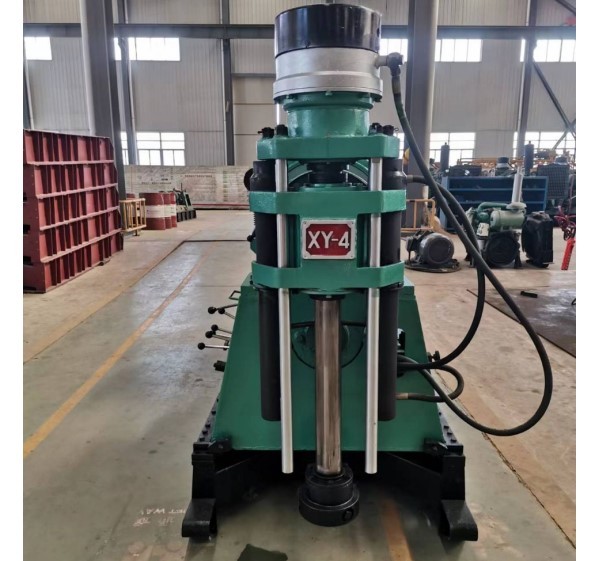

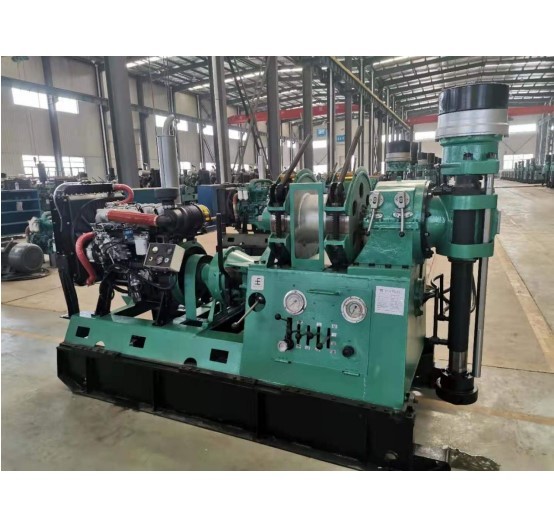

XY-4 Hydraulic Water Well Drilling Rig Multi-Purpose Exploration Drilling Rigs



Description:



XY-4 Core Drill is a new type high speed diamond core drill designed according to the development of geological work in China and developed to meet the requirements of clients.
The drill has 8 rotary speed stage, the Max, speed 1588 rpm, the min speed 101 rpm, so it is suitable for various drilling for solid mineral deposits with diamond or tungsten-carbide tipped bit.

It is also suitable for engineering geological subterranean water explorations as well as explorations of shallow layer oil and natural gas, and can be used to drill holes for ventilation and drainage of main gallery.

Multipurpose Exploration Drilling Rigs Hydraulic For Water Well 0

Main Features of XY-4 drill
1. The rig is in higher rotational speed and rational range of rotational speed; large torque in low speed.
2. The drill is suitable in the mountain area because of light weight for easy transport and convenient disassembly (to be disassembled into nine parts).
3. With compact structure and reasonable layout, and all exposed, non overlapped components, it is easier for maintenance and repair.
4. It is convenient for you to treat trouble with two reverse speeds. With low center of gravity, the rig is reliable and stable in high speed drilling.
5. The operation levers are concentrated, so the operations are reliable and convenient.
6. Fitted with meters, the circumstances can be controlled easily in hole.
7. The transmission is separately driven for drill rig and mud pump; it is easier for the location arrangement with less space occupying.


Tehnical Parameter:



Drill Rod Varieties
Drill Rod Type
Drill Depth
Drill Rod Made in China
Planer in and out
Ф43×6mm(Ф1.69×0.24 inch)
1000 m(3280 feet)


DCDMA(Diamond Core Drill Association)made Drill Rod


Thickened Inner
BW
1250 m (4100feet)
NW
1000 m (3280feet)
HW
660 m (2165feet)

Extracting Core Eith Wire Line
BQ
1400 m (4592feet)
NQ
1100 m (3608feet)
HQ
750 m (2460feet)


Certificate



Multipurpose Exploration Drilling Rigs Hydraulic For Water Well 1




Customer Visting

Multipurpose Exploration Drilling Rigs Hydraulic For Water Well 2

Company Profile

Multipurpose Exploration Drilling Rigs Hydraulic For Water Well 3

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.





FAQ
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.


Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.


Q: What is your payment terms?
A: We can accept T/T,L/C.


Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.


Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).


Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
