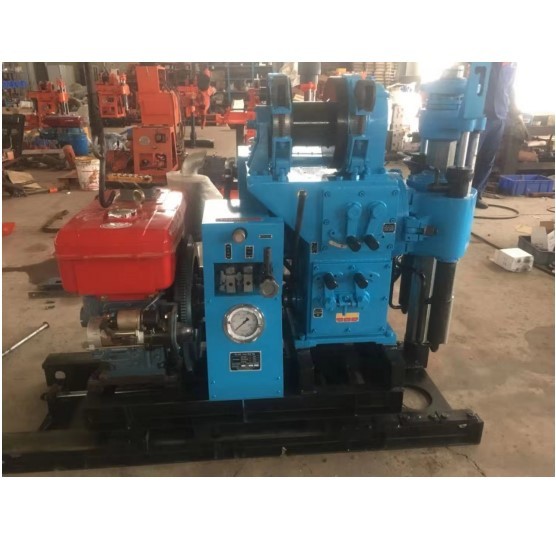

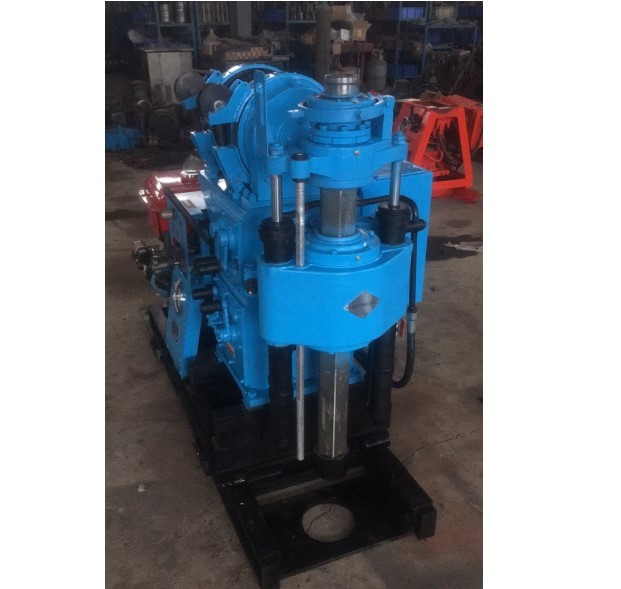

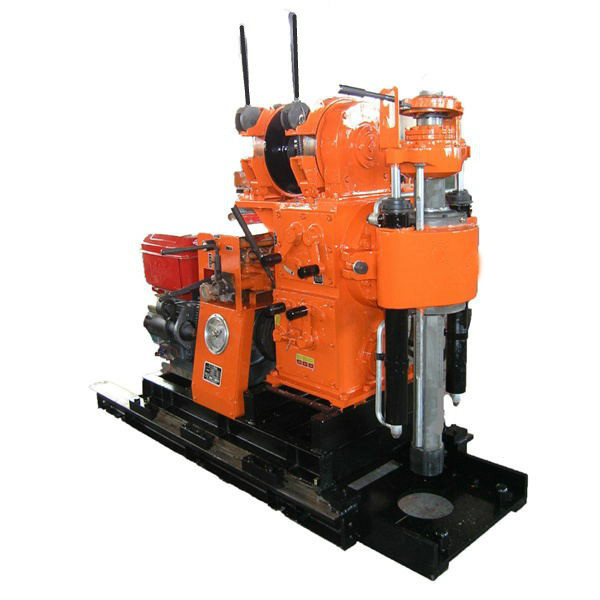

GL250 Core Exploration Drilling Rigs for Mineral Geological Exploration
Description:
GL250 Drill Rig is a new type of vertical shaft drill, which can be powered by diesel engine or electric motor .
It is mainly used diamond drilling and tungstem-carbide drilling of solid bed .It can also be used in exploring drill and base or stake hole.
It is applicable to prospecting and exploration ,geophysical exploration ,road and building exploration ,and drilling works such as boring and blasting and various concrete inspection holes.
It adopts different drilling bits to so drilling works for different stratums ,such as diamond, alloy, steel shot, and steel drop drilling bits.
It can be used to drill 2-9 class sandy clay and basement strata.
when the finial hole diameter is 75mm,the rated drilling depth is 250m and the maximum depth shall not exceed 1.1 times the rated depth. The rated opening diameter is 110m and the allowable maximum opening diameter is 150mm.
Tehnical Parameter:
1.Drilling depth (m) | 250 | 200 | 150 | 100 | 80 |
2.Opening dia. (mm) | φ75 | Φ91 | Φ110 | Φ130 | Φ150 |
3.Finial hole dia.(mm) | 75 | ||||
4.Drilling rod dia.(mm) | 50 | ||||
5.Drilling angle range ( °) | 70-90 | ||||
6.Overall dimensions (L×B×H) (mm) | 1700X1030X1270 | ||||
7.Weight (exclude power unit) (Kg) | 580 | ||||
8.Rotary table | |||||
Spindle speed(r/Min) | forward | 85,125,230,390,560,1000 | |||
reversal | 69 | ||||
Spindle stroke (mm) | 450 | ||||
Lifting capacity (KN) | 30 | ||||
Feeding capacity ( KN) | 23 | ||||
Max. torque (Nm) | 1700 | ||||
9.Hoist | |||||
Reel speed(r/m) | 22,34,62,100,150,270 | ||||
Lifting speed (m/s) | 0.18,0.30,0.54,0.86,1.3,2.3 | ||||
Max lifting capacity (KN) | 20 | ||||
Cable dia (mm) | 9.3 | ||||
Drum dia (mm) | 145 | ||||
Brake dia (mm) | 252 | ||||
Brake band broad (mm) | 50 | ||||
10.Oil pump | |||||
Model | YBC-12/125 | ||||
Displacement (ml/r) | 8 | ||||
Rating pressure ( MPa) | 12.5 | ||||
Power of rig | diesel | L28N | |||
rating power (KW) | 20 | ||||
rating speed (r/Min) | 2000 | ||||
elec--motor | Y160L-4 | ||||
rating power (KW) | 15 | ||||
rating speed (r/Min) | 1440 |
