75mm Depth Diamond Core Drill Rig , Exploration Drilling Equipment Diesel Powered

1
MOQ
Negotiable
Price
75mm Depth Diamond Core Drill Rig , Exploration Drilling Equipment Diesel Powered
Features Gallery Product Description Request A Quote
Features
Specifications
Name: XY-3 Shallow Medium Depth Diamond Coring Exploration Drilling Rigs With Drilling Tools
Keyword: Shallow Medium Depth Exploration Drilling Rigs
Drilling Depth For Water Well: 300,200, 150, 75mm
Machine Dimension(without Chassis): 2500x 900 X 1800mm
Drill Weight (without Chassis): 2100kg
Machine Dimension(crawle Type): 5300x2120x2780mm
Drill Weight (crawler Type): 4600kg
Diesel Engine YN27: 42kW(max 56kW)
Highlight:

75mm Diamond Core Drill Rig

,

75mm Exploration Diamond Core Drill Rig

,

Exploration Drilling Equipment Diesel

Basic Infomation
Place of Origin: China
Brand Name: GLORYTEK
Certification: CE
Model Number: XY-3
Payment & Shipping Terms
Packaging Details: Standard exporting packing
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 50 sets/month
Product Description

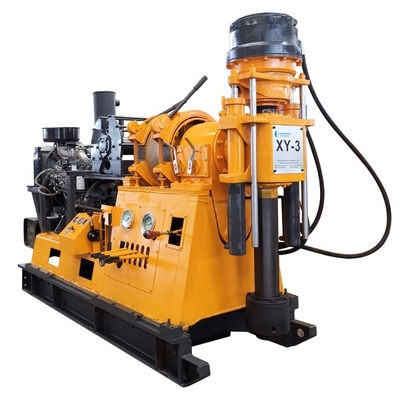

XY-3 Shallow Medium Depth Diamond Coring Exploration Drilling Rigs with Drilling Tools



ABOUT XY-3 DRILL RIG:



Feature:
The rig is equipped with latest MW525 heavy truck transmission, which owns 10 forward gears and 2 reverse gears. The transmission ensures enough reasonable speed range, and can satisfy needs of different drilling technology.
The rig’s spindle inner diameter is 96mm, driven by mechanical system, can output big torque. The winch can lift max. 3000kg with single line.
The operation handles are fixed together in reasonable layout to make it more convenient for workers to operate the machine.
Spindle and winch can be operated separately.
Spindle borehole is of big inner diameter, able to change big hexagonal drilling rod.



Usage:
Geological general investigation and exploration, road and tall building groundstill exploration, kinds of investigation holes in concrete structure, river levees, subgrade grouting hole drilling and direct grouting, civil wells and earth central air conditioning wells, swallow and medium depth core drilling.



Tehnical Parameter:



XY-3 Technical parameter
Drilling depth 100,250, 300, 600m
Corresponding end hole diameter 300,200, 150, 75mm
Max. open hole dia. 300mm
End hole dia. 75mm
Drilling Rod diameter 60mm
Drilling angle 90°~65°
Machine Dimension(without chassis) 2500x 900 x 1800mm
Drill weight (without chassis) 2100kg
Machine Dimension(crawle type) 5300x2120x2780mm
Drill weight (crawler type) 4600kg
Spindle
Spindle speed Forward Low speed 30,53,88,145,222r/min
Forward High speed 143,250,414,684,1050r/min
Reverse 29, 137r/min
Spindle stroke 600mm
Spindle inner diameter 96mm
Lifting capacity 6000kg
Winch
Max.Single line lifting capacity 3000kg
Max.Single line lifting speed 0.5-1.9m/s
Wirerope caliber 12.5mm
Roller capacity 50m
Reel diameter 300mm
Hug folldgate belt width 90mm
Gear Oil pump
Duplex gear oil pump CBF-F63/25
Front Displacement, pressure 63 L/min 20Mpa
Behind Displacement, pressure 25 L/min 20Mpa
Power unit
Diesel engine YN27 42kW(max 56kW)
Rated Speed 2400r/min

75mm Depth Diamond Core Drill Rig , Exploration Drilling Equipment Diesel Powered 0


Company Profile

We supply different types of core drill rig with good performance.



75mm Depth Diamond Core Drill Rig , Exploration Drilling Equipment Diesel Powered 2



Delivery:



Packing: Seaworthy Packing

Delivery: about 30 days after your down payment.

75mm Depth Diamond Core Drill Rig , Exploration Drilling Equipment Diesel Powered 3 75mm Depth Diamond Core Drill Rig , Exploration Drilling Equipment Diesel Powered 4







FAQ:

Q1. What is your warranty policy?
A: We can supply one year warranty or 2000h for our machines. We can provide internet or calling service at any time.

Q2. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q3: How do you make our business long-term and good relationship?
A:1. We trust "win-win situation", because we pay attention to ensure our customers benefit.
