Name: Detachable Portable Exploration Core Drills For Rock Sampling
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: GL-1080
Price: 30,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: GL-1080 Detachable Portable Rock Sampling Exploration Drilling Rigs For Projects In Mountains

Keyword: Detachable Exploration Drilling Rigs

Drilling Depth For Water Well: 1404

Machine Dimension(without Chassis): BTW

Cooling: Water-cooling

Total Weight Of Rig: 1215

Highlight:

Detachable Portable Exploration Core Drills

Rock Portable Exploration Core Drills

Sampling Rock Portable Exploration Core Drills

Basic Infomation

Place of Origin: China

Brand Name: GLORYTEK

Certification: CE

Model Number: GL-1080

Payment & Shipping Terms

Packaging Details: Standard exporting packing

Delivery Time: 20 days

Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A

Supply Ability: 50 sets/month

Gallery

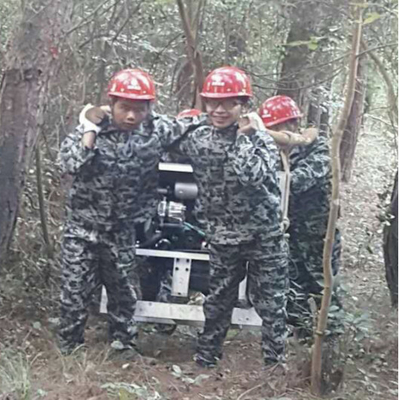

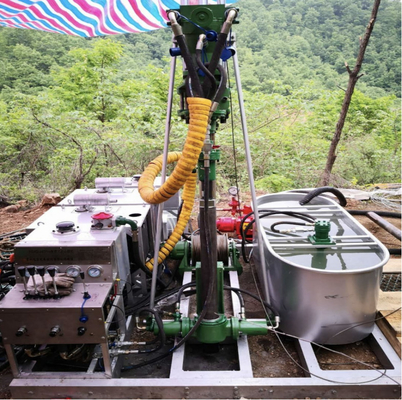

Detachable Portable Exploration Core Drills For Rock Sampling

Product Description

GL-1080 Detachable Portable Rock Sampling Exploration Drilling Rigs for Projects in Mountains

ABOUT GL-1080 DRILL RIG:

Weighted less: Integration of oil cylinder and guide rail; Aluminium alloy ground beam;

Faster: The doubling mast mechanism helps drilling faster and achieving better concentricity of coordinate cones, better stability and longer penetration.

More fuel-efficient: Thread compensation makes drill pipe more durable. Variable pump and motor are more in line with any drilling conditions. Only 1 liter of oil is needed for 1 meter 1s drilling, to which three self-developed patent technologies are applied such as oil cylinder guide rail device, doubling mechanism device and thread compensation device.

Tehnical Parameter:

Models			GL-1080	GL-780	GL-580	GL-380
技术参数 Technical Parameters
钻逬能力 Drilling Capacity	Rod	Core Diameter	钻进深度(M) Drilling Depth	钻进深度(M) Drilling Depth	钻进深度(M) Drilling Depth	钻进深度(M) Drilling Depth
	BTW	42mm	1404	1404	754	494
	NTW	56mm	1080	780	580	380
	HTW	71mm	540	390	290	152
	PQ	84mm	216	117	87
液压系统 Hydraulic System 力士乐变量油泵 The variable pump(rexroth)	额定压力(mpa) Presure		28	28	28	28
	冷却方式 Cooling		水冷 Water-cooling	水冷 Water-cooling	水冷 Water-cooling	水冷 Water-cooling
	重量(kg) Weight		29*4	29*3	29*2	29
	液压油箱重量(kg)The hydraulic oil tank Weight			45	32	23
	操作台重量(kg) Work station Weight		150	120	105	90
久保田发动机(日本) Kubota engine	型号 Model		Kubota V1505-T	Kubota^/1505-T	Kubota V1505-T	Kubota V1505-T
	额定功率 Power(kw)		130 (4)	97.5(3)	65⑵	32.5(1)
	额定转速(RPM) Engine RPM		3000	3000	3000	3000
	重量(kg) Weight		4*190	3*190	2*190	190
动力头(力士乐变量马达)Drilling Head Rexroth variable motor	最大扭矩(NM) Max Torque		1100	1000	712	508.8
	最大转速(RPM) Max Rotation RPM		2000	2000	2000	1200^^
	给逬行程(mm) Feed		1800	1800	1800	1800
	加杆长度(M) Rod Length		1.5	1.5	1.5	1.5
	提升力/给逬力(kN) Single cylinder Pull/Thrust		196/100	159/81	126/66	78/38
	马达重量(kg) Motor Weight		103	103	74	74
	壳体部分重量(kg) Housing Weight		64	64	55	55
绳索取心卷扬 Wire-lline Winch	提升力(kN) Pull		15(空鼓)(Empty drum)	13(空鼓)(Empty drum)	13(空鼓)(Empty drum)	11(空鼓)(Empty drum)
	提升速度(M/min) Pulling Speed		110(空鼓)(Empty drum)	110(空鼓)(Empty drum)	110(空鼓)(Empty drum)	110(空鼓)(Empty drum)
	钢丝绳直径(mm) Rope Diameter		6	6	6	6
	容绳量(M) Rope Length		1100	800	600	400
	重量(kg) Weight		65	53	36	26
撑杆和油缸 Mast oil cylinder	长度(M) Length		3.1	3.1	3.1	3.1
	钻进角度 Drilling Angle		45°-90°	45°-90°	45°-90°	45°-90°
	水平孔(选配) Level Hole(optional)		0-10°	0-10°	0-10°	0-10°
	重量(kg) Weight		150	100	80	63
孔口夹持器 Foot Clamp	适用钻杆 Fit Rod		BTW/NTW/HTW/PQ	BTW/NTW/HTW/PQ	BTW/NTW/HTW/PQ	BTW/NTW/HTW/PQ
孔口夹持器 Foot Clamp	重量(kg) Weight		79	69	59	55
泥浆泵 Mud pump	排量(L/min) /压力(Mpa) displacement/Mpa		150/6	110/6	80/6	45/6
底座尺寸 Transporting Dimentions	铝合金钻架底座(长宽)Rig Base(lengthwidth)(mm)		3500x2680	2840x2680	2600x2300	2240x2100
拆分后最大单元重量(kg) Max Weight of the Biggest Unit Separated			190	190	190	190
钻机总重量(kg) Total Weight of Rig			1215	1215	909	583
其余模块重量 Weight of other	泥浆泵重量(kg) Mud pump Weight		125	125	125	125
	循环水箱(kg) water tank Weight		32	32	32	32
	柴油及电源模块(kg) diesel power supply		83	83	83	83
	铝合金地梁(kg) Aluminium alloy ground beam		130	130	105	80

Company Profile

Glorytek Industry (Beijing)Co.,Ltd.,Our factory have a complete after sale service team. All of our techncians have more than 14 Years old experience in drilling work field. We can provide well-designed, high-efficiency coring rigs for a variety of projects.
FAQ:
Q1, Are you manufacturer?

A: Yes, we are manufacturer with more than 20 years' experience.

Q2, Can you arrange the delivery?

A: Yes, we can help you arrange the delivery by sea or by land, etc.

Q3, Do you have manual with the machine?

A:Yes, of course. It is in English version.

Q4, Can you offer us the necessary paper to do the customs clearance?

A: Yes, of course. We will send you the commercial invoice, sales contract, packing list, bill of lading(FOB or CFR, CIF terms),

insurance policy (if CIF terms), also CO, FORM E if you need.
