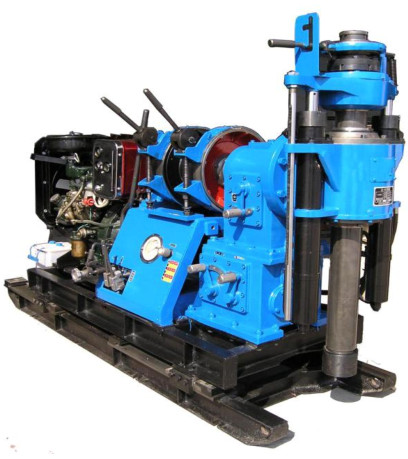

XY-1/XY-1A/GL200/GL250/GL300 Small Compact Structure Easy Operation Exploration Drilling Rigs
ABOUT XY-1/XY-1A/GL200/GL250/GL300 DRILL RIG:

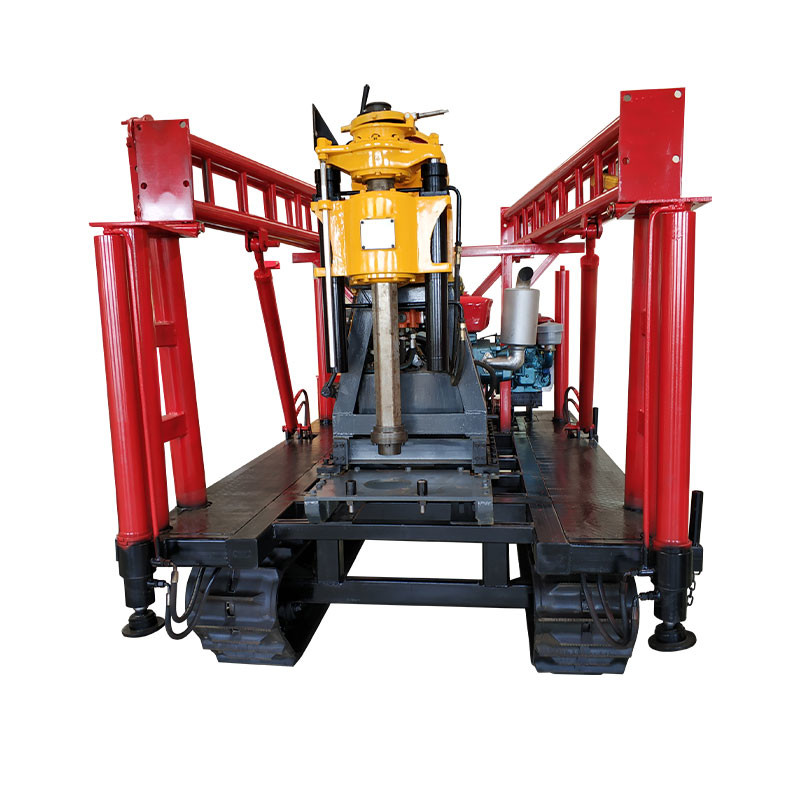

XY-1/XY-1A/GL200/GL250/GL300 core drilling rig can be mounted on trailer chassis or crawler chassis according to clients requirement.
There are small mud pump on the rigs, for drilling big hole or deep hole, clients normally choose bigger mud pump such as BW160, BW160/10 and BW250 for better performance.
We can provide customized services, please send us your specific needs, we will provide the most suitable core drilling rig according to your needs.
Tehnical Parameter:
Models | XY-1 | XY-1A | GL200 | GL250 | GL300 | ||
Drill | Drilling depth | 100m | 100/180 m | 250m | 250m | 300m | |
Initial hole dia | 110mm | 150mm | 200mm | 200mm | 200mm | ||
Final hole dia | 75mm | 75mm | 75mm | 75mm | 75mm | ||
Drill rod dia | 42mm | 43mm | 50mm | 50mm | 50mm | ||
Angle range | 75°-90° | 75°-90° | 75°-90° | 75°-90° | 75°-90° | ||
Dimensions(L×W×H) | 1640×1030×1440 (mm) | 1620×970×1560(mm) | 1700×1030×1270 (mm) | 1700X1030X1270(mm) | 1070×1030×1270 (mm) | ||
Swivel Head | Spindle stroke | 450mm | 450mm | 450mm | 450mm | 450mm | |
Spindle lifting capacity max | 25KN | 25KN | 30KN | 30 KN | max 45 KN | ||
Hoist | Max .lifting capacity(single rope) | 10KN | 15KN | 20/40/90/180 | 20KN | 20KN | |
Power | diesel engine | Model | S1100A2 | S1100A2 | L28N | L28N | L28N |
Rated power | 10.3KW | 10.3KW | 16.2KW | 20KW | 20KW | ||
Rated speed | 2000r/min | 2200r/min | 2200r/min | 2000r/min | 2000r/min | ||
motor | Model | Y132M-4 | Y160M‐4 | Y160L-4 | Y160L-4 | Y160L-4 | |
Rated power | 7.5kW | 11KW | 11KW | 15KW | 15KW | ||
Rated speed | 1440r/min | 1460r/min | 1460r/min | 1440r/min | 1440r/min |
