Industrial Rock Drill Rig , Integrated Drilling Equipment With Air Compressor

1
MOQ
Negotiable
Price
Industrial Rock Drill Rig , Integrated Drilling Equipment With Air Compressor
Features Gallery Product Description Request A Quote
Features
Specifications
Name: D440B /D440+/D450A Integrated DTH Drilling Rock Drill Rig With Air Compressor
Keyword: Rock Drill Rig With Air Compressor
Hole Dia.: 90-138 Mm
Power: 230kw
Air Pressure: 1.05-2.5Mpa
Drill Pipe Storage: 7+1
Total Weight: 13,500 Kg
Max. Working Pressure: 20 Bar
Highlight:

Industrial Rock Drill Rig

,

Integrated Rock Drill Rig

,

Rock Integrated Drilling Equipment

Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE SGS
Model Number: D440B /D440+/D450A
Payment & Shipping Terms
Packaging Details: 40HQ container
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 40sets/month
Product Description

D440B /D440+/D450A Integrated DTH Drilling Rock Drill Rig With Air Compressor



Description



D440B /D440+/D450A Integrated DTH Drilling Rig is equipped with Two-stage air compressor with excellent energy efficiency ratio.

2,800N.m high torque rotary head for high pressure fast drilling.

With excellent fuel economy performance, more energy saving and better environment protection;

Lighter weight and compact dimensions convenieent to move between work fields and work benches.

Great for quarry blast, pre-split, buffer, and ultra deep holes.



Tehnical Parameter



Models D440B D440+ D450A
Diesel Engine Yuchai Cummins Cummins
230 kW@2,000rpm 194 kW@2,000rpm 194 kW@2,000rpm
DTH Hammer 3.5"/4" 3.5"/4" 4"/ 5"
Hole Range 90-138 mm 90-130 mm 115-138 mm
Drill Pipe Storage 7+1 6+1 6+1
Drill Pipe 68/76mmx3,000mm 68/76mmx4,000mm 76mmx4,000mm
Max. Working Torque 2,800 N.m 2,800 N.m 2,800 N.m
FAD. 16 m3/min 16 m3/min 18 m3/min
Max. Working Pressure 20 bar 20 bar 21 bar
Max Pullup Force 31 kN 31 kN 31 kN
Tramming Speed 3 km/h 3 km/h 3 km/h
Slope Capability 25° 25° 25°
Track Frame Oscillation ±10° ±10° ±10°
Weight 13,500 kg 15,000 kg 16,000 kg





We can supply air compressor, dth hammer, dth bit and drill pipe to work with mining dth drill rigs, clients can choose according to their project.

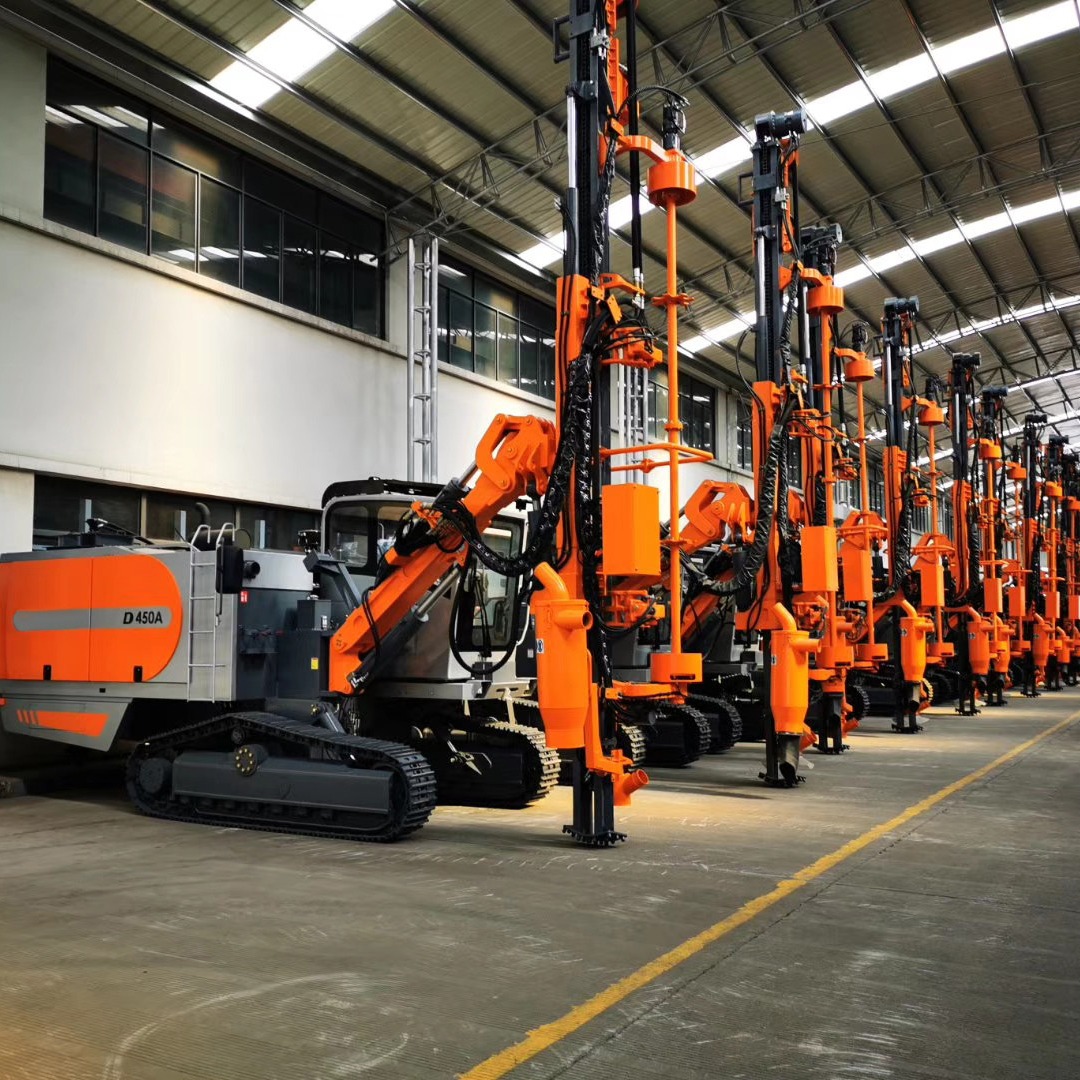

Industrial Rock Drill Rig , Integrated Drilling Equipment With Air Compressor 0

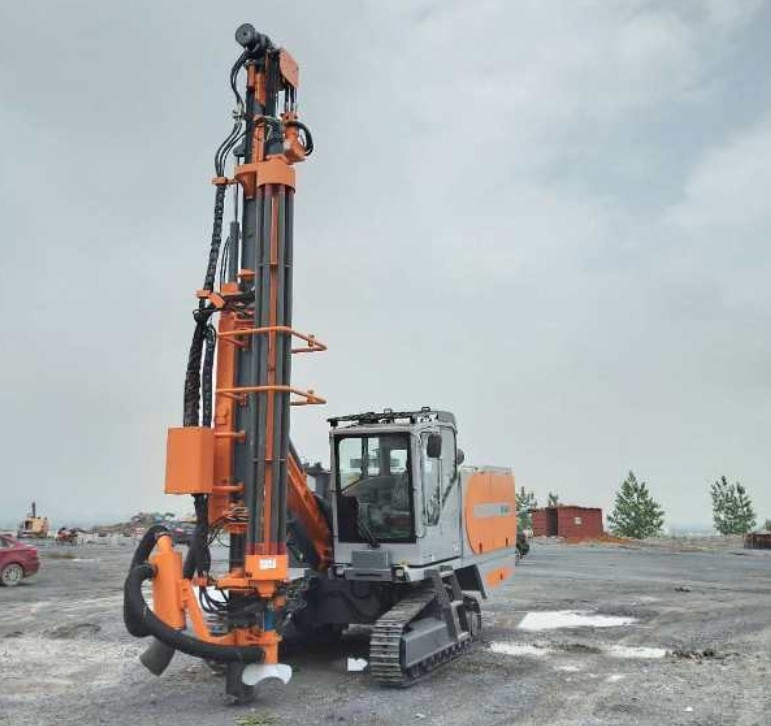

Industrial Rock Drill Rig , Integrated Drilling Equipment With Air Compressor 1



Company Profile

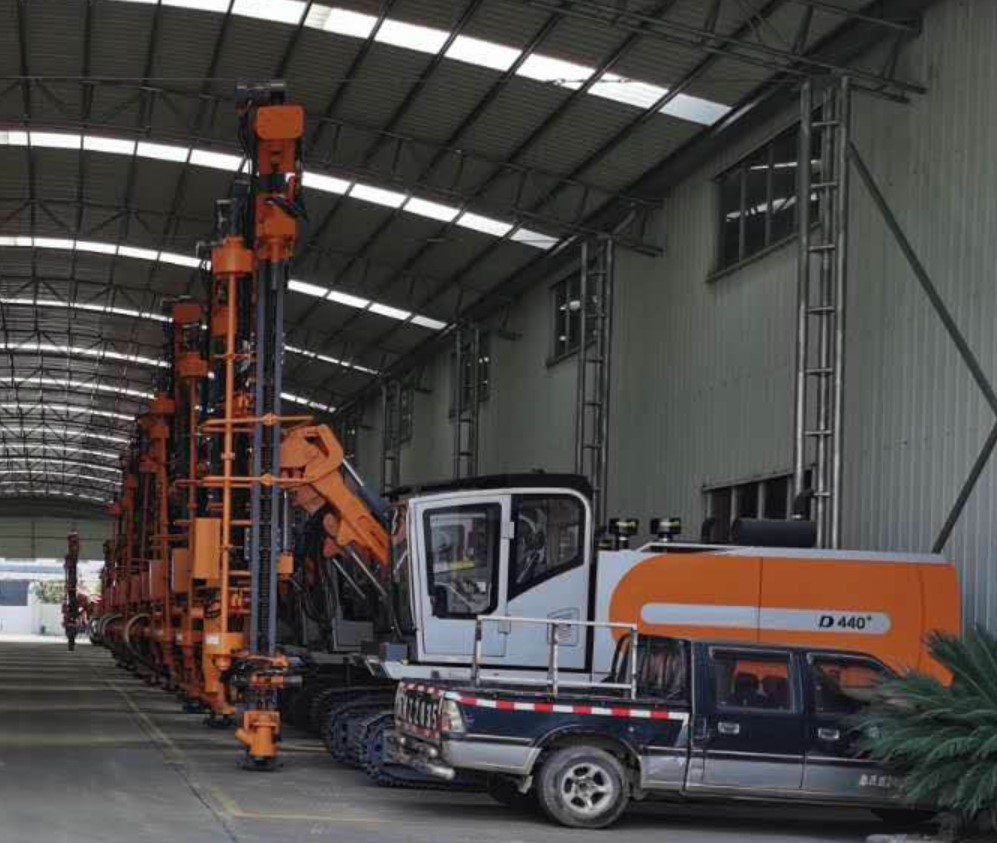

Industrial Rock Drill Rig , Integrated Drilling Equipment With Air Compressor 2


Glorytek Industry (Beijing) Co., Ltd. is an integrated corposration specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients' requirements.



Our factory covers an area of 250,000 square meters,construlction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine,testing equipments etc. over 200 sets and more than 600 employees.



Our main products are surface mining drilling rig, water well drilling rigs, core drilling rigs, hdd drilling rigs, foundation drilling rigs, downhole motor, air compressor, dth hammer, hammer bit, tricone bit, pdc drill bit, button bit, drag bit, drill pipes, shank adaptor, core bit, wireline coring tools, rock reamer, iluted reamer, barrel reamer, stabilizer, drill collar etc.





Packing



1. Drilling machine is bare packing, load into 40HQ container.
2. Drilling tools will be packed in cases or wooden boxes.
3.The delivery time for machine normally be 25-30 days after receiving payment. The drilling tools normally 3-5days if in stock.
4. Shipping by sea, air or express are all available.
