Hydraulic Rock DTH Drilling Equipment With Air Compressor 35m Depth

1
MOQ
Negotiable
Price
Hydraulic Rock DTH Drilling Equipment With Air Compressor 35m Depth
Features Gallery Product Description Request A Quote
Features
Specifications
Name: D460A Air Compressor On-Board DTH Drilling Rock Drill Rig With Cabin
Keyword: Air Compressor On-Board DTH Drilling Rock Drill Rig
Drilling Depth: 35m
Hole Dia.: 115-152mm
Hammer: 4" Or 5"
Power: 264KW
Max. Working Pressure: 2.1Mpa
F.A.D: 19m3/min
Drill Pipe Storage: 6+1
Total Weight: 22t
Highlight:

Hydraulic DTH Drilling Equipment

,

DTH Drilling Equipment 35m

Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE SGS
Model Number: D460A
Payment & Shipping Terms
Packaging Details: standard exporting packing
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 40sets/month
Product Description

D460A Air Compressor On-Board DTH Drilling Rock Drill Rig With Cabin



Description



  • The screw air compressor and the hydraulic system of the drill rig driven by single power pack,compared with the separated drill rig, the energy consumption down by 35%, and the maintenance cost lowered by 50%;
  • The core hydraulic components imported from Europe. The reliable, convenient and practical hydraulic system greatly reducing maintenance work of the system.
  • Powerful dual-speed hydraulic tramming mechanism, strong off-road capability, high torque rotary motor easily handling jamming of drill tools;
  • Two-stage dry dust collecting system, environment friendly, also to improve production efficiency and integrated technology solving the problems of portable air compressor towing around and remote management.



Tehnical Parameter
Main Specifications D460A
Diesel Enggine
Model QSL8.9
Manufacturer Cummins (DCEC)
Rated Power 264KW
Rotation Speed 1900rpm
Capacity of Fuel Tank 750L
Screw Compressor
Air end Manufacturer JIUE
Model GE825
F.A.D 19m3/min
Working pressure (max.) 21bar
Function Specifications
Hole Range 115-152mm
Hole Depth 35m
Drill Pipe dia. 102mm
Drill pipe handling system 6+1
Hammer 4" or 5"
Rotation Speed 0-105rpm
Rotation torque 4435N.M
Drill pipe length 5m
Boom & Feed
Boom type single straight boom
Length of feed beam 9000mm
Feed extension 1300mm
Feed force(max.) 34.5kN
Feed type cylinder/wire
Travel length 5600mm
Feed rate(max.) 0.88m/s
Lifting force( max.) 67.6kN
Chassis
Tramming Speed High: 3km/h
Low: 1.5km/h
Climbing Ability( Max.) 25°
Ground Clearance 420mm
Traction force 156.2kN
Track Oscillation ±10°
Weight & Dimensions
Width 2700mm
Length 11550mm
Height 3560mm
Weight(w/o option) 22000kg





We can supply air compressor, dth hammer, dth bit and drill pipe to work with mining dth drill rigs, clients can choose according to their project.

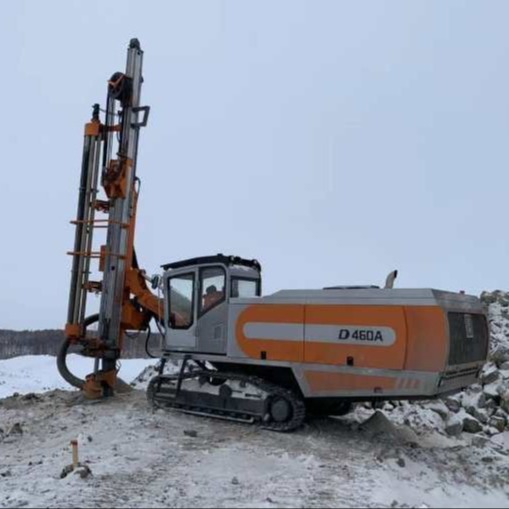

Hydraulic Rock DTH Drilling Equipment With Air Compressor 35m Depth 0

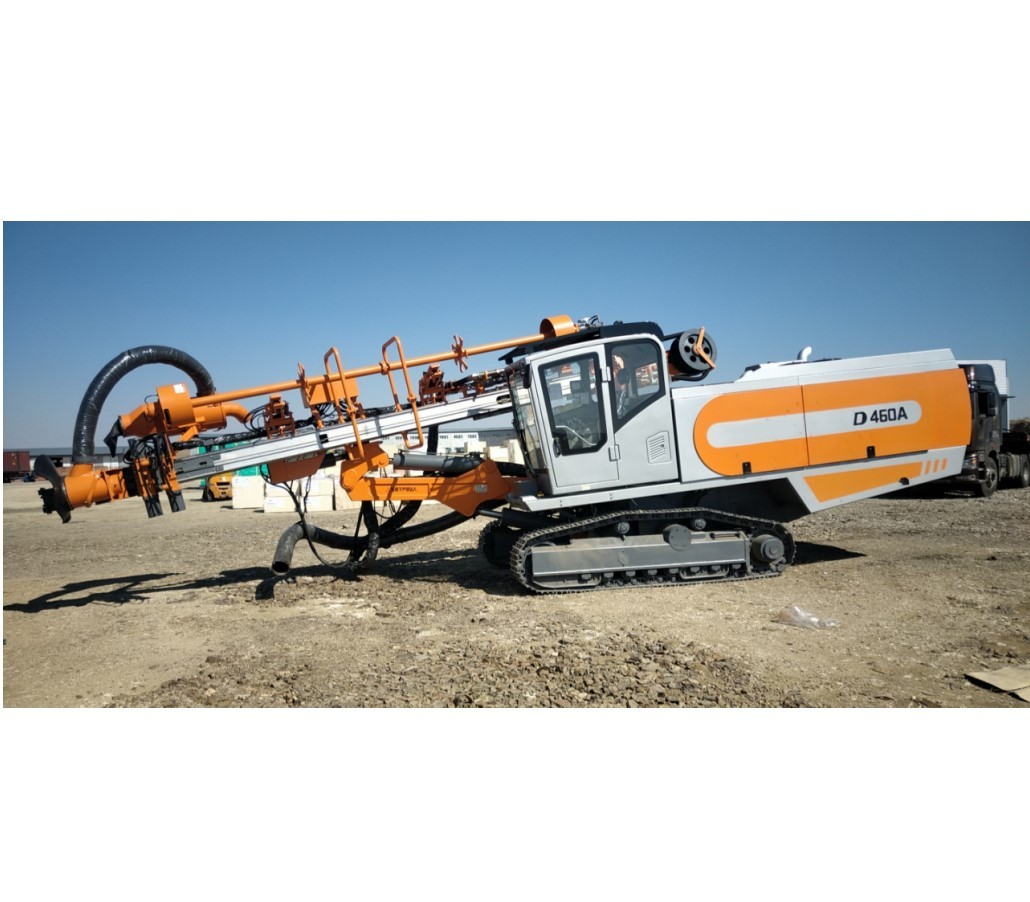

Hydraulic Rock DTH Drilling Equipment With Air Compressor 35m Depth 1



Company Profile

Hydraulic Rock DTH Drilling Equipment With Air Compressor 35m Depth 2


Glorytek Industry (Beijing) Co., Ltd. is an integrated corposration specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients' requirements.



Our factory covers an area of 250,000 square meters,construlction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine,testing equipments etc. over 200 sets and more than 600 employees.



Our main products are surface mining drilling rig, water well drilling rigs, core drilling rigs, hdd drilling rigs, foundation drilling rigs, downhole motor, air compressor, dth hammer, hammer bit, tricone bit, pdc drill bit, button bit, drag bit, drill pipes, shank adaptor, core bit, wireline coring tools, rock reamer, iluted reamer, barrel reamer, stabilizer, drill collar etc.





Packing



1. Drilling machine is bare packing, load into 40HQ container.
2. Drilling tools will be packed in cases or wooden boxes.
3.The delivery time for machine normally be 25-30 days after receiving payment. The drilling tools normally 3-5days if in stock.
4. Shipping by sea, air or express are all available.
