Integrated Pneumatic Rock Drill Rig For 30m Mining Rock Drilling

1
MOQ
Negotiable
Price
Integrated Pneumatic Rock Drill Rig For 30m Mining Rock Drilling
Features Gallery Product Description Request A Quote
Features
Specifications
Name: D470B Integrated Pneumatic Rock Drilling Rig 35m Mining Drilling Rock Drill Rig
Keyword: 30m Mining Drilling Rock Drill Rig
Drilling Depth: 35m
Hole Dia.: 115-152mm
Hammer: 4" Or 5"
Power: 264KW
Max. Working Pressure: 2.1Mpa
F.A.D: 19m3/min
Drill Pipe Storage: 6+1
Total Weight: 22t
Highlight:

Pneumatic Rock Drill Rig

,

30m Rock Drill Rig

,

Mining pneumatic drill rig

Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE SGS
Model Number: D470B
Payment & Shipping Terms
Packaging Details: standard exporting packing
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 40sets/month
Product Description

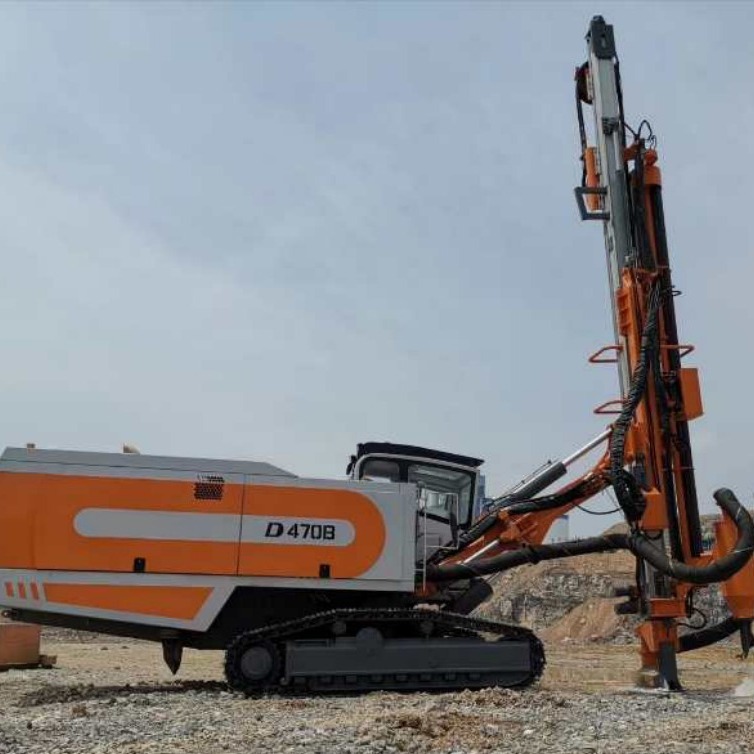

D470B integrated pneumatic rock drilling rig 30m mining drilling Rock Drill Rig



Description



  • The screw air compressor and the hydraulic system of the drill rig driven by single power pack,compared with the separated drill rig, the energy consumption down by 35%, and the maintenance cost lowered by 50%;
  • The core hydraulic components imported from Europe. The reliable, convenient and practical hydraulic system greatly reducing maintenance work of the system.
  • Powerful dual-speed hydraulic tramming mechanism, strong off-road capability, high torque rotary motor easily handling jamming of drill tools;
  • Two-stage dry dust collecting system, environment friendly, also to improve production efficiency and integrated technology solving the problems of portable air compressor towing around and remote management.



Tehnical Parameter



Main Specifications D470B
Diesel Enggine
Model QSM11
Manufacturer Cummins (DCEC)
Rated Power 310KW
Rotation Speed 1800rpm
Capacity of Fuel Tank 750L
Screw Compressor
Air end Manufacturer JIUE
Model DG1500
F.A.D 24m3/min
Working pressure (max.) 24bar
Function Specifications
Hole Range 138-178mm
Hole Depth 30m
Drill Pipe dia. 114mm
Drill pipe handling system 5+1
Hammer 5" or 6"
Rotation Speed 0-80rpm
Rotation torque 5600N.M
Drill pipe length 6m
Boom & Feed
Boom type single straight boom
Length of feed beam 10000mm
Feed extension 1300mm
Feed force(max.) 34.5kN
Feed type cylinder/wire
Travel length 6600mm
Feed rate(max.) 0.88m/s
Lifting force( max.) 67.6kN
Chassis
Tramming Speed High: 3km/h
Low: 1.5km/h
Climbing Ability( Max.) 25°
Ground Clearance 420mm
Traction force 156.2kN
Track Oscillation ±10°
Weight & Dimensions
Width 2700mm
Length 11560mm
Height 3560mm
Weight(w/o option) 24500kg



We can supply air compressor, dth hammer, dth bit and drill pipe to work with mining dth drill rigs, clients can choose according to their project.

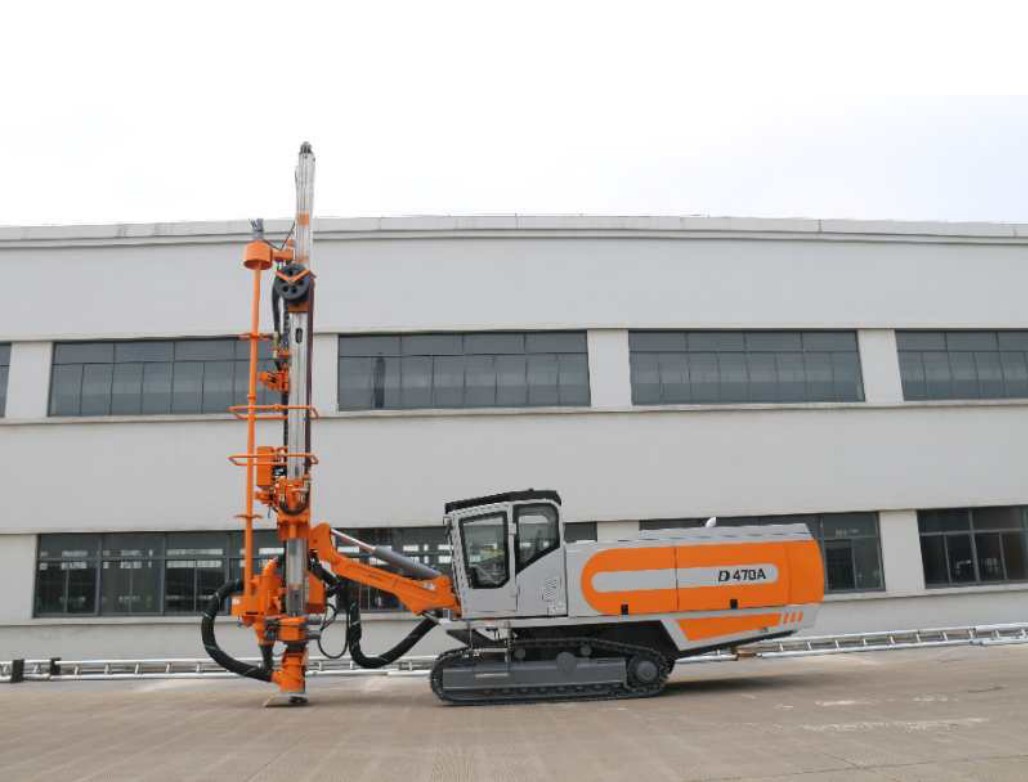

Integrated Pneumatic Rock Drill Rig For 30m Mining Rock Drilling 0

Integrated Pneumatic Rock Drill Rig For 30m Mining Rock Drilling 1



Company Profile



Integrated Pneumatic Rock Drill Rig For 30m Mining Rock Drilling 2


Glorytek Industry (Beijing) Co., Ltd. is an integrated corposration specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients' requirements.



Our main products are surface mining drilling rig, water well drilling rigs, core drilling rigs, hdd drilling rigs, foundation drilling rigs, downhole motor, air compressor, dth hammer, hammer bit, tricone bit, pdc drill bit, button bit, drag bit, drill pipes, shank adaptor, core bit, wireline coring tools, rock reamer, iluted reamer, barrel reamer, stabilizer, drill collar etc.





Packing



1. Drilling machine is bare packing, load into 40HQ container.
2. Drilling tools will be packed in cases or wooden boxes.
3.The delivery time for machine normally be 25-30 days after receiving payment. The drilling tools normally 3-5days if in stock.
4. Shipping by sea, air or express are all available.





FAQ



Q: How can we choose a suitable blasthole drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. etc.

Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.



Q: What is your payment terms?
A: We can accept T/T,L/C.



Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.



Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).



Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
