Separated Surface DTH Rock Drill Rig Crawler Type For Blasting

1
MOQ
Negotiable
Price

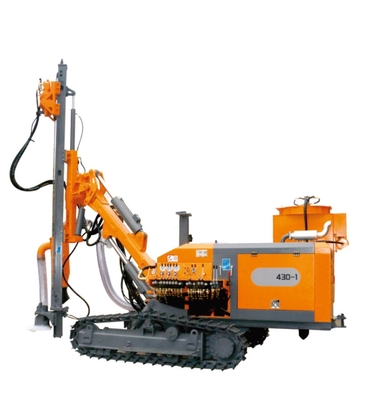

Separated Surface DTH Rock Drill Rig Crawler Type For Blasting
Features Gallery Product Description Request A Quote
Features
Specifications
Name: GL-430 Crawler Type Separated DTH Surface Drilling Rock Drill Rig For Hard Rock Drilling
Keyword: DTH Rock Drill Rig
Hole Depth: 30 M
Drill Pipe Sizes: φ76 Mm X 3,000 Mm
Hole Diameter: φ110 -165 Mm
Hammer: 4”/5"
Rotation Torque (max.): 3,500 N.m
Rotation Speed: 0 -100 Rpm
Working Pressure: 0.7-2.5Mpa
(LxWxH) Transportation Dimensions: 7,370x2,360x2,560mm
Highlight:

DTH Rock Drill Rig

,

Rock Drill Rig Crawler

,

Rock blasting drill rig

Basic Infomation
Place of Origin: China
Brand Name: Glorytek
Certification: CE SGS
Model Number: GL-430
Payment & Shipping Terms
Packaging Details: 40HQ container
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 40sets/month
Product Description

GL-430 Crawler Type Hard Rock Blasting Hole God Mining Rock Drill Rig



Main Specification of GL-430 Separated Surface DTH Drill Rig



This model is the classic product series of separated drill rigs, and with full function design of super intensity and high-level configuration, is approved by many users. High pressure oil pump for various hole sizes and working conditions. Maximum rotation torque up to 5,500 N.m as option for foundation bolting and anchoring, casing and large hole spiral drilling.



Separated Surface DTH Rock Drill Rig Crawler Type For Blasting 0



Tehnical Parameter



Hole depth
30 m
Drill pipe sizes
φ76 mm x 3,000 mm
Hole diameter
φ110 -165 mm
Hammer
4”/5"
Rotation torque (max.)
3,500 N.m
Rotation speed
0 -100 rpm
Working pressure
0.7-2.5Mpa
F.A.D
10-20m3/min
Feed Force
20kN
Pull Up Force
45kN
Tramming Speed(Max.)
3km/h
Gradient
30°
Total Weight
6,050kg/6,500kg
(LxWxH) Transportation Dimensions
7,370x2,360x2,560mm
Dry Dust Collector
Optional
