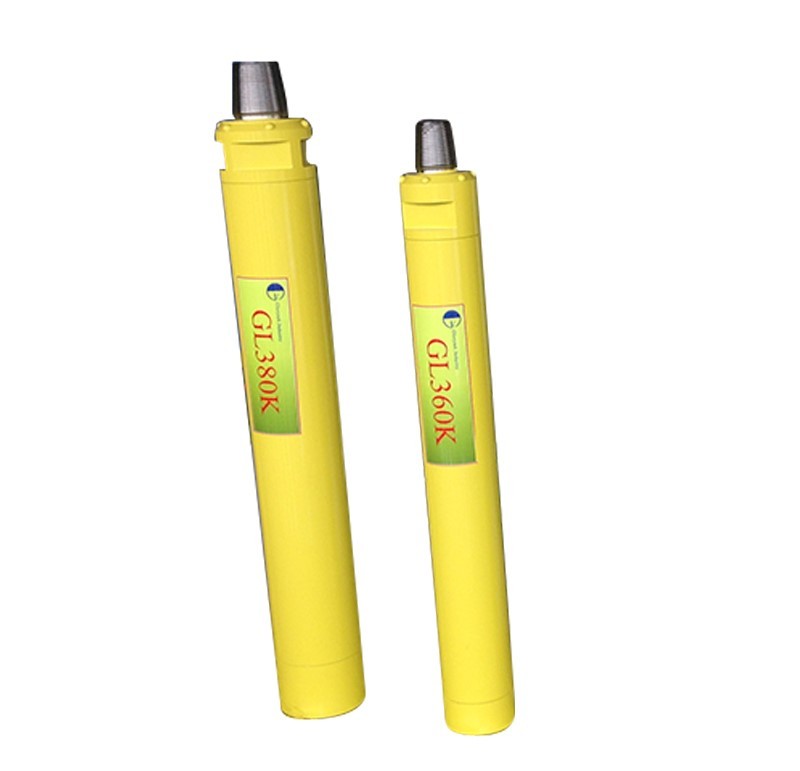

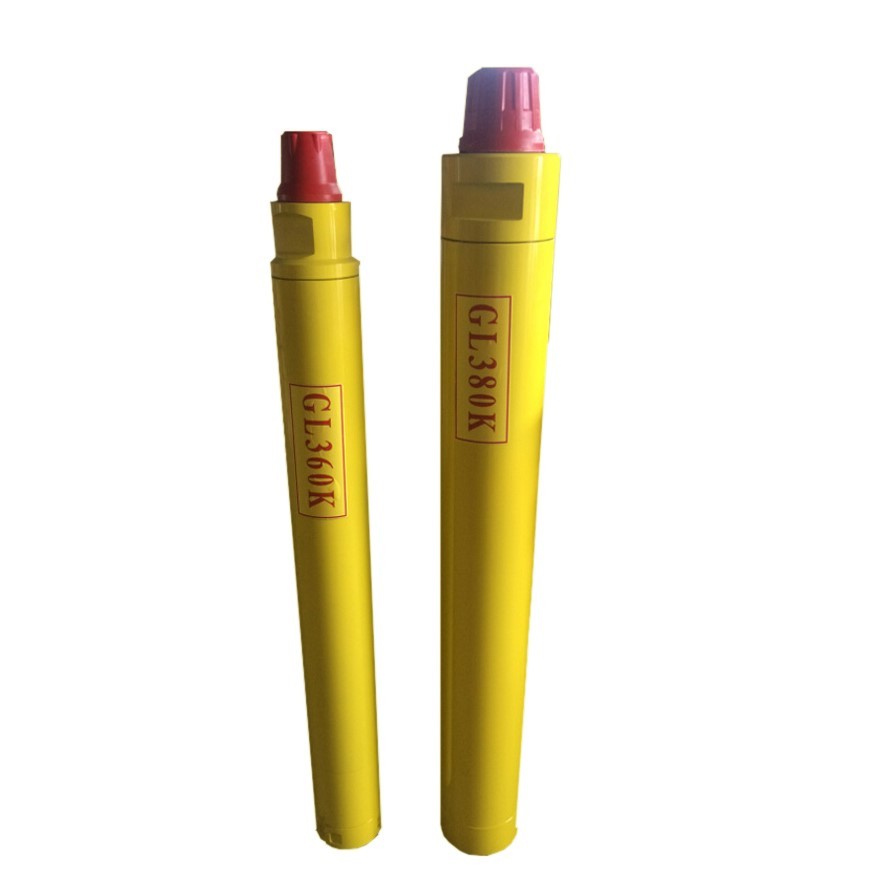

High Efficiency DTH Drilling Hammer DHD380 For Mining Water Well Drilling

1pc
MOQ
Negotiable
Price
High Efficiency DTH Drilling Hammer DHD380 For Mining Water Well Drilling
Features Gallery Product Description Request A Quote
Features
Specifications
Name: GL380SK DTH Drilling Hammer DHD380 High Efficiency For Mining Well Drilling
Keyword: Drilling Hammer DHD380
Model: GL380SK
Shank: DHD380
Thread: 4 1/2 Reg Pin
Weight: 120kg
Highlight:

High Efficiency DTH Drilling Hammer

,

DTH Drilling Hammer DHD380

,

DTH water well drilling hammer

Basic Infomation
Place of Origin: China
Brand Name: GLORYTEK
Model Number: GL380SK
Payment & Shipping Terms
Packaging Details: standard exporting packing
Delivery Time: 5days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 10000pieces/month
Product Description

GL380SK DTH Drilling Hammer DHD380 High Efficiency For Mining Well Drilling



Description


DTH drilling is a percussion system driving a piston inside hammer body with up and down motion by compressed air and transmitting an intensive percussion energy to the bit to enable the drilling by crushing the rock.



Drilling method by DTH hammer exerts high drilling performance especially for drilling hard rock and contributes for shortening work schedule.



DTH hammers are used in various down the hole operations like blasthole drilling, water well drilling, foundation piling etc.



Our DTH hammer and bits are compatible with CIR, DHD, QL,SD,Mission, etc. series of Atlas and Sandvik etc. They are with high efficiency, low failure rate and long service life. Even for all kinds of high hardness, high abrasive rocks and other harsh conditions, our drilling tools can also realize efficient and economical drilling.

Selection of high-quality raw materials and advanced processing technology, more stable performance, longer life. The domestic advanced heat treatment process is adopted to ensure the good mechanical properties of the hammer.



Technical Parameter



High Pressure DTH Hammers
Item
GL380K
Drilling Dia. (ф/mm)
203-350
Hammer Length(mm)
1504
Outside Dia.(ф/mm)
180
Weight(kg)
230
Working Pressure(Mpa)
0.8-2.1
Air Consumption (M3/Min.)
9.6-24.8
Torque(N.M)
1870
Impact Frequency (Times/Min.)
1100-1550
Connection 1
API 4 1-2
Connection 2
ф128-10

Applications


DTH hammers are widely used for mine, quarry, road construction for the drilling and blasting work, water well drilling, slope protection, anchoring, etc.


Features


1. Smooth performance and long service life of DTH hammer due to high quality alloy steel materials and advanced processing technology adapted.
2. Low problem rate and easy to maintenance due to simple, reliable and easy assemble and disassemble inner structure of hammer.

3. The structure design adopts modern theory, so that the stress wave lasts for a long time and the piston life is long.



Packing


Packing: wooden box.
Delivery: Normally 5-7 days after down payment.
Shipping method: by express, by air or by sea



Company Profile



High Efficiency DTH Drilling Hammer DHD380 For Mining Water Well Drilling 0
Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients' requirements.
Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.
