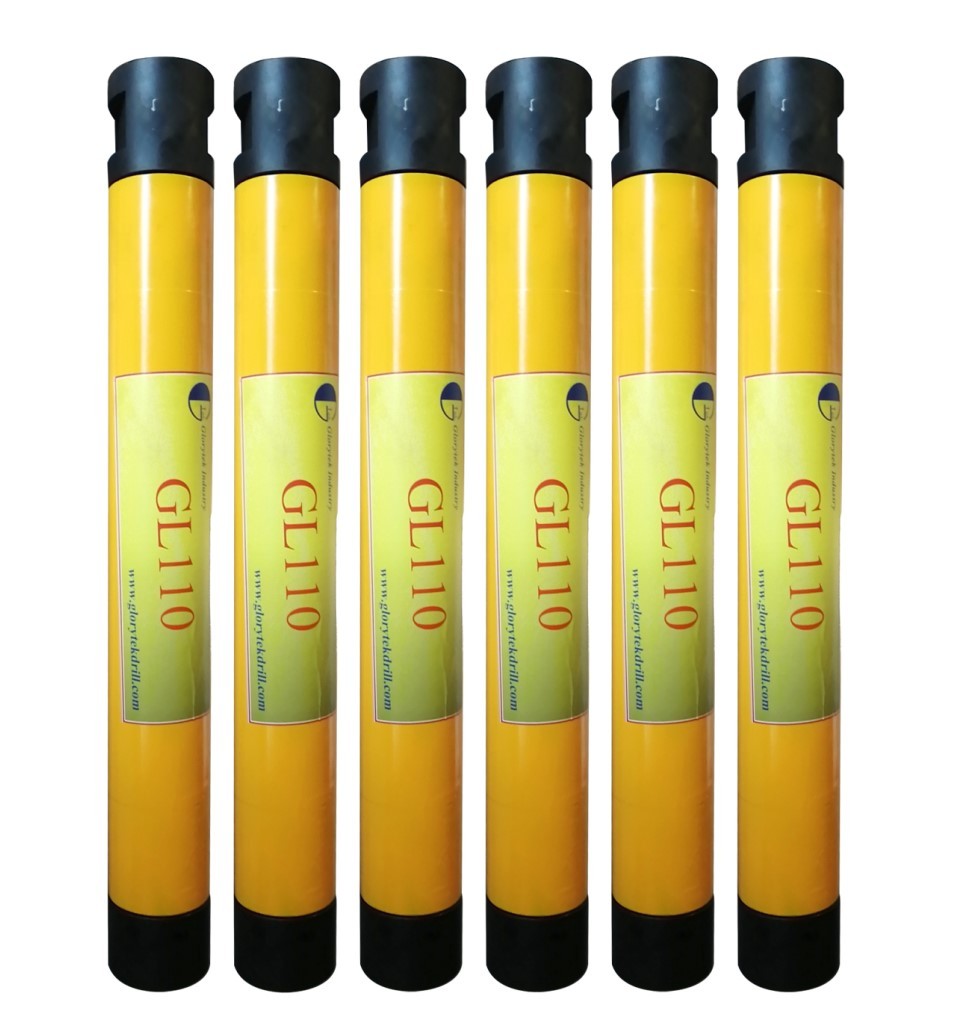

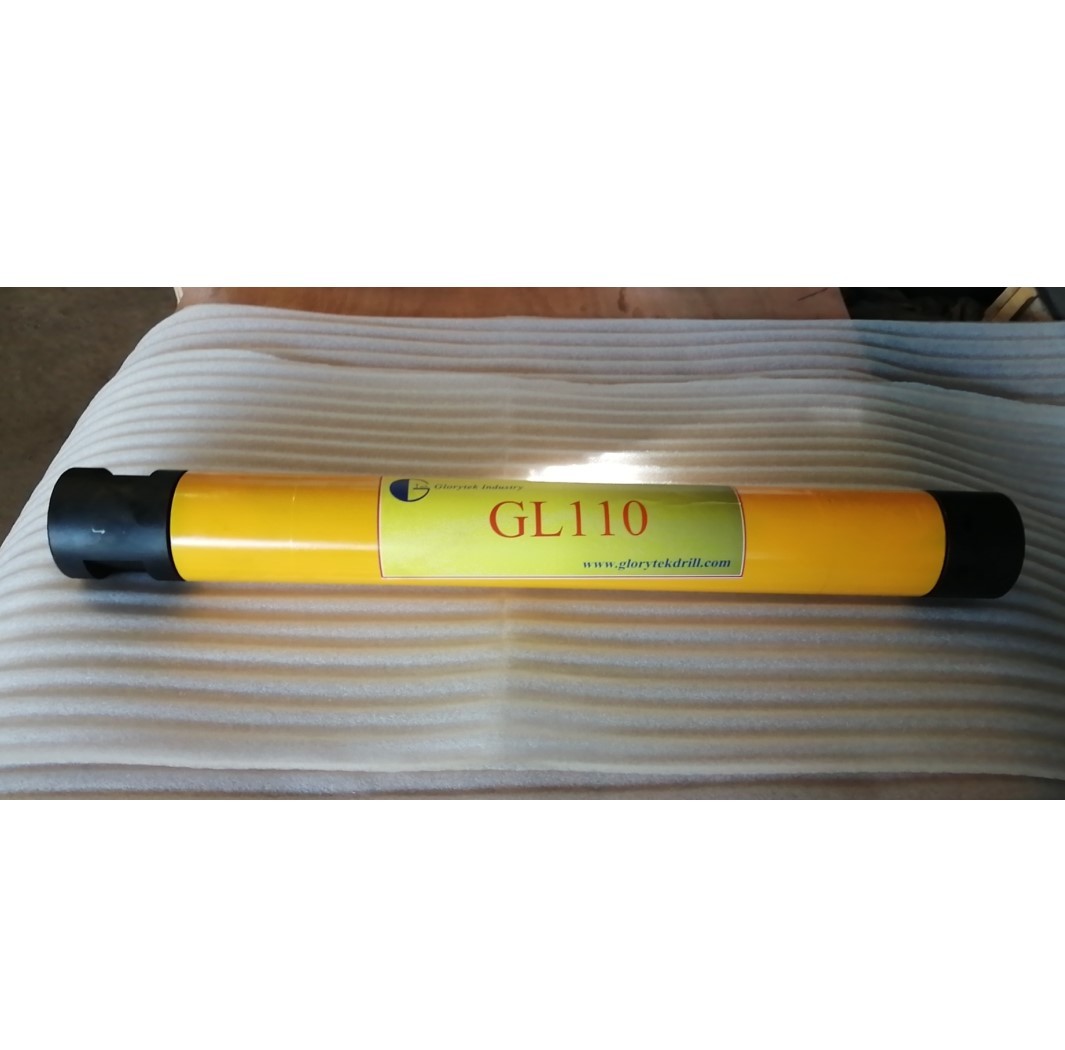

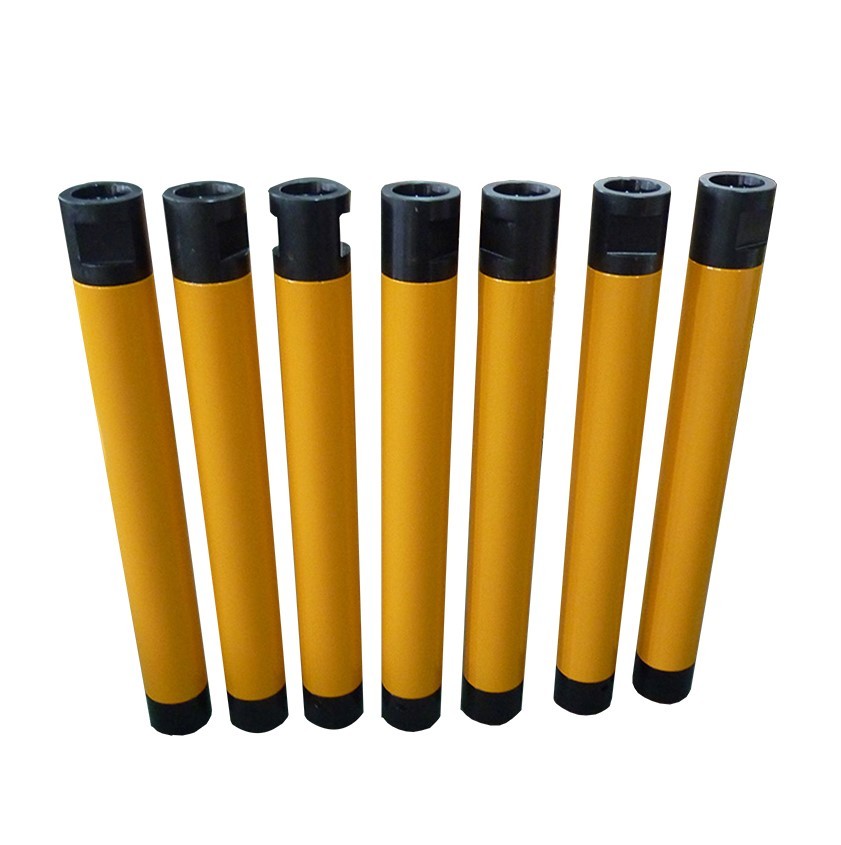

Low Pressure CIR Air Drilling Tools DTH Drilling Hammer for Borehole Blasthole Drilling
Characteristics
- Advanced hammer designs with high power and air efficiency increases productivity
- Tailored product offering covers all your applications and conditions
- Easy service and maintenance designs reduces machine downtime
- Generic and proprietary shank options give you flexibility and reliability
|
Low Pressure DTH Hammers
|
|||||||||
|
Item
|
GL65B
|
GL70
|
GL76
|
GL80
|
GL90
|
GL90-1
|
GL110
|
GL150
|
GL170
|
|
Drilling Dia.
(Φ/mm) |
68-70
|
72-74
|
74-76
|
80-82
|
90-130
|
90-130
|
110-150
|
150-185
|
170-250
|
|
Hammer Length(mm)
|
745
|
803
|
766
|
796
|
796
|
796
|
838
|
908
|
1023
|
|
Outside Dia.
(Φ/mm) |
61.2
|
67.2
|
67.2
|
72
|
80.2
|
80
|
98
|
137
|
156
|
|
Weight(kg)
|
13
|
14
|
15
|
17
|
20
|
20
|
30
|
75
|
90
|
|
Working Pressure(Mpa)
|
0.5-0.7
|
0.5-0.7
|
0.5-0.7
|
0.5-0.7
|
0.5-0.7
|
0.5-0.7
|
0.5-0.7
|
0.5-0.7
|
0.5-0.7
|
|
Air
Consumption (M3/Min.) |
2.5
|
3
|
3
|
5
|
6
|
5.5
|
11
|
17
|
19.5
|
|
Torque(N.M)
|
51
|
70
|
75
|
81
|
110
|
120
|
180
|
340
|
420
|
|
Impact
Frequency (Times/Min.) |
≥810
|
≥810
|
≥810
|
≥800
|
≥820
|
≥820
|
≥830
|
≥800
|
≥790
|
|
Connection 1
|
M4×10×1.5
|
M48.8×4.2
|
M48×10×2
|
M48×10×2
|
M48×10×2
|
M48×10×2
|
API 2-3/8”
|
76×10×3
|
M100×28×10
|
|
Connection 2
|
Φ
37-4 |
Φ43-6
|
Φ44-4
|
Φ50-6
|
Φ54-6
|
Φ54-6
|
Φ65-6
|
Φ90-6
|
Φ98-6
|
Packing: standard exporting packing.
Delivery: Normally 5-7 days after your advanced payment.
Company Profile
Glorytek Industry ( Beijing) Co., Ltd is a company mainly engaged in drilling equipments and tools. With over 20 years experience, our commitment to excellence ensures a reliable product that will perform every time. We utilize the latest technologies in engineering to produce cutting edge designs.
We take pride in being one of the top supplier of DTH bits and hammers in China. We manufacture thousands of different configurations based on our customers' specifications. We have achieved and adhere to the strict standards set forth to us by the ISO 9001:2008. We offer an extensive range of high quality DTH bits and hammers to customers all around the world and wins high praise for the good performance of our DTH bits and hammers.
