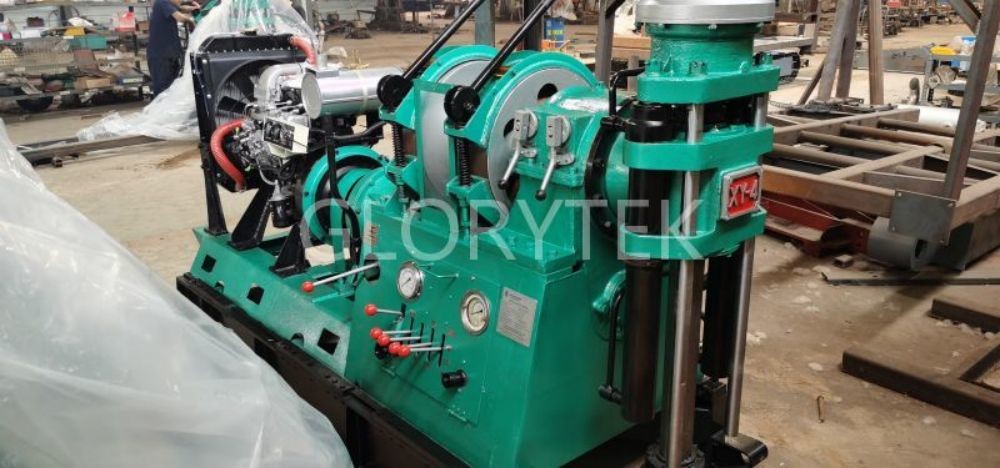

Xy-4 1000m Capacity Exploration Drilling Rigs For Geotechnical Investigation

1
MOQ
Negotiable
Price
Xy-4 1000m Capacity Exploration Drilling Rigs For Geotechnical Investigation
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Xy-4 Exploration Drilling Rigs 1000m Capacity Geotechnical Investigation Drill Rig
Keyword: Xy-4 Exploration Drilling Rigs
Depth: 1000m
Drill Dia.: NQ,HQ, PQ
Dimension: 1620*970*1560mm
Highlight:

1000m exploration drilling rigs

,

geotechnical investigation exploration drilling rigs

,

1000m drilling rig for geotechnical investigation
Basic Infomation
Place of Origin: China
Brand Name: GLORYTEK
Certification: CE
Model Number: XY-4
Payment & Shipping Terms
Packaging Details: Standard exporting packing
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 30 sets/month
Product Description

Xy-4 Exploration Drilling Rigs 1000m Capacity Geotechnical Investigation Drill Rig



Description:



XY-4 Core Drill is a new type high speed diamond core drill designed according to the development of geological work in China and developed to meet the requirements of clients.
The drill has 8 rotary speed stage, the Max, speed 1588 rpm, the min speed 101 rpm, so it is suitable for various drilling for solid mineral deposits with diamond or tungsten-carbide tipped bit.

It is suitable for engineering geological subterranean water explorations as well as explorations of shallow layer oil and natural gas, and can be used to drill holes for ventilation and drainage of main gallery.

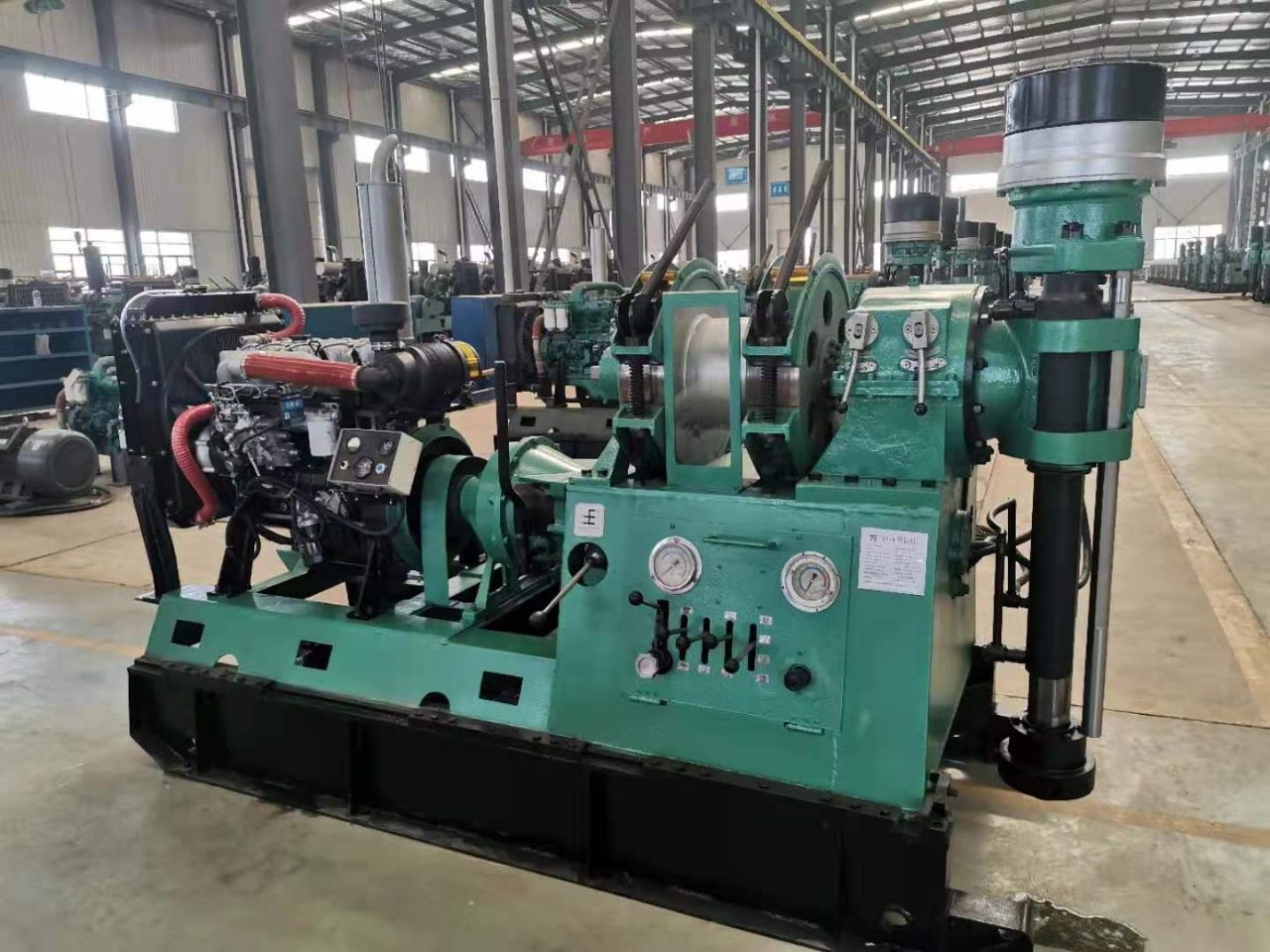

Xy-4 1000m Capacity Exploration Drilling Rigs For Geotechnical Investigation 0

Main Features of XY-4 drill

1. The rig is in higher rotational speed and rational range of rotational speed; large torque in low speed.
2. The drill is suitable in the mountain area because of light weight for easy transport and convenient disassembly (to be disassembled into nine parts).
3. With compact structure and reasonable layout, and all exposed, non overlapped components, it is easier for maintenance and repair.
4. It is convenient for you to treat trouble with two reverse speeds. With low center of gravity, the rig is reliable and stable in high speed drilling.
5. The operation levers are concentrated, so the operations are reliable and convenient.
6. Fitted with meters, the circumstances can be controlled easily in hole.
7. The transmission is separately driven for drill rig and mud pump; it is easier for the location arrangement with less space occupying.

Tehnical Parameter:



1. Basic Specification of XY-4 Skid model core drill rig
Drilling Depth 1000m(Φ42mm Normal Rod)
700m(Φ50mm Normal Rod)
1000m(BQ Rod)
700m(NQ Rod)
Rotary Angle of Spindle 0～360°
Dimensions (L×W×H) without crawler 2710×1100×1750mm
Weight of the Rig (without power unit)) 1720kg
2.Rotator(equipped with52kW,2200r/min power unit)
Spindle Rotation Speed Positive in Low Speed 148；274；392；569r/min
Positive in High Speed 456；841；1201；1747r/min
Negative in Low Speed 122r/min
Negative in High Speed 338r/min
Stroke of Spindle 600mm
Max. Lifting Capacity of Spindle 80kN
Max. Pressuring Force of Spindle 60kN
Max. Torque of Spindle 3355N·m
I.D. of Spindle 68mm
3. Winch
Max. Lifting Force 45kN
Lifting speed(the 3rd layer) 0.82；1.51；2.16；3.15m/s
Diameter of steel wire 16mm/19mm
Drum capacity for wire 90m
4. Rig Travelling Device on Skid
Sliding Stroke of Cylinder 460mm
Max Distance to the hole after back travelling of rig front end 310mm
5.Hydraulic System
Set System Working Pressure 8MPa
Gear Hydraulic Pump Displacement 20ml/r
6.Power Unit
Model Y2-200L-4 Electromotor Diesel Engine Diesel Engine
Power 37kW 52kW 42kW
RPM 1480r/min 2200r/min 1500r/min
Certificate



Xy-4 1000m Capacity Exploration Drilling Rigs For Geotechnical Investigation 1



Customer Visting

Xy-4 1000m Capacity Exploration Drilling Rigs For Geotechnical Investigation 2

Company Profile

Xy-4 1000m Capacity Exploration Drilling Rigs For Geotechnical Investigation 3

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.





FAQ


Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.


Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.


Q: What is your payment terms?
A: We can accept T/T,L/C.


Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.


Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).


Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
