Gl800e Lightweight Core Drilling Rig With 123kw Diesel Engine

1

MOQ

Negotiable

Price

Gl800e Lightweight Core Drilling Rig With 123kw Diesel Engine

Features Gallery Product Description Request A Quote

Features

Specifications

Name: GL800E Lightweight Core Drilling Rig With 123kw Diesel Engine

Keyword: Lightweight Core Drilling Rig

Depth: 800m

Hole Diameter: BTW,NTW, HTW

Diesel Engine: 123kw

Mud Pump Unit: 120Lpm, 40bar

Highlight:

lightweight core drilling rig

,

123kw core drilling rig

,

diesel engine portable diamond drill rig

Basic Infomation

Place of Origin: China

Brand Name: GLORYTEK

Certification: CE,SGE, TUV

Model Number: GL800E

Payment & Shipping Terms

Packaging Details: Standard exporting packing

Delivery Time: 20 days

Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A

Supply Ability: 50 sets/month

Gallery

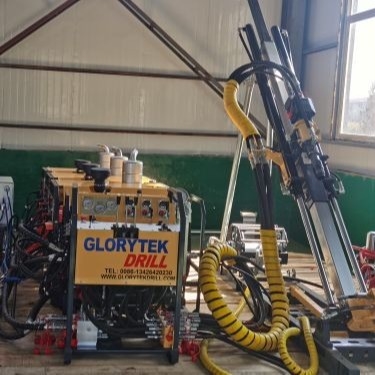

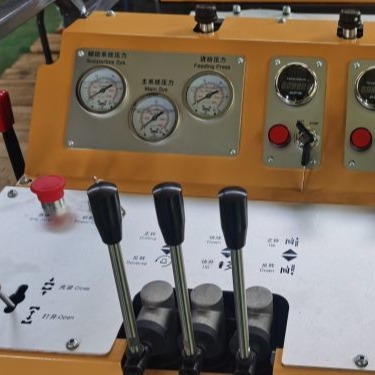

Gl800e Lightweight Core Drilling Rig With 123kw Diesel Engine

Product Description

GL800E Lightweight Core Drilling Rig With 123kw Diesel Engine

Description:


GL800E series are representative models of portable core drilling rigs, suitable for drilling shallow and medium-deep holes.

The design of the portable core drilling rig embodies the concept of environmental protection, which is convenient for restoring the environment after construction, and has little impact on the natural environment.

Portable core drilling rigs have good performance in various working conditions, and have been recognized by users for their excellent equipment quality performance, professional technical services, and excellent performance-price ratio.

Tehnical Parameter:

Model	GL800E
Drilling Depth
B	800m
N	600m
H	260m
Note: The drilling depth is based on the theoretical value, and the specific drilling depth capability is determined by the actual working conditions and process methods
Power System
Diesel Engine	V2410T X3
Power	123Kw
Rotating Speed	3000rpm
Electrical System	12V
Hydraulic System
Main Pump	21MPa
Auxiliary Pump	17MPa
Hydraulic Oil Cooling	Air cooling/water cooling
Feeding System
Feeding Stroke	1.8m
Feeding Force	65kN
Lifting Force	130kN
Drilling Angle	45°-90°
Lifting Speed	114m/min
Drill Pipe Length	1.5m
Rotary Head
Power	Hydraulic Motor
Drive	Spindle Drive
Suitable Drill Pipe(max)	114mm
Max. Rotating Speed	1200rpm
Max. Torque	680Nm
Wireline Winch
Wire Rope Capacity	800m
Lifting Tension	Empty Rope Drum: 11.9kN
	Full Rope Drum: 5kN
Lifting Speed	114m/min
Drill Pipe Clamp
Max. I.D	114mm
Clamping Capacity	13000kg
Suitable Drill Pipe(O.D)	54mm-114mm
Core Diameter(O.D)	36mm-85mm
Mud Pump Unit( Optional)
Mud Pump	Plunger High-Pressure Pump
Drive Type	Independent Drive
Flow And Pressure	120Lpm, 40bar
Water Supply Unit(Optional)
Water Supply Pump	Plunger High-Pressure Pump
Drive Form	Diesel Engine(7.3KW)
Flow And Pressure	100Lpm, 70bar
Drill Rig Weight
Power Unit	180kg *3
Operation Unit	120kg
Oil Tank Unit(Full Load)	130kg
Mud Pump Unit( Optional)	50kg
Working Weight( about)	1200kg
Max. Disassemble Part QTY	12

Features:

1. Combined masts, which can be automatically retracted, compact in structure, stable and reliable.

2. The proprietary portable drilling rig mud treatment system adopts customized high-pressure mud pump, which is light in weight, small in pulse and easy to operate.

3. Industry high-end manufacturing process, excellent quality.

Related Products

Gl800e Lightweight Core Drilling Rig With 123kw Diesel Engine 0

Customer Visting

Gl800e Lightweight Core Drilling Rig With 123kw Diesel Engine 1

Company Profile

Gl800e Lightweight Core Drilling Rig With 123kw Diesel Engine 2

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.

Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.

FAQ

Q: How can we choose a suitable water well drill rig?

A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.

Q: Are you a factory or a trading company ?

A: We are an integrated corporation specialized in manufacturing and exporting.

Q: What is your payment terms?

A: We can accept T/T,L/C.

Q:.What is your MOQ? How long is the delivery time?

A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.

Q:. How long is the warranty?

A: The guarantee period for mainframe is one year (excluding the quick wear parts).

Q: Can we print my Logo on the products?

A: Yes, we can. We support OEM .
