Portable Glxy-2t Crawler Mineral Exploration Drilling Rigs 500m Borehole Core

1
MOQ
Negotiable
Price
Portable Glxy-2t Crawler Mineral Exploration Drilling Rigs 500m Borehole Core
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Portable GLXY-2T Crawler 500m Borehole Drill Rig Core Exploration Drilling Rigs
Keyword: Core Exploration Drilling Rigs
Depth: 1000-3000m
Drill Dia.: NQ,HQ, PQ
Highlight:

crawler mineral exploration drilling rigs

,

500 m mineral exploration drilling rigs

,

borehole portable exploration core drills

Basic Infomation
Place of Origin: China
Brand Name: GLORYTEK
Certification: CE
Model Number: GLXY-2T
Payment & Shipping Terms
Packaging Details: Standard exporting packing
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 30 sets/month
Product Description

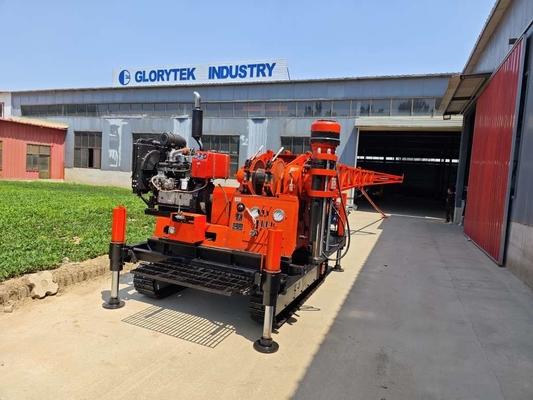

Portable GLXY-2T Crawler 500m Borehole Drill Rig Core Exploration Drilling Rigs



Description:



GLXY-2T Crawler exploration drill rig has the function of hydraulic raising and lowering, which is suitable in large angle slanting hole drilling.

Angle adjustment: The tower should be capable of being adjusted to different angles to allow for drilling on uneven terrain or to reach specific depths.

Stability: The tower should be sturdy and stable to prevent any accidents or collapses during the drilling process.

Height adjustment: The tower should be able to be raised or lowered to accommodate drilling at different depths.

Load-bearing capacity: The tower should be able to support the weight of the drilling rig and equipment, as well as withstand the forces generated during the drilling process.



Tehnical Parameter:



Specifications Models
XY-2T
Drilling depth 300-500m
Max.torque 3147N·m
Spindle stroke 560mm
I.D of spindle 96mm
Max. Lifting capacity of spindle 60kN
Max. Feeding force 45kN
Max.hoisting force 30kN
electric motor power 22kW
Diesel Engine power 31kW

Specification of mast Models
XY-2T
Drill-tower height 8000mm
The area of the base 3600×2100mm
The number of Pulley 2
Max.Load of Mast 75kN
Load of Moveable Work Plateform 70Kg
Adjusted angles of drill tower 45°- 90°



Related Products:

Portable Glxy-2t Crawler Mineral Exploration Drilling Rigs 500m Borehole Core 0



Certificate



Portable Glxy-2t Crawler Mineral Exploration Drilling Rigs 500m Borehole Core 1




Customer Visting

Portable Glxy-2t Crawler Mineral Exploration Drilling Rigs 500m Borehole Core 2

Company Profile

Portable Glxy-2t Crawler Mineral Exploration Drilling Rigs 500m Borehole Core 3

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.





FAQ


Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.


Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.


Q: What is your payment terms?
A: We can accept T/T,L/C.


Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.


Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).


Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
