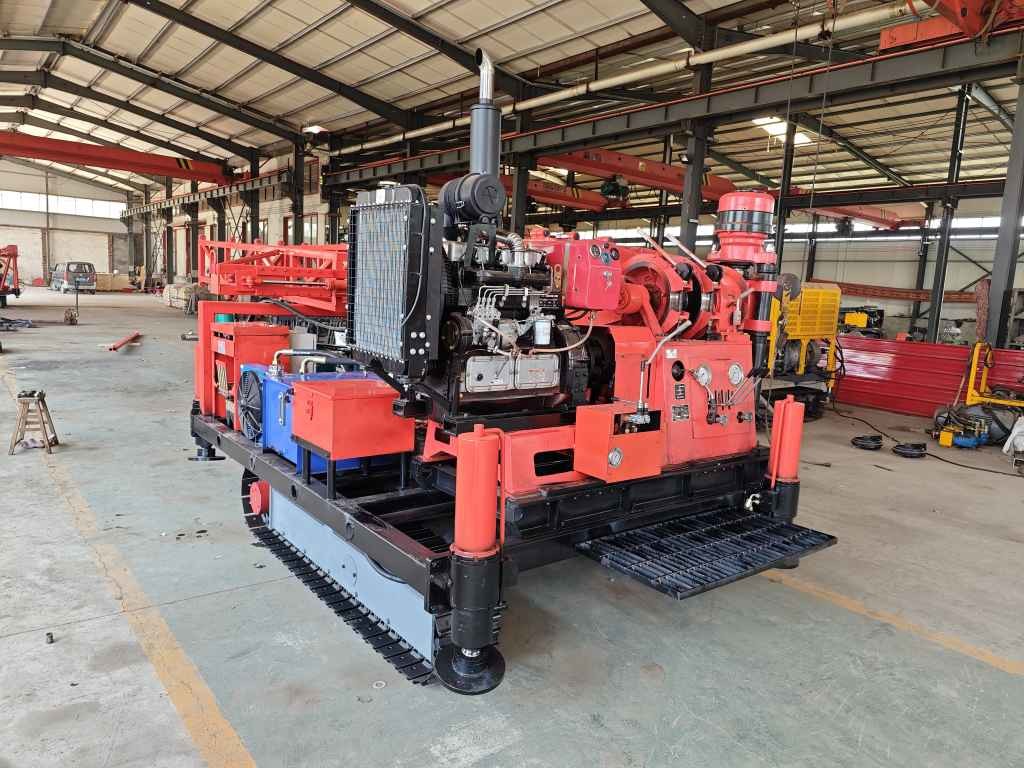

HQ High Efficiency Exploration Drilling Equipment 500m Depth

1
MOQ
Negotiable
Price
HQ High Efficiency Exploration Drilling Equipment 500m Depth
Features Gallery Product Description Request A Quote
Features
Specifications
Name: High Efficiency Geotechnical Core Sample Drilling Machine Rig Core Drill Exploration Drilling Rigs
Keyword: Core Drill Exploration Drilling Rigs
Depth: 300-500m
Drill Dia.: NQ,HQ, PQ
Highlight:

high efficiency exploration drilling equipment

,

HQ exploration drilling equipment

,

500m depth exploration drill rig

Basic Infomation
Place of Origin: China
Brand Name: GLORYTEK
Certification: CE
Model Number: GLXY-2T
Payment & Shipping Terms
Packaging Details: Standard exporting packing
Delivery Time: 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 30 sets/month
Product Description

High Efficiency Geotechnical Core Sample Drilling Machine Rig Core Drill Exploration Drilling Rigs



Description:



  1. Max. Lifting capacity of spindle: The maximum lifting capacity of the spindle is 60kN, which is the amount of weight that the spindle can lift.

  2. Max. Feeding force: The maximum feeding force of the XY-2T is 45kN, which is the amount of force that the rig can apply to the drill string to advance it into the ground.

  3. Max. hoisting force: The maximum hoisting force of the XY-2T is 30kN, which is the amount of force that the rig can apply to lift the drill string out of the ground.

  4. Electric motor power: The XY-2T is equipped with an electric motor with a power of 22kW, which is used to drive the drilling process.

  5. Diesel engine power: The XY-2T is also equipped with a diesel engine with a power of 31kW, which is used to power the rig when electricity is not available.

  6. Specification of mast: The mast of the XY-2T is 8000mm in height, and its base has an area of 3600×2100mm. The mast has two pulleys and a maximum load capacity of 75kN.

  7. Load of Moveable Work Platform: The moveable work platform of the XY-2T can support a maximum weight of 70kg.

  8. Adjusted angles of drill tower: The drill tower of the XY-2T can be adjusted to angles ranging from 45° to 90°, allowing for drilling on sloping or uneven terrain.




Tehnical Parameter:



Specifications Models
XY-2T
Drilling depth 300-500m
Max.torque 3147N·m
Spindle stroke 560mm
I.D of spindle 96mm
Max. Lifting capacity of spindle 60kN
Max. Feeding force 45kN
Max.hoisting force 30kN
electric motor power 22kW
Diesel Engine power 31kW
Specification of mast Models
XY-2T
Drill-tower height 8000mm
The area of the base 3600×2100mm
The number of Pulley 2
Max.Load of Mast 75kN
Load of Moveable Work Plateform 70Kg
Adjusted angles of drill tower 45°- 90°



Related Products:

HQ High Efficiency Exploration Drilling Equipment 500m Depth 0


Certificate


HQ High Efficiency Exploration Drilling Equipment 500m Depth 1

Customer Visting
HQ High Efficiency Exploration Drilling Equipment 500m Depth 2

Company Profile

HQ High Efficiency Exploration Drilling Equipment 500m Depth 3

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.




FAQ


Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.

Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.

Q: What is your payment terms?
A: We can accept T/T,L/C.

Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.

Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).

Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
