Product Description:

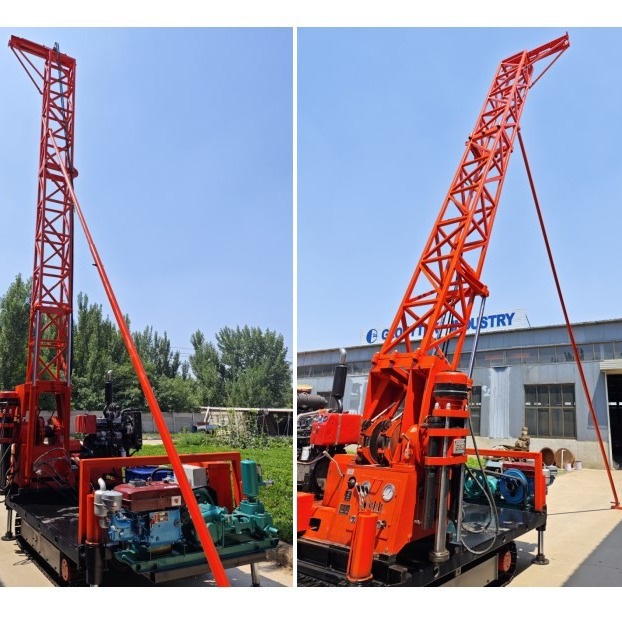

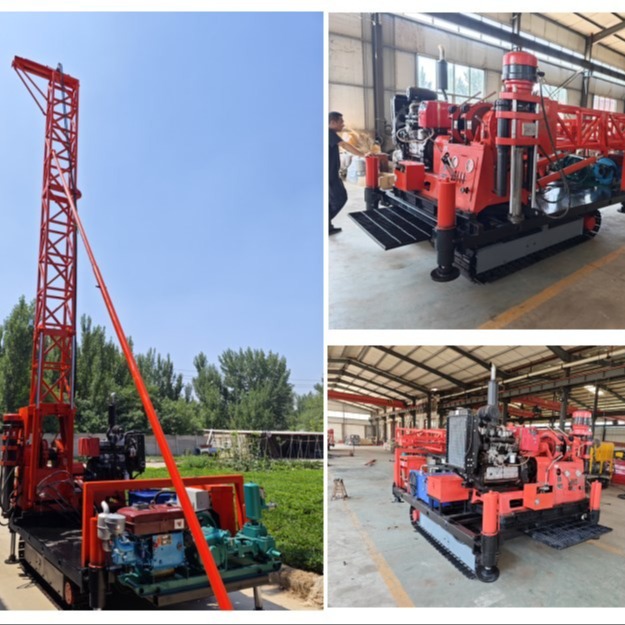

Exploration Drilling Rigs offer the perfect combination of high-capacity exploration and deep exploration capabilities. The GLXY-2T Crawler core drill rig is special designed for inclined hole drilling.
Geological general investigation and exploration, road and tall building groundstill exploration, kinds of investigation holes in concrete structure, river levees, subgrade grouting hole drilling and direct grouting, civil wells and earth central air conditioning wells, swallow and medium depth core drilling.
Technical Parameters:
| Parameter |
Value |
| Drilling Depth |
Up To 1,000 Feet |
| Max.Lifting Capacity(Single Rope) |
3000kgf |
| Motor Rated Power |
22kw |
| Hydraulic Tower Height |
8.5m |
| Drill-tower Height |
7.5/8.5m(Optional) |
| Weight(without Power Unit) |
1100kgs |
| Wire Rope Capacity |
50m |
| Weight(Power Unit) |
420kgs |
| Motor Rated Speed |
1470(r/min) |
| Cylinder Leg Stroke |
1000/1600mm(Optional) |
| Special Properties |
inclined hole drilling |
Support and Services:
Exploration Drilling Rigs Technical Support and Service
Warranty of GLXY-2T Crawler Core Drill Rig:
(1)Within the period of the first year after delivery, the main parts of Core Drilling Rig are guaranteed to be supplied free of charge once the problem caused by the quality issue.
(2) Service at working site: If need, our technical engineer can be dispatched to the working site for technical service,
but the expense of ticket, accommodation, diet, service charge shall be on buyer's account.
(3)Timely after-sale assistance shall be provided all the time.
Packing and Shipping:
The packaging and shipping of exploration drilling rigs is as follows:
- Exploration drilling rigs will be carefully packaged, using shockproof and water-resistant materials, to protect them from any damage during transportation.
- The packed exploration drilling rigs will be shipped out using reliable and secure delivery services.
- The delivery time for exploration drilling rigs will depend on the location of the customer.
