Product Description:
The core drill rig of full hydraulic and rotator adopted the technology of wire-line coring has been the dominant type rig for solid mineral deposits prospecting in developed counties in the world. It is also the developing direction of drilling technique and drilling equipment in China. Under these circumstances, Glorytek Drill has developed the GLDX-4 core drill rig successfully according to the situation of China. This type of drill rig could substitute imported products. It could be applied to exploration and prospecting of geology, metallurgy, coal, petroleum, natural gas, groundwater and other industries.

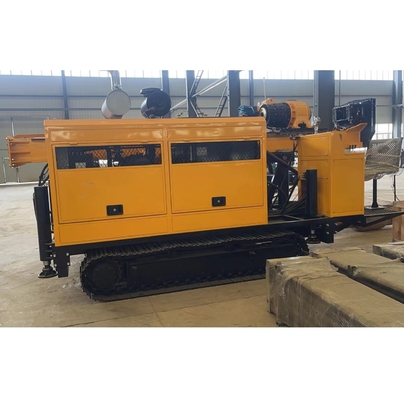

The rig is simple in structure. It is light and easy for transference; the mast has the functions of sliding and touching ground; the spindle lifted and lowered with hydraulic cylinder; it could be folded for transport and relocation. The spindle hole is in large diameter.
Technical Parameters:
| Diesel Engine | Model | Cummins 6BTA5.9-C180 (turbocharged and charge water cooled) | | Displacement | 5.9L (1.56 US Gallons) | | Power | 132Kw (180HP) | | Rated RPM(Factory setting) | 2200rpm | | Drilling Capacity | BQ | 1000m(3280feet) | | NQ | 700m(2296 feet) | | HQ | 500m(1640 feet) | | PQ | 300m(984 feet) | | Drill Head | RPM | Four Shifts/ Stepless Change 0-1100 RPM | | Max. Torque | 4200 N·m(3108lbf·ft) | | Hold Diameter | 98mm(3.85 inch) | | Max. Lifting capacity of Spindle | 150 kN(33720 lbf) | | Max. Feeding Power | 60 kN(13480 lbf) | | Primary Pump | Hydraulic pump
Axial Piston variable displacement Triplex pump for driving of rotator, winch mud pump & leveling jacks.
With load sensing system. | 1st Pump:140LPM at 30MPa | | 2nd Pump:120LPM at 25MPa | | 3rd Pump:50 LPM at 20MPa |
|
|---|
Support and Services:
Exploration Drilling Rigs Technical Support and Service
Warranty of GLDX-4 Full Hydraulic Crawler Core Drill Rig:
(1)Within the period of the first year after delivery, the main parts of Core Drilling Rig are guaranteed to be supplied free of charge once the problem caused by the quality issue.
(2) Service at working site: If need, our technical engineer can be dispatched to the working site for technical service,
but the expense of ticket, accommodation, diet, service charge shall be on buyer's account.
(3)Timely after-sale assistance shall be provided all the time.
Glorytek Industry (Beijing)Co.,Ltd.,
located in Beijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
FAQ:
Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit. Moreover, we have drilling equipments like mud pump, air compressor, etc. as well.
Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T.
Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver within 30days.
Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
