Product Description:
1)Reliable Performance
Basing on the guideline of purchasing the critical auxiliary equipment internationally, the diesel engine, the hydraulic pump, the main valves, the motors, crawler reducers and key hydraulic spare parts are all adopted famous brands products at home and abroad.
2)High Efficiency
With big torque, high power unit allocation and with reasonable structure design and advanced operation method and 6 meters (19.7 feet) length of drill rod, all these guarantee the drill rig’s high operation and performance efficiency.
3)Reliable Performance
Basing on the guideline of purchasing the critical auxiliary equipment internationally, the diesel engine, the hydraulic pump, the main valves, the motors, crawler reducers and key hydraulic spare parts are all adopted famous brands products at home and abroad.
4)High Efficiency
With big torque, high power unit allocation and with reasonable structure design and advanced operation method and 6 meters (19.7 feet) length of drill rod, all these guarantee the drill rig’s high operation and performance efficiency.
Technical Parameters:
The figures in these tables have been calculated, based on field experiences, and may be reasonably expected.
Actual drilling capacity will depend on in-hold tools and conditions, drilling techniques and equipment used.
| Diesel Engine | Model | Cummins 6CTA8.3-C195 (turbocharged and charge water cooled) | | Displacement | 8.3L (2.19 US Gallons) | | Power | 145kW (195HP) | | Rated RPM(Factory setting) | 2200rpm | | Drilling Capacity | BQ | 1500 m(4920 feet) | | NQ | 1300 m(4264 feet) | | HQ | 1000 m(3280 feet) | | PQ | 680 m(2230 feet) |
| Mast | Mast Height | 11.2 m(37.74 feet) | | Mast Adjusting Angle | 0°—90° | | Drilling Angle | 45°—90° | | Feeding Stroke | 3800 mm(150 inch) | | Slippage Stroke | 1100 mm(43.3 inch) | | Feed Pull | 15000kg(33075 lb) | | Feed Thrust | 7500kg(16538 lb) |
|
|
|---|
Field of Application:

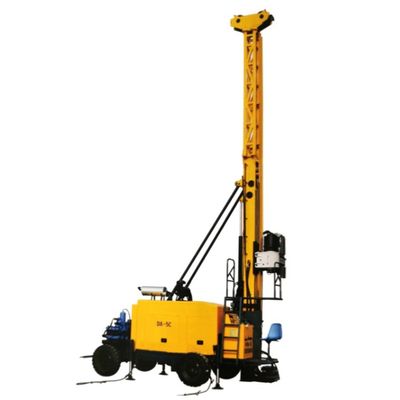

GLDX-5A(5C) Drill Rig is mainly used for slope and straight holes drilling. It could be used for exploration and prospecting of geology, metallurgy, coal, nuke industry, hydrology and for other industries fields. It is a core drilling rig by using diamond and carbide-tipped bits mainly.
Glorytek Industry (Beijing)Co.,Ltd.,
located in Beijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
FAQ:
Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit. Moreover, we have drilling equipments like mud pump, air compressor, etc. as well.
Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T.
Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver within 30days.
Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
