Name: 1500m GLDX-4 Core Drilling Rig Full Hydraulic For Exploration
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: GLDX-4
Price: 30,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: GLDX-4 Full Hydraulic Core Drilling Exploration Drilling Rigs

Keyword: Full Hydraulic Core Drilling Exploration Drilling Rigs

Depth: 1500m

Drill Dia.: BQ,NQ,HQ

Dimension: 5000×2200×1800mm

Ce: Ok

Highlight:

1500m core drilling rig

exploration full hydraulic core drilling rig

1500m mineral exploration drilling rigs

Basic Infomation

Place of Origin: China

Brand Name: GLORYTEK

Certification: CE

Model Number: GLDX-4

Payment & Shipping Terms

Packaging Details: Standard exporting packing

Delivery Time: 20 days

Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A

Supply Ability: 30 sets/month

Gallery

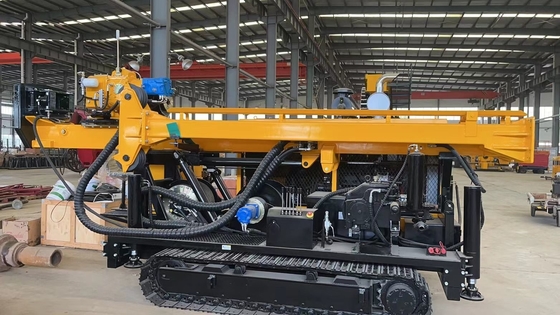

1500m GLDX-4 Core Drilling Rig Full Hydraulic For Exploration

Product Description

GLDX-4 Full Hydraulic Core Drilling Exploration Drilling Rigs

Description:

Glorytek Drill has developed the GLDX-4 Full Hydraulic Core Drilling Exploration Drilling Rig successfully according to the situation of China. This type of drill rig could substitute imported products. It could be applied to exploration and prospecting of geology, metallurgy, coal, petroleum, natural gas, groundwater and other industries.

The drilling capacity of the GLDX-4 drill rig for different drill sizes is as follows:

BQ Size: The GLDX-4 drill rig has a drilling capacity of 1000 meters (3280 feet) for BQ size. BQ is a standard drill rod size used in diamond core drilling. This size is commonly used for medium-depth drilling applications.

NQ Size: The GLDX-4 drill rig can drill up to 700 meters (2296 feet) for NQ size. NQ is another standard drill rod size used in diamond core drilling. It is typically used for shallower drilling compared to BQ size.

HQ Size: The GLDX-4 drill rig has a drilling capacity of 500 meters (1640 feet) for HQ size. HQ size drill rods are larger in diameter than BQ and NQ sizes, and they are used for drilling deeper holes.

PQ Size: The GLDX-4 drill rig can drill up to 300 meters (984 feet) for PQ size. PQ size drill rods are the largest in diameter and are used for drilling the deepest holes among the mentioned sizes.

Tehnical Parameter:

Diesel Engine	Model	Cummins 6BTA5.9-C180 (turbocharged and charge water cooled)
	Displacement	5.9L (1.56 US Gallons)
	Power	132Kw (180HP)
	Rated RPM(Factory setting)	2200rpm
Drilling Capacity	BQ	1000m(3280feet)
	NQ	700m(2296 feet)
	HQ	500m(1640 feet)
	PQ	300m(984 feet)
Drill Head	RPM	Four Shifts/ Stepless Change 0-1100 RPM
	Max. Torque	4200 N·m(3108lbf·ft)
	Hold Diameter	98mm(3.85 inch)
	Max. Lifting capacity of Spindle	150 kN(33720 lbf)
	Max. Feeding Power	60 kN(13480 lbf)
Primary Pump	Hydraulic pump Axial Piston variable displacement Triplex pump for driving of rotator, winch mud pump & leveling jacks. With load sensing system.	1st Pump:140LPM at 30MPa
		2nd Pump:120LPM at 25MPa
		3rd Pump:50 LPM at 20MPa
Hydraulic Tank	Capacity	310 L (82 US Gallons)

Customer Visting

1500m GLDX-4 Core Drilling Rig Full Hydraulic For Exploration 1

Company Profile

1500m GLDX-4 Core Drilling Rig Full Hydraulic For Exploration 2

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.

Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.

FAQ

Q: How can we choose a suitable water well drill rig?

A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.

Q: Are you a factory or a trading company ?

A: We are an integrated corporation specialized in manufacturing and exporting.

Q: What is your payment terms?

A: We can accept T/T,L/C.

Q:.What is your MOQ? How long is the delivery time?

A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.

Q:. How long is the warranty?

A: The guarantee period for mainframe is one year (excluding the quick wear parts).

Q: Can we print my Logo on the products?

A: Yes, we can. We support OEM .
