Name: Nq 1000m Exploration Drill Rig Full Hydraulic Fast Efficiency
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: GLDX-4
Price: 30,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: NQ 1000M Full Hydraulic Fast Efficiency Exploration Drilling Rig

Keyword: Fast Efficiency Exploration Drilling Rig

Depth: 1000m

Drill Dia.: NQ

Dimension: 5000×2200×1800mm

Ce: Ok

Highlight:

nq exploration drill rig

1000 m exploration drill rig

exploration drilling rigs 1000m

Basic Infomation

Place of Origin: China

Brand Name: GLORYTEK

Certification: CE

Model Number: GLDX-4

Payment & Shipping Terms

Packaging Details: Standard exporting packing

Delivery Time: 20 days

Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A

Supply Ability: 30 sets/month

Gallery

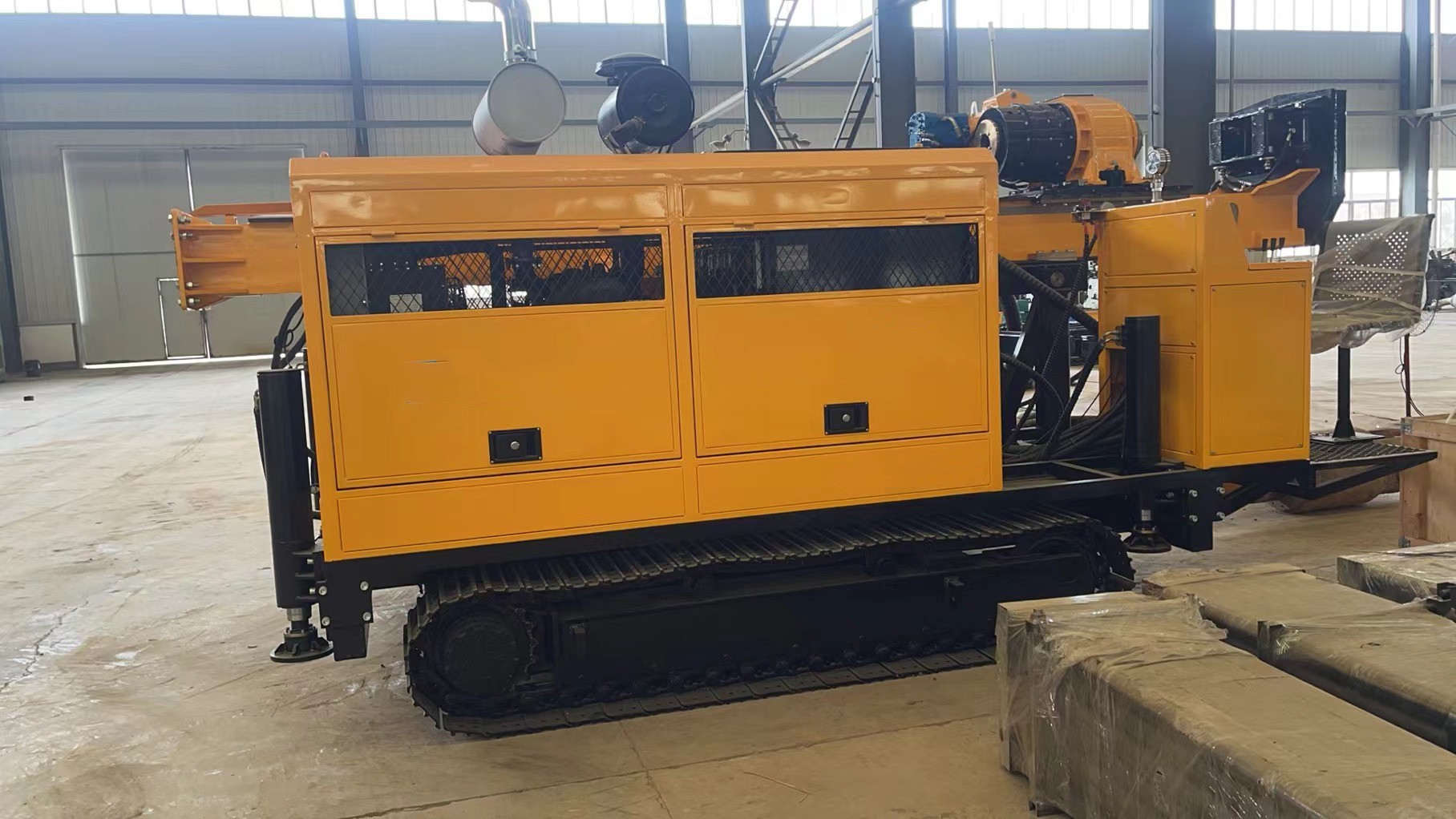

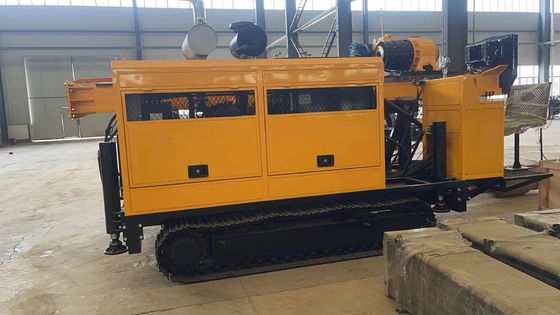

Nq 1000m Exploration Drill Rig Full Hydraulic Fast Efficiency

Product Description

NQ 1000M Full Hydraulic Fast Efficiency Exploration Drilling Rig

Description:

GLDX-4 Full Hydraulic Core Drilling Exploration Drilling Rig is manufactured by Glorytek, it can drill 1000M NQ wireline size.

It is a powerful and versatile machine used for drilling holes in the ground or rock formations. It utilizes hydraulic systems for various functions, offering several features that enhance its performance and efficiency.

Pullback System: The pullback system is responsible for retracting the drill string after drilling is complete. It applies hydraulic force to pull the drill string out of the hole efficiently.

Mast or Tower: A full hydraulic core drill rig typically features a mast or tower that provides stability and support to the drilling operation. The mast can be raised, lowered, or tilted as per the drilling requirements.

Tehnical Parameter:

Diesel Engine	Model	Cummins 6BTA5.9-C180 (turbocharged and charge water cooled)
	Displacement	5.9L (1.56 US Gallons)
	Power	132Kw (180HP)
	Rated RPM(Factory setting)	2200rpm
Drilling Capacity	BQ	1000m(3280feet)
	NQ	700m(2296 feet)
	HQ	500m(1640 feet)
	PQ	300m(984 feet)
Drill Head	RPM	Four Shifts/ Stepless Change 0-1100 RPM
	Max. Torque	4200 N·m(3108lbf·ft)
	Hold Diameter	98mm(3.85 inch)
	Max. Lifting capacity of Spindle	150 kN(33720 lbf)
	Max. Feeding Power	60 kN(13480 lbf)
Primary Pump	Hydraulic pump Axial Piston variable displacement Triplex pump for driving of rotator, winch mud pump & leveling jacks. With load sensing system.	1st Pump:140LPM at 30MPa
		2nd Pump:120LPM at 25MPa
		3rd Pump:50 LPM at 20MPa
Hydraulic Tank	Capacity	310 L (82 US Gallons)

Customer Visting

Nq 1000m Exploration Drill Rig Full Hydraulic Fast Efficiency 1

Company Profile

Nq 1000m Exploration Drill Rig Full Hydraulic Fast Efficiency 2

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.

Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.

FAQ

Q: How can we choose a suitable water well drill rig?

A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.

Q: Are you a factory or a trading company ?

A: We are an integrated corporation specialized in manufacturing and exporting.

Q: What is your payment terms?

A: We can accept T/T,L/C.

Q:.What is your MOQ? How long is the delivery time?

A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.

Q:. How long is the warranty?

A: The guarantee period for mainframe is one year (excluding the quick wear parts).

Q: Can we print my Logo on the products?

A: Yes, we can. We support OEM .
