Name: GLDX-5A NQ Diamond Core Drilling Rig Full Hydraulic Rope Coring 1300m
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: GLDX-5A
Price: 30,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: GLDX-5C Full Hydraulic Rope Coring Exploration Drilling Rigs For1300m Diamond Core Drilling

Keyword: Trailer Mineral Exploration Drilling Rigs

Depth: NQ 1300M

Drill Dia.: NQ

Dimension: 6250×2200×2730mm

Ce: Ok

Highlight:

NQ diamond core drilling rig

1300m diamond core drilling rig

1300m core drilling equipment

Basic Infomation

Place of Origin: China

Brand Name: GLORYTEK

Certification: CE

Model Number: GLDX-5A

Payment & Shipping Terms

Packaging Details: Standard exporting packing

Delivery Time: 20 days

Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P, D/A

Supply Ability: 30 sets/month

Gallery

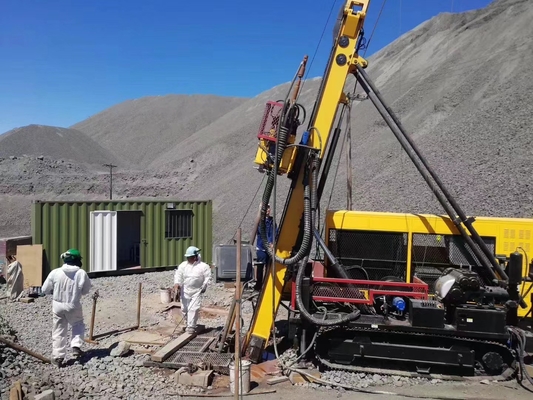

GLDX-5A NQ Diamond Core Drilling Rig Full Hydraulic Rope Coring 1300m

Product Description

GLDX-5A Full Hydraulic Rope Coring Exploration Drilling Rigs for1300m Diamond Core Drilling

Description:

The GLDX-5A Crawler Full Hydraulic Core Drill Rig is developed with reference of advanced technique of same kind equipment in China and abroad.

The drill head is driven by variable motor with function of two-speed mechanical gear shifts, stepless speed change, it is advanced and simple structure.

The drill rig is powered by hydraulic systems, which provide high torque and force for drilling operations. Hydraulic power ensures smooth and precise drilling performance.

If the piston rods of oil cylinder moving one certain distance, the drill head moving will double the distance.

Full hydraulic core drill rigs are versatile machines and can be used for a wide range of drilling applications. They can drill holes of various diameters and depths in different types of soil, rocks, and other geological formations.

GLDX-5A drill rig provides operator with a nice field of vision and wide and comfortable working condition. The rig looks pretty in overall structure and embodies the design thought of people oriented.

Tehnical Parameter:

Diesel Engine	Model	Cummins 6CTA8.3-C195 (turbocharged and charge water cooled)
	Displacement	8.3L (2.19 US Gallons)
	Power	145kW (195HP)
	Rated RPM(Factory setting)	2200rpm
Drilling Capacity	BQ	1500 m(4920 feet)
	NQ	1300 m(4264 feet)
	HQ	1000 m(3280 feet)
	PQ	680 m(2230 feet)
Drill Head	Rotation Motor	Double Hydraulic Motors –variable and Reversible
	Rotation Motor	Maker:SAUER-DANFOSS
	RPM	Two Shifts/ Stepless Change 0-1145 RPM
	Ratios	1st 8.776:1
	Ratios	2nd 2.716:1
	Head Opener	sidewise sliding way with hydraulic drive
	Max. Torque	4650 N·m(3427 lbf·ft)
	Hold Diameter	121 mm(4.76 inch)
	Max. Lifting capacity of Spindle	150 kN(33720 lbf)
	Max. Feeding Power	75 kN(16860 lbf)
Primary Pump Package	Axial Piston variable displacement Triplex pump for driving of Drill Head Rotation, Main Hoist, Mud Pump & Line Winch.	Maker: DANFOSS
		1st Pump:150LPM at 31.5MPa
		2nd Pump:120LPM at 28MPa
		3rd Pump:120 LPM at 28MPa
Hydraulic Tank	Capacity	420 L (111 US Gallons)
Capacity of Main Hoist	Hoisting Speed (single wire)	44m/min(bare drum)
	Hoisting force (single wire)	77kN(17310 lbf)
	Steel Wire Diameter	18 mm(0.71 inch)
	Steel Wire Length	60 m(196.85 feet)
Mast	Mast Height	11.2 m(37.74 feet)
	Mast Adjusting Angle	0°—90°
	Drilling Angle	45°—90°
	Feeding Stroke	3800 mm(150 inch)
	Slippage Stroke	1100 mm(43.3 inch)
	Feed Pull	15000kg(33075 lb)
	Feed Thrust	7500kg(16538 lb)
Mud Pump	Type	Reciprocating Pump Triplex Plunger
	Model	BW250
	Stroke	100mm(3.9 inch)
	Output volume	250,145, 90, 52 L/min (66, 38, 24, 14 US Gallons/min)
	Discharge pressure	2.5, 4.5, 6.0, 6.0 Mpa (363, 653, 870, 870 psi)
Foot Clamp	Clamping Scope	55.5-117.5 mm(2.18-4.63 inch)
Foot Clamp	Clamping Scope	through hole Ф154mm(6.06 inch)
Tyre-drawing Type	Weight	10000 Kg
Tyre-drawing Type	Dimensions (L × W ×H )	6250×2200×2730mm(20.5×7.22×8.96 ft))

Customer Visting

GLDX-5A NQ Diamond Core Drilling Rig Full Hydraulic Rope Coring 1300m 1

Company Profile

GLDX-5A NQ Diamond Core Drilling Rig Full Hydraulic Rope Coring 1300m 2

Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.

Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.

FAQ

Q: How can we choose a suitable water well drill rig?

A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.

Q: Are you a factory or a trading company ?

A: We are an integrated corporation specialized in manufacturing and exporting.

Q: What is your payment terms?

A: We can accept T/T,L/C.

Q:.What is your MOQ? How long is the delivery time?

A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.

Q:. How long is the warranty?

A: The guarantee period for mainframe is one year (excluding the quick wear parts).

Q: Can we print my Logo on the products?

A: Yes, we can. We support OEM .
