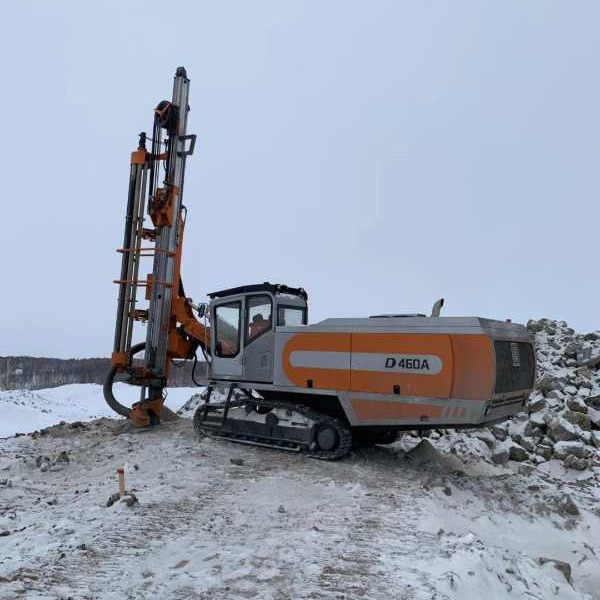

Glorytek Industry (Beijing) Co., Ltd. presents the Surface Drill Rig with High Quality Drill Equipments. This crawler drill rig features an on-board air compressor and is designed for mining rock drilling. With its high pressure and rotary drilling capabilities, it is a reliable and efficient drilling machinery. Experience the power of this rock drilling rig with integrated DTH technology and a spacious cabin for operator comfort. Choose this surface drill rig for high-quality drilling equipment and exceptional performance
The Surface Drill Rig with High Quality Drill Equipments, manufactured by Glorytek Industry (Beijing) Co., Ltd., offers a range of advanced features and benefits for efficient and reliable drilling operations.
Tehnical Parameter
| Main Specifications | D460A |
| Diesel Enggine | |
| Model | QSL8.9 |
| Manufacturer | Cummins (DCEC) |
| Rated Power | 264KW |
| Rotation Speed | 1900rpm |
| Capacity of Fuel Tank | 750L |
| Screw Compressor | |
| Air end Manufacturer | JIUE |
| Model | GE825 |
| F.A.D | 19m3/min |
| Working pressure (max.) | 21bar |
| Function Specifications | |
| Hole Range | 115-152mm |
| Hole Depth | 35m |
| Drill Pipe dia. | 102mm |
| Drill pipe handling system | 6+1 |
| Hammer | 4" or 5" |
| Rotation Speed | 0-105rpm |
| Rotation torque | 4435N.M |
| Drill pipe length | 5m |
| Boom & Feed | |
| Boom type | single straight boom |
| Length of feed beam | 9000mm |
| Feed extension | 1300mm |
| Feed force(max.) | 34.5kN |
| Feed type | cylinder/wire |
| Travel length | 5600mm |
| Feed rate(max.) | 0.88m/s |
| Lifting force( max.) | 67.6kN |
| Chassis | |
| Tramming Speed | High: 3km/h |
| Low: 1.5km/h | |
| Climbing Ability( Max.) | 25° |
| Ground Clearance | 420mm |
| Traction force | 156.2kN |
| Track Oscillation | ±10° |
| Weight & Dimensions | |
| Width | 2700mm |
| Length | 11550mm |
| Height | 3560mm |
| Weight(w/o option) | 22000kg |
Explore our high-quality surface drill rig equipped with an on-board air compressor. Perfect for mining and rock drilling, our DTH drill rig offers exceptional performance and reliability. Choose Glorytek for all your drilling equipment needs.
We can supply air compressor, dth hammer, dth bit and drill pipe to work with mining dth drill rigs, clients can choose according to their project.
Glorytek Industry (Beijing) Co., Ltd. is a leading manufacturer and exporter of top-quality drilling equipment and parts. With over 20 years of experience, we have established ourselves as a trusted name in the industry.
Supported by a highly experienced R&D team and engineers, we are able to successfully complete all assigned projects according to our clients' requirements.
Our state-of-the-art factory spans an area of 250,000 square meters, with a construction area of approximately 150,000 square meters. Equipped with over 200 sets of machinery, including machining machinery, CNC processing centers, friction welding machines, and testing equipment, we have the capacity to meet the demands of our customers.
Our products have been exported to more than 60 countries worldwide, including Australia, Russia, South Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, and Haiti.
Our Surface Drill Rig is a high-quality drilling equipment designed for various drilling applications. It is equipped with advanced features and cutting-edge technology to ensure efficient and precise drilling operations.
Key Features:
Benefits:
Whether you need to drill in challenging terrains or demanding environments, our Surface Drill Rig with High Quality Drill Equipments is the perfect choice. Contact us today to learn more about our product and how it can meet your drilling needs.
1. Drilling machine is bare packing, load into 40HQ container.
2. Drilling tools will be packed in cases or wooden boxes.
3.The delivery time for machine normally be 25-30 days after receiving payment. The drilling tools normally 3-5days if in stock.
4. Shipping by sea, air or express are all available.
