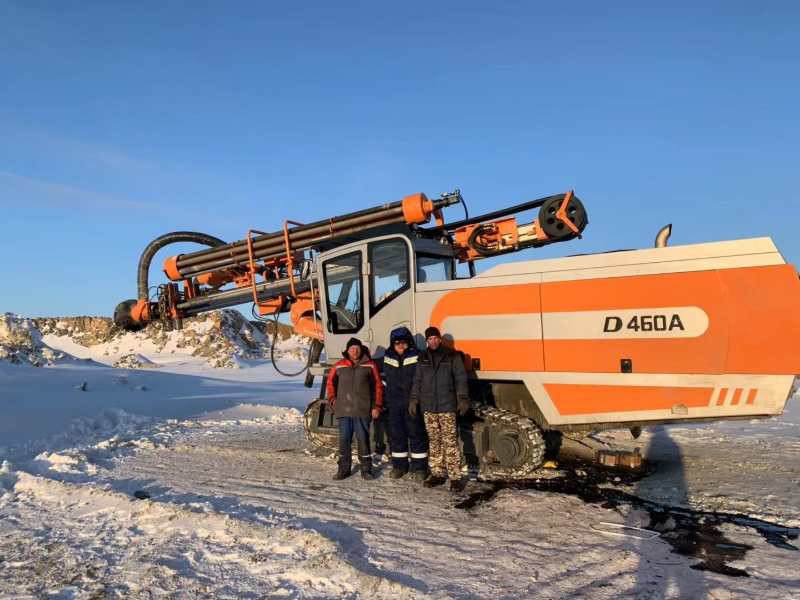

Introducing our high-quality Crawler Drilling Rig with Air Compressor on Board, designed to meet all your drilling needs with efficiency and convenience.
Experience the excellence of our Crawler Drilling Rig with Air Compressor on Board, brought to you by Glorytek Industry (Beijing) Co., Ltd. Trust in our high-quality drilling equipment to enhance your drilling operations.
Introducing our Crawler Drilling Rig with Air Compressor on Board. This high-quality, high-pressure DTH Drill Rig is perfect for mining and rock drilling. Our drilling equipment is reliable and efficient, making it the ideal choice for any drilling project.
Tehnical Parameter
| Main Specifications | D460A |
| Diesel Enggine | |
| Model | QSL8.9 |
| Manufacturer | Cummins (DCEC) |
| Rated Power | 264KW |
| Rotation Speed | 1900rpm |
| Capacity of Fuel Tank | 750L |
| Screw Compressor | |
| Air end Manufacturer | JIUE |
| Model | GE825 |
| F.A.D | 19m3/min |
| Working pressure (max.) | 21bar |
| Function Specifications | |
| Hole Range | 115-152mm |
| Hole Depth | 35m |
| Drill Pipe dia. | 102mm |
| Drill pipe handling system | 6+1 |
| Hammer | 4" or 5" |
| Rotation Speed | 0-105rpm |
| Rotation torque | 4435N.M |
| Drill pipe length | 5m |
| Boom & Feed | |
| Boom type | single straight boom |
| Length of feed beam | 9000mm |
| Feed extension | 1300mm |
| Feed force(max.) | 34.5kN |
| Feed type | cylinder/wire |
| Travel length | 5600mm |
| Feed rate(max.) | 0.88m/s |
| Lifting force( max.) | 67.6kN |
| Chassis | |
| Tramming Speed | High: 3km/h |
| Low: 1.5km/h | |
| Climbing Ability( Max.) | 25° |
| Ground Clearance | 420mm |
| Traction force | 156.2kN |
| Track Oscillation | ±10° |
| Weight & Dimensions | |
| Width | 2700mm |
| Length | 11550mm |
| Height | 3560mm |
| Weight(w/o option) | 22000kg |
Explore our high-quality surface drill rig equipped with an on-board air compressor. Perfect for mining and rock drilling, our DTH drill rig offers exceptional performance and reliability. Choose Glorytek for all your drilling equipment needs.
We can supply air compressor, dth hammer, dth bit and drill pipe to work with mining dth drill rigs, clients can choose according to their project.
For over 20 years, we have been dedicated to manufacturing and exporting top-quality drilling equipment and parts. Our highly experienced R&D team and engineers ensure that we successfully complete all projects according to our clients' requirements.
Our factory, spanning an impressive 250,000 square meters, with a construction area of about 150,000 square meters, is equipped with state-of-the-art machinery, including machining machinery, CNC processing centers, friction welding machines, and testing equipment. With over 200 sets of machinery and a team of more than 600 skilled employees, we are committed to delivering excellence.
Our products have reached more than 60 countries worldwide, including Australia, Russia, South Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, and Haiti.
Our Crawler Drilling Rig with Air Compressor on Board is a high-quality surface drill rig designed for efficient and reliable drilling operations. With its advanced features and cutting-edge technology, this rig is perfect for various drilling applications in the mining industry.
Key Features:
Benefits:
Choose our Crawler Drilling Rig with Air Compressor on Board for your drilling needs and experience exceptional performance and reliability. Contact us today for more information!
1. Drilling machine is bare packing, load into 40HQ container.
2. Drilling tools will be packed in cases or wooden boxes.
3.The delivery time for machine normally be 25-30 days after receiving payment. The drilling tools normally 3-5days if in stock.
4. Shipping by sea, air or express are all available.
