Product Description:

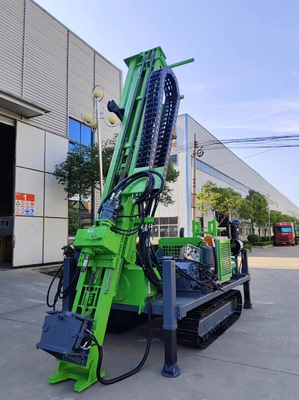

In addition to its impressive drilling capabilities, this Exploration Drilling Rig is equipped with a Foot Clamp Through-hole of 146mm, ensuring stable and secure drilling operations. The rig's feed stroke of 3.5m allows for deep drilling operations, making it ideal for geological exploration in challenging environments.
Whether you're exploring for minerals, oil, or water resources, our high-capacity Exploration Rig is the ideal choice for your drilling needs. It's designed to handle the toughest drilling conditions and deliver accurate and reliable results.
| Model |
GL-600 |
GL-800 |
GL-1000A |
GL-1000B |
GL-1600A |
GL-1600B |
| Drilling Capacity |
BTW (m) BQ |
650 |
1200 |
1400 |
1400 |
1800 |
1800 |
| NTW (m) NQ |
600 |
1000 |
1200 |
1200 |
1600 |
1600 |
| HTW (m) HQ |
300 |
800 |
1000 |
1000 |
1200 |
1200 |
| PQ (m) |
|
600 |
800 |
800 |
1000 |
1000 |
| Hydraulic system |
Rated pressure MPa |
Main pump :95ml/r.32MPa
Auxiliary pump: 80ml/r.25MPa
|
Main pump :95ml/r.32MPa
Auxiliary pump: 80ml/r.25MPa
|
Main pump :115ml/r.32MPa
Auxiliary pump: 80ml/r.25MPa
|
Main pump :115ml/r.32MPa
Auxiliary pump: 80ml/r.25MPa
|
Main pump :145ml/r.32MPa
Auxiliary pump: 80ml/r.25MPa
|
Main pump :145ml/r.32MPa
Auxiliary pump: 80ml/r.25MPa
|
| Cooling method |
Water Cooling |
Air cooling and water cooling |
Air cooling and water cooling |
Air cooling and water cooling |
Air cooling and water cooling |
Air cooling and water cooling |
| Engine parameters |
Model |
Yuchai 4-Cylinder 92kW |
Yuchai 6-Cylinder 92kw |
Weichai 6-cylinder 129kw |
Weichai 6-cylinder 129kw |
Weichai 6-cylinder 147kw |
Cummins 6-cylinder 154kw |
| Rated power Kw |
92 |
92 |
129 |
129 |
147 |
154 |
| Rated speed rpm |
2200 |
2200 |
2200 |
2300 |
2300 |
2300 |
| Power head parameters |
Maximum torque N.m |
1400 |
1800 |
1800 |
2600 |
3500 |
3500 |
| Maximum speed rpm |
1400 |
1400 |
1400 |
1400 |
1400 |
1400 |
| Feed stroke m |
1.8 |
1.8 |
1.8 |
3.5 |
3.5 |
3.5 |
| Lifting force kN |
240 |
300 |
360 |
360 |
400 |
400 |
| Thrust force kN |
120 |
150 |
180 |
180 |
200 |
200 |
| Wireline coring Winch Parameters |
Rope capacity m |
800 |
1000 |
1200 |
1200 |
1600 |
1600 |
| Lifting force kN |
15 |
20 |
24 |
24 |
31 |
31 |
| Lifting speed m/min |
110 |
110 |
110 |
110 |
110 |
110 |
| Wire rope diameter mm |
6 |
6 |
8 |
8 |
8 |
8 |
|
Mast
Parameters
|
Total height/m |
6.1 |
6 |
6.6 |
8.5 |
8.5 |
8.5 |
| Drilling angle° |
45-90 |
0-90 |
0-90 |
0-90 |
0-90 |
0-90 |
| Sliding stroke mm |
800 |
1200 |
1200 |
1200 |
1200 |
1200 |
| Foot Clamp parameters |
BQ/NQ/HQ/PQ |
Foot Clamp through-hole 146mm |
Foot Clamp through-hole 146mm |
Foot Clamp through-hole 146mm |
Foot Clamp through-hole 146mm |
Foot Clamp through-hole 146mm |
|
Track
parameter
|
Maximum load-bearing capacity t/
Climbing angle °
|
6/20 |
6/20 |
8/20 |
9/20 |
10/20 |
10/20 |
| Maximum driving speed km/h |
2 |
2 |
2 |
2 |
2 |
2 |
| Mud pump |
BW100 |
BW100 |
BW100 |
BW160 |
BW160 |
BW160 |
|
Transport
dimensions
|
Length*Width*Height:mm |
4500*1900*2300 |
4600*1900*2650 |
5900*2100*2800 |
5900*2200*3000 |
6100*2200*3050 |
6100*2200*3050 |
| Total Weight(t) |
4.6 |
7.5 |
7.8 |
8.8 |
10 |
10 |
Applications:
Glorytek Exploration Drilling Rigs, model GL-1000A, is a high-capacity deep exploration rig that is designed to meet the demands of geological exploration in various terrains. This product is manufactured in China and comes with certifications such as CE, TUV, and SGS, ensuring its quality and safety standards.
The GL-1000A is a powerful machine with a diesel engine power of 129kw that can be used for deep exploration drilling in challenging terrains. The foot clamp through-hole of 146mm ensures stable drilling, and the mud pump BW160 helps to maintain the drilling process by pumping mud into the borehole.
This exploration drilling rig is suitable for various occasions and scenarios, including mineral exploration, oil and gas exploration, geothermal exploration, and other geological survey applications. Its high-capacity drilling capabilities make it a suitable option for deep exploration and drilling projects.
The GL-1000A is available for purchase with a minimum order quantity of 1 set for a price of 44000. It comes with seaworthy packing and has a delivery time of around 20 days after advance payment. Payment terms include a 30% advance payment by T/T after issuing a proforma invoice and a 70% remaining payment by T/T before dispatching from Glorytek's factory. The product has a supply ability of 10 sets every month.
In summary, if you are looking for a high-capacity, deep exploration rig for your geological survey or exploration projects, the Glorytek Exploration Drilling Rigs model GL-1000A is an excellent option that provides reliable and efficient drilling capabilities.
Packing and Shipping:
Product Packaging:
- The exploration drilling rigs will be securely packaged in sturdy wooden crates to ensure safe transportation.
- All components and accessories will be carefully wrapped and cushioned to prevent any damage during shipping.
- Each crate will be labeled with the product name, dimensions, weight, and handling instructions for easy identification and handling.
Shipping:
- Shipping will be arranged by our logistics team, and delivery options and costs will be provided to the customer prior to shipment.
- We work with trusted and reliable carriers to ensure prompt and safe delivery of our products.
- Tracking information will be provided to the customer once the product has been shipped.
- Any issues or concerns with shipping or delivery should be reported to our customer service team for prompt resolution.
FAQ:
Here are the frequently asked questions and answers about the Glorytek Exploration Drilling Rigs:
Q: What is the brand name of this product?
A: The brand name of this product is Glorytek.
Q: What is the model number of this product?
A: The model number of this product is GL-1000A.
Q: What is the place of origin of this product?
A: The place of origin of this product is China.
Q: What certifications does this product have?
A: This product has CE, TUV, and SGS certifications.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1 set.
Q: What is the price of this product?
A: The price of this product is $44000.
Q: How is this product packaged?
A: This product is packaged in seaworthy packing.
Q: What is the delivery time for this product?
A: The delivery time for this product is around 20 days after your advance payment.
Q: What are the payment terms for this product?
A: The payment terms for this product are 30% advance payment by T/T after issuing proforma invoice, 70% remaining payment by T/T before dispatching from our factory.
Q: What is the supply ability of this product?
A: The supply ability of this product is 10 sets every month.
