Product Description:

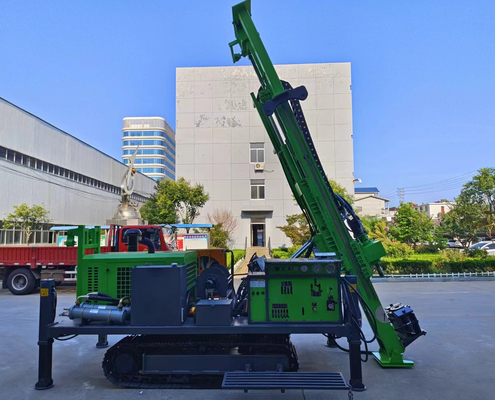

The GL-1000A Exploration Drilling Rig is specifically designed to reach depths of up to 1400m, making it the perfect choice for deep exploration projects. With its mast height of 8.5m, this rig is capable of drilling through even the toughest geological formations, ensuring that you get accurate and reliable data every time.
One of the standout features of the GL-1000A Exploration Drilling Rig is its foot clamp system. This rig comes equipped with a Foot Clamp Through-hole 146mm, ensuring that the rig stays firmly in place during drilling operations. This feature not only enhances safety but also ensures that the drilling process is carried out smoothly and efficiently.
Overall, the GL-1000A Exploration Drilling Rig is the perfect choice for companies looking for a powerful and reliable rig for deep exploration projects. With its exceptional drilling capabilities and robust build, this rig is sure to deliver accurate and reliable data, making it an essential tool for any exploration project.
| Model |
GL-600 |
GL-800 |
GL-1000A |
GL-1000B |
GL-1600A |
GL-1600B |
| Drilling Capacity |
BTW (m) BQ |
650 |
1200 |
1400 |
1400 |
1800 |
1800 |
| NTW (m) NQ |
600 |
1000 |
1200 |
1200 |
1600 |
1600 |
| HTW (m) HQ |
300 |
800 |
1000 |
1000 |
1200 |
1200 |
| PQ (m) |
|
600 |
800 |
800 |
1000 |
1000 |
| Hydraulic system |
Rated pressure MPa |
Main pump :95ml/r.32MPa
Auxiliary pump: 80ml/r.25MPa
|
Main pump :95ml/r.32MPa
Auxiliary pump: 80ml/r.25MPa
|
Main pump :115ml/r.32MPa
Auxiliary pump: 80ml/r.25MPa
|
Main pump :115ml/r.32MPa
Auxiliary pump: 80ml/r.25MPa
|
Main pump :145ml/r.32MPa
Auxiliary pump: 80ml/r.25MPa
|
Main pump :145ml/r.32MPa
Auxiliary pump: 80ml/r.25MPa
|
| Cooling method |
Water Cooling |
Air cooling and water cooling |
Air cooling and water cooling |
Air cooling and water cooling |
Air cooling and water cooling |
Air cooling and water cooling |
| Engine parameters |
Model |
Yuchai 4-Cylinder 92kW |
Yuchai 6-Cylinder 92kw |
Weichai 6-cylinder 129kw |
Weichai 6-cylinder 129kw |
Weichai 6-cylinder 147kw |
Cummins 6-cylinder 154kw |
| Rated power Kw |
92 |
92 |
129 |
129 |
147 |
154 |
| Rated speed rpm |
2200 |
2200 |
2200 |
2300 |
2300 |
2300 |
| Power head parameters |
Maximum torque N.m |
1400 |
1800 |
1800 |
2600 |
3500 |
3500 |
| Maximum speed rpm |
1400 |
1400 |
1400 |
1400 |
1400 |
1400 |
| Feed stroke m |
1.8 |
1.8 |
1.8 |
3.5 |
3.5 |
3.5 |
| Lifting force kN |
240 |
300 |
360 |
360 |
400 |
400 |
| Thrust force kN |
120 |
150 |
180 |
180 |
200 |
200 |
| Wireline coring Winch Parameters |
Rope capacity m |
800 |
1000 |
1200 |
1200 |
1600 |
1600 |
| Lifting force kN |
15 |
20 |
24 |
24 |
31 |
31 |
| Lifting speed m/min |
110 |
110 |
110 |
110 |
110 |
110 |
| Wire rope diameter mm |
6 |
6 |
8 |
8 |
8 |
8 |
|
Mast
Parameters
|
Total height/m |
6.1 |
6 |
6.6 |
8.5 |
8.5 |
8.5 |
| Drilling angle° |
45-90 |
0-90 |
0-90 |
0-90 |
0-90 |
0-90 |
| Sliding stroke mm |
800 |
1200 |
1200 |
1200 |
1200 |
1200 |
| Foot Clamp parameters |
BQ/NQ/HQ/PQ |
Foot Clamp through-hole 146mm |
Foot Clamp through-hole 146mm |
Foot Clamp through-hole 146mm |
Foot Clamp through-hole 146mm |
Foot Clamp through-hole 146mm |
|
Track
parameter
|
Maximum load-bearing capacity t/
Climbing angle °
|
6/20 |
6/20 |
8/20 |
9/20 |
10/20 |
10/20 |
| Maximum driving speed km/h |
2 |
2 |
2 |
2 |
2 |
2 |
| Mud pump |
BW100 |
BW100 |
BW100 |
BW160 |
BW160 |
BW160 |
|
Transport
dimensions
|
Length*Width*Height:mm |
4500*1900*2300 |
4600*1900*2650 |
5900*2100*2800 |
5900*2200*3000 |
6100*2200*3050 |
6100*2200*3050 |
| Total Weight(t) |
4.6 |
7.5 |
7.8 |
8.8 |
10 |
10 |
Applications:
The GL-1000A Exploration Drilling Rig is suitable for various occasions and scenarios such as the exploration of minerals, oil, and gas. It is also ideal for geological surveys and subsea exploration. The rig's diesel engine power of 129kw allows it to operate efficiently even in harsh environments. Its sliding stroke of 1200mm and feed stroke of 3.5m make it easy to drill deep into the ground and collect samples for analysis.
The product is packed in a seaworthy manner to ensure safe delivery to the customer's location. To purchase the GL-1000A Exploration Drilling Rig, customers need to make a 30% advance payment via T/T after receiving a proforma invoice. The remaining 70% payment must be made before dispatching the product from the factory. The company has a supply ability of 10 sets every month, making it possible for customers to make bulk orders.
In conclusion, the GL-1000A Exploration Drilling Rig is a versatile product that can be used in various geological exploration scenarios. Its superior design and quality make it a reliable tool for collecting samples and conducting surveys. The rig is available for purchase at an affordable price and can be delivered within a short period. Customers can confidently place their orders and expect a high-quality product that meets their expectations.
Packing and Shipping:
Product Packaging:
- Each exploration drilling rig will be securely packed in a wooden crate.
- The crate will be labeled with the product name, quantity, and weight.
Shipping:
- Shipping will be arranged by the seller and will be done via sea or air transport.
- The shipping cost will be included in the final invoice.
- The estimated delivery time will be communicated to the buyer once the product is ready to be shipped.
- The buyer will be responsible for any additional customs duties or taxes imposed by their country.
FAQ:
Q: What is the brand name of the exploration drilling rigs?
A: The brand name of the exploration drilling rigs is Glorytek.
Q: What is the model number of the drilling rig?
A: The model number of the drilling rig is GL-1000A.
Q: Where is the drilling rig manufactured?
A: The drilling rig is manufactured in China.
Q: What certifications does the drilling rig have?
A: The drilling rig has CE, TUV, and SGS certifications.
Q: What is the minimum order quantity for the drilling rig?
A: The minimum order quantity for the drilling rig is 1 set.
Q: What is the price of the drilling rig?
A: The price of the drilling rig is $44000.
Q: What are the packaging details of the drilling rig?
A: The drilling rig comes with seaworthy packing.
Q: What is the delivery time for the drilling rig?
A: The delivery time for the drilling rig is around 20 days after your advance payment.
Q: What are the payment terms for purchasing the drilling rig?
A: The payment terms for purchasing the drilling rig are 30% advance payment by T/T after issuing proforma invoice, and 70% remaining payment by T/T before dispatching from our factory.
Q: What is the supply ability of the drilling rig?
A: The supply ability of the drilling rig is 10 sets every month.
