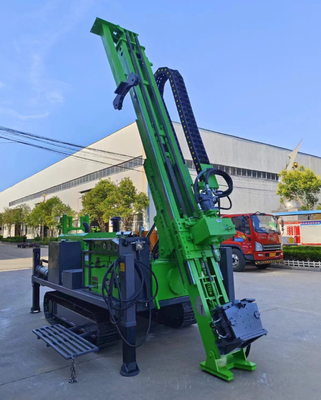

Product Description:
With a mast height of 8.5m and transport dimensions of 5900*2200*3000mm, this rig is designed for maximum efficiency and performance. It's built to withstand the toughest conditions, whether you're exploring deep beneath the sea or drilling on the ocean floor.
Our wireline coring options include BTW, BQ, NTW, NQ, HTW, HQ, and PQ (m), giving you the flexibility to choose the right coring method for your specific exploration needs. With a maximum torque of 1800N.m, you can be sure that this rig can handle even the toughest drilling conditions.
When it comes to drilling depth, our Exploration Drilling Rigs can go as deep as 1400m, making it one of the most versatile and reliable rigs available on the market today. Whether you're exploring for oil and gas, minerals, or other natural resources, this rig is designed to deliver the performance and results you need.
So why wait? Contact us today to learn more about our Exploration Drilling Rigs and how they can help you take your exploration efforts to the next level.
| Model |
GL-600 |
GL-800 |
GL-1000A |
GL-1000B |
GL-1600A |
GL-1600B |
| Drilling Capacity |
BTW (m) BQ |
650 |
1200 |
1400 |
1400 |
1800 |
1800 |
| NTW (m) NQ |
600 |
1000 |
1200 |
1200 |
1600 |
1600 |
| HTW (m) HQ |
300 |
800 |
1000 |
1000 |
1200 |
1200 |
| PQ (m) |
|
600 |
800 |
800 |
1000 |
1000 |
| Hydraulic system |
Rated pressure MPa |
Main pump :95ml/r.32MPa
Auxiliary pump: 80ml/r.25MPa
|
Main pump :95ml/r.32MPa
Auxiliary pump: 80ml/r.25MPa
|
Main pump :115ml/r.32MPa
Auxiliary pump: 80ml/r.25MPa
|
Main pump :115ml/r.32MPa
Auxiliary pump: 80ml/r.25MPa
|
Main pump :145ml/r.32MPa
Auxiliary pump: 80ml/r.25MPa
|
Main pump :145ml/r.32MPa
Auxiliary pump: 80ml/r.25MPa
|
| Cooling method |
Water Cooling |
Air cooling and water cooling |
Air cooling and water cooling |
Air cooling and water cooling |
Air cooling and water cooling |
Air cooling and water cooling |
| Engine parameters |
Model |
Yuchai 4-Cylinder 92kW |
Yuchai 6-Cylinder 92kw |
Weichai 6-cylinder 129kw |
Weichai 6-cylinder 129kw |
Weichai 6-cylinder 147kw |
Cummins 6-cylinder 154kw |
| Rated power Kw |
92 |
92 |
129 |
129 |
147 |
154 |
| Rated speed rpm |
2200 |
2200 |
2200 |
2300 |
2300 |
2300 |
| Power head parameters |
Maximum torque N.m |
1400 |
1800 |
1800 |
2600 |
3500 |
3500 |
| Maximum speed rpm |
1400 |
1400 |
1400 |
1400 |
1400 |
1400 |
| Feed stroke m |
1.8 |
1.8 |
1.8 |
3.5 |
3.5 |
3.5 |
| Lifting force kN |
240 |
300 |
360 |
360 |
400 |
400 |
| Thrust force kN |
120 |
150 |
180 |
180 |
200 |
200 |
| Wireline coring Winch Parameters |
Rope capacity m |
800 |
1000 |
1200 |
1200 |
1600 |
1600 |
| Lifting force kN |
15 |
20 |
24 |
24 |
31 |
31 |
| Lifting speed m/min |
110 |
110 |
110 |
110 |
110 |
110 |
| Wire rope diameter mm |
6 |
6 |
8 |
8 |
8 |
8 |
|
Mast
Parameters
|
Total height/m |
6.1 |
6 |
6.6 |
8.5 |
8.5 |
8.5 |
| Drilling angle° |
45-90 |
0-90 |
0-90 |
0-90 |
0-90 |
0-90 |
| Sliding stroke mm |
800 |
1200 |
1200 |
1200 |
1200 |
1200 |
| Foot Clamp parameters |
BQ/NQ/HQ/PQ |
Foot Clamp through-hole 146mm |
Foot Clamp through-hole 146mm |
Foot Clamp through-hole 146mm |
Foot Clamp through-hole 146mm |
Foot Clamp through-hole 146mm |
|
Track
parameter
|
Maximum load-bearing capacity t/
Climbing angle °
|
6/20 |
6/20 |
8/20 |
9/20 |
10/20 |
10/20 |
| Maximum driving speed km/h |
2 |
2 |
2 |
2 |
2 |
2 |
| Mud pump |
BW100 |
BW100 |
BW100 |
BW160 |
BW160 |
BW160 |
|
Transport
dimensions
|
Length*Width*Height:mm |
4500*1900*2300 |
4600*1900*2650 |
5900*2100*2800 |
5900*2200*3000 |
6100*2200*3050 |
6100*2200*3050 |
| Total Weight(t) |
4.6 |
7.5 |
7.8 |
8.8 |
10 |
10 |
Applications:
The GL-1000A is perfect for a variety of exploration drilling scenarios, both onshore and offshore. Its mud pump, the BW160, provides the necessary power for drilling in tough environments, while the maximum torque of 1800N.m ensures that the rig can handle even the most challenging rock formations. The Foot Clamp Through-hole 146mm provides stability and precision during drilling, and the drilling angle of 0-90° allows for flexibility in your drilling approach.
Whether you are drilling for oil, gas, or minerals, the GL-1000A is the perfect tool for the job. Its feed stroke of 3.5m allows for deep drilling, while the seaworthy packaging ensures that the rig will arrive at your location in perfect condition.
With a delivery time of around 20 days after your advance payment, and payment terms of 30% advance payment by T/T after issuing proforma invoice, 70% remaining payment by T/T before dispatching from our factory, you can rest assured that your Exploration Drilling Rig will be delivered on time and on budget. And with a supply ability of 10 sets every month, you can be confident that you will always have access to this powerful tool whenever you need it.
Packing and Shipping:
Product Packaging:
- Exploration drilling rig
- Drill bits and tools
- User manual and safety instructions
- Protective covering
Shipping:
- Ships in a sturdy wooden crate
- Includes insurance for shipping damages
- Shipped via standard ground shipping
- Shipping times may vary depending on destination
FAQ:
Q: What is the brand name of the exploration drilling rig?
A: The brand name of the exploration drilling rig is Glorytek.
Q: What is the model number of the exploration drilling rig?
A: The model number of the exploration drilling rig is GL-1000A.
Q: What is the place of origin of the exploration drilling rig?
A: The exploration drilling rig is made in China.
Q: What certifications does the exploration drilling rig have?
A: The exploration drilling rig has CE, TUV, and SGS certifications.
Q: What is the price of the exploration drilling rig?
A: The price of the exploration drilling rig is $44000.
Q: What is the minimum order quantity of the exploration drilling rig?
A: The minimum order quantity of the exploration drilling rig is 1 set.
Q: What are the packaging details of the exploration drilling rig?
A: The exploration drilling rig is packaged in seaworthy packing.
Q: What is the delivery time for the exploration drilling rig?
A: The delivery time for the exploration drilling rig is around 20 days after your advance payment.
Q: What are the payment terms for the exploration drilling rig?
A: The payment terms for the exploration drilling rig are 30% advance payment by T/T after issuing proforma invoice, 70% remaining payment by T/T before dispatching from our factory.
Q: What is the supply ability of the exploration drilling rig?
A: The supply ability of the exploration drilling rig is 10 sets every month.
