Product Description:

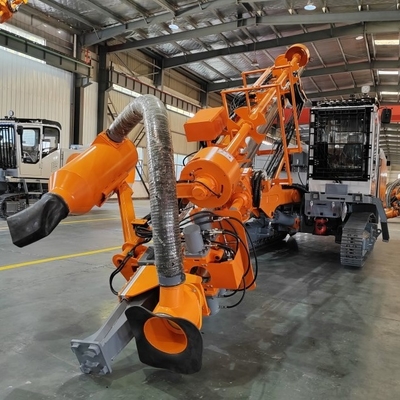

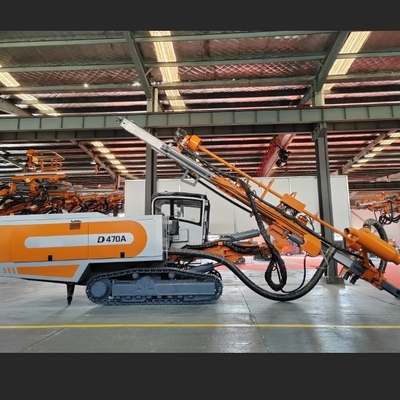

Equipped with a Heavy Duty Single Boom, our Rock Drill Rig is capable of drilling holes ranging from 152 to 203mm in diameter, making it ideal for a wide range of applications. The drill pipe handling capacity of our Rock Drill Rig is 4+1, and it can handle drill pipes with an OD of 114mm (Optional 102 / 127mm).
The Rock Drill Rig is designed to deliver maximum performance and efficiency, and it features a rotation speed of 0 - 80 Rpm. This ensures that you can drill the required depth with ease and accuracy, even in the toughest drilling conditions.
Our Rock Drill Rig is an open-pit integrated rock drill rig, designed to provide you with the perfect balance between performance and efficiency. With its high drilling capacity and advanced features, our Rock Drill Rig is the perfect choice for all your drilling needs.
Technical Parameters:
| DTH integrated surface rock drill rig |
|
| Air compressor rock drill rig |
|
| Quarry hammer rock drill rig |
|
| Rotation speed |
0 - 80 Rpm |
| Boom type |
Heavy Duty Single Boom |
| Drill pipe handling capacity |
4+1 |
| Drill pipe length |
7 M ( Optional 5 / 6 M ) |
| Air compressor |
25 Bar(362.5 Psi),33 M3 / Min |
| Hole range |
152 ‒ 203 Mm |
| Maximum torque |
5,600 N.m |
| Recommended DTH hammer size |
6 |
| Maximum hole depth with Auto handling |
35 M |
| Weight |
25,000kg |
Applications:
The Glorytek Drills offers a hole range of 152 ‒ 203 mm, making it ideal for various drilling needs. It also boasts a maximum torque of 5,600 N.m, which is powerful enough to penetrate even the toughest of surfaces. This rig comes with a heavy-duty single boom, perfect for drilling deep holes and reaching tough angles.
When it comes to air pressure, this crawler rock drill rig can handle up to 25 Bar (362.5 Psi), with 33 M3 / Min of air compressor capacity. This ensures that the drilling process is fast and efficient, allowing you to complete your tasks in no time. The drill pipe length is 7 meters, but it also offers an optional 5 or 6-meter length, depending on your needs.
Overall, the Glorytek Drills is a reliable and efficient crawler rock drill rig that is perfect for various drilling applications. Whether you are in construction, quarrying, mining, or exploration, this product can get the job done quickly and effectively. With its high-quality standards and specifications, it is a product that you can trust for all your drilling needs.
Support and Services:
We offer a range of services including:
- Installation and commissioning
- Training and education for operators and maintenance personnel
- Performance analysis and optimization
- 24/7 technical support
Our experienced technicians and engineers are equipped with the latest tools and technologies to provide fast and effective support. We also offer customized solutions to meet your specific drilling needs.
FAQ:
Q: What is the brand name of this rock drill rig?
A: The brand name of this rock drill rig is Glorytek.
Q: What is the model number of this rock drill rig?
A: The model number of this rock drill rig is Glorytek Drills.
Q: Where is this rock drill rig made?
A: This rock drill rig is made in China.
Q: What certifications does this rock drill rig have?
A: This rock drill rig has TUV and SGS certifications.
Q: What is the minimum order quantity for this rock drill rig?
A: The minimum order quantity for this rock drill rig is 1 set.
Q: What are the packaging details for this rock drill rig?
A: The packaging details for this rock drill rig are standard exporting packing.
Q: How long is the delivery time for this rock drill rig?
A: The delivery time for this rock drill rig is 45 days.
Q: What are the payment terms for this rock drill rig?
A: The payment terms for this rock drill rig are T/T.
