Name: Surface Drill DTH Rig Drilling Machine Blasthole Drill Rig D345A
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: option
Price: 285,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Namel: Surface Drill Rig

MOQ: 1set

Weight:: 6,500 Kg

Length:: 7,000 Mm

Width:: 2,250 Mm

Engine: Cummins

Hole Range:: 90 - 138 Mm

Recommended DTH Hammer Size:: 4” / 5”

Drill Pipe: 76 Mm X 3,000 Mm

Hole Depth:: 30 M

Feed Extension：: 960 Mm

Highlight:

blasthole drill rig DTH

Surface Drill DTH Rig

DTH Rig drilling machine

Basic Infomation

Place of Origin: China

Brand Name: Glorytek

Certification: CE and others

Model Number: option

Payment & Shipping Terms

Packaging Details: Seaworthy package

Delivery Time: 28-35days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 25 set per month

Gallery

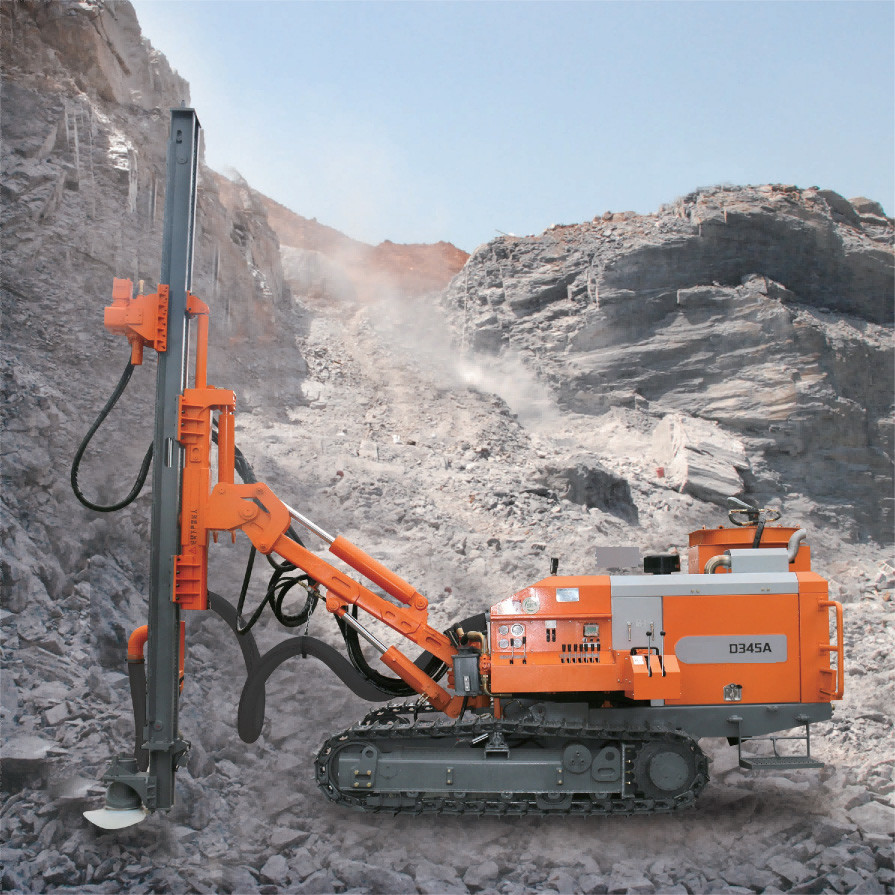

Surface Drill DTH Rig Drilling Machine Blasthole Drill Rig D345A

Product Description

Rock Drilling Rig

The track oscillation system makes the center of gravity of the drill rig more stable to climb the slopes up and down,with stronger track tradion.The protection design of the cab and drill rod carousel protect personnel from possible danger;
The rig can drill multiple rock holes in single positioning action. The flexible drilling arm and off-road ability meet complex rock drilling requirements. The drilling speed is 50% faster than high pressure integrated DTH drilling rig;

Surface Drill DTH Rig Drilling Machine Blasthole Drill Rig D345A 0

Technical Parameter

Engine manufacturer:	Cummins
Emission standards:	China Ⅳ
Engine model:	4BTA3.9-C80
Engine rated power:	60 kW
Hole diameter range:	Φ90 - 138 mm
Drill pipe:	Φ76 mm x 3,000 mm
Hole depth:	30 m
Feed total length:	5,645 mm
Feed extension:	960 mm
Feed force:	20 kN
Tramming speed:	2.5 km / h
Hill climbing ability :	25°
Fuel tank capacity:	80 L
Weight( w/o Options ):	6,500 kg
Air consumption:	8 - 20 m³ / min
Working air pressure:	0.7 - 2.5 Mpa
DTH hammer:	4” / 5”
Rotation torque:	3,200 N.m
Drill pipe length:	3,000 mm
Feeding :	Hydraulic cylinder - chain
Feed travel length:	3,660 mm
Feed max speed:	26 m / min
Pull up max force:	45 kN
Traction force:	45 kN
Ground clearance:	280 mm
Width:	2,250 mm
Length:	7,000 mm

Packing and Transport

1. Drilling machine is bare packing.

2. Drilling tools will be packed in cases or wooden boxes.

3.The delivery time for machine normally be 25-35 days after receiving payment. The drilling tools normally 3-5days if in stock.

4. Shipping by sea, air or express are all available.

Company Profile

Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients; requirements.

Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.

Our products have been exported more than 60 countries, including Australia, Russia, Soutn Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, Haiti etc.

Customer Visit

Exhibition

FAQ

Q: How can we choose a suitable water well drill rig?

A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.

Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.

Q: What is your payment terms?
A: We can accept T/T,L/C.

Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 3-5 days.

Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).

Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
