Name: Portable Diamond Core Drill Rigs / Drilling Rig GL300 / GL550 / GL800
Brand: Glorytek Industry (Beijing) Co., Ltd.
SKU: option
Price: 45,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Core Drilling Rig

MOQ: 1set

Model NO.: Option

Transport Package: By Sea

Drill Dia: BQ,NQ,HQ,PQ

Types: Portable Exploration Drilling Rigs

Drilling Depth: 300 M -800m

Type: Full Hydraulic

Highlight:

Portable Diamond Core Drill Rigs

GL550 Diamond Core Drill Rigs

GL800 Diamond Core Drill Rigs

Basic Infomation

Place of Origin: China

Brand Name: Glorytek

Certification: CE and others

Model Number: option

Payment & Shipping Terms

Packaging Details: Seaworthy package

Delivery Time: 1 month

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 600 set per month

Gallery

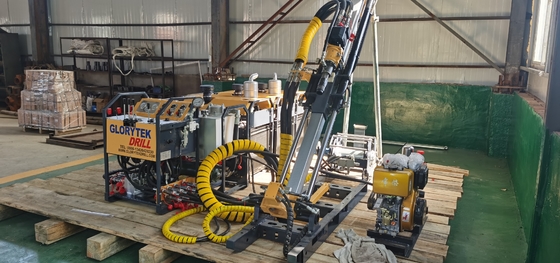

Portable Diamond Core Drill Rigs / Drilling Rig GL300 / GL550 / GL800

Product Description

GL300/GL550/GL800 Portable Core Drilling Rig

Applications:

1. With hydraulic automatic feeding device, elevated drilling efficiency.
2. The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be replaced without shutdown.
3. Centralized handles, easy operation, safe and reliable.
4. The drilling machine, pump and diesel engine are installed on a common base frame in order to have a compact structure and
occupy small field area. 5 lightweight, high detachability, easy transportation and suitable for the operations in plains or
mountain areas.

Technical Parameter

Model	GL300E	GL500E	GL800E
Drilling Depth
B	320m	580m	800m
N	220m	380m	600m
H	80m	180m	260m
Note: The drilling depth is based on the theoretical value, and the specific drilling depth capability is determined by the actual working conditions and process methods
Power System
Diesel Engine	V2410T X1	V2410T X2	V2410T X3
Power	41kw	82Kw	123Kw
Rotating Speed	3000rmp	3000rpm	3000rpm
Electrical System	12V	12V	12V
Hydraulic System
Main Pump	17MPa	21MPa	21MPa
Auxiliary Pump	15MPa	17MPa	17MPa
Hydraulic Oil Cooling	Air cooling/water cooling	Air cooling/water cooling	Air cooling/water cooling
Feeding System
Feeding Stroke	1.8m	1.8m	1.8m
Feeding Force	45kN	55kN	65kN
Lifting Force	90kN	110kN	130kN
Drilling Angle	45°-90°	45°-90°	45°-90°
Lifting Speed	114m/min	114m/min	114m/min
Drill Pipe Length	1.5m	1.5m	1.5m
Rotary Head
Power	Hydraulic Motor	Hydraulic Motor	Hydraulic Motor
Drive	Spindle Drive	Spindle Drive	Spindle Drive
Suitable Drill Pipe(max)	114mm	114mm	114mm
Max. Rotating Speed	1200rpm	1200rpm	1200rpm
Max. Torque	580Nm	680Nm	680Nm
Wireline Winch
Wire Rope Capacity	500m	800m	800m
Lifting Tension	Empty Rope Drum: 10.4kN	Empty Rope Drum: 11.9kN	Empty Rope Drum: 11.9kN
Lifting Tension	Full Rope Drum: 4kN	Full Rope Drum: 5kN	Full Rope Drum: 5kN
Lifting Speed	90m/min	114m/min	114m/min
Drill Pipe Clamp
Max. I.D	114mm	114mm	114mm
Clamping Capacity	13000kg	13000kg	13000kg
Suitable Drill Pipe(O.D)	54mm-114mm	54mm-114mm	54mm-114mm
Core Diameter(O.D)	36mm-85mm	36mm-85mm	36mm-85mm
Mud Pump Unit( Optional)
Mud Pump	Plunger High-Pressure Pump	Plunger High-Pressure Pump	Plunger High-Pressure Pump
Drive Type	Independent Drive	Independent Drive	Independent Drive
Flow And Pressure	100Lpm, 20bar	120Lpm, 40bar	120Lpm, 40bar
Water Supply Unit(Optional)
Water Supply Pump	Plunger High-Pressure Pump	Plunger High-Pressure Pump	Plunger High-Pressure Pump
Drive Form	Diesel Engine(7.3KW)	Diesel Engine(7.3KW)	Diesel Engine(7.3KW)
Flow And Pressure	100Lpm, 70bar	100Lpm, 70bar	100Lpm, 70bar
Drill Rig Weight
Power Unit	180kg *1	180kg *2	180kg *3
Operation Unit	120kg	120kg	120kg
Oil Tank Unit(Full Load)	120kg	130kg	130kg
Mud Pump Unit( Optional)	50kg	50kg	50kg
Working Weight( about)	1040kg	1200kg	1200kg
Max. Disassemble Part QTY	10	12	12

FAQ

Questions and Answers:

Q 1: Are you factory or trade company?

A 1: We are manufacturer, we also supply trade service.

Q 2: Warranty terms of your machine?

A 3: One year warranty for the machine and technical support according to your needs.

Q 3: Will you provide some spare parts of the machines?

A 3: Yes, of course.

Q 3 : What about product package?

A 4: We pack our products strictly with standard seaworthy case.

Q 5: Can you accept OEM orders?

A 5: Yes, with professional design team, OEM orders are highly welcome.

Q 6: Which trade term can you accept?

A 6: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
