Product Description:

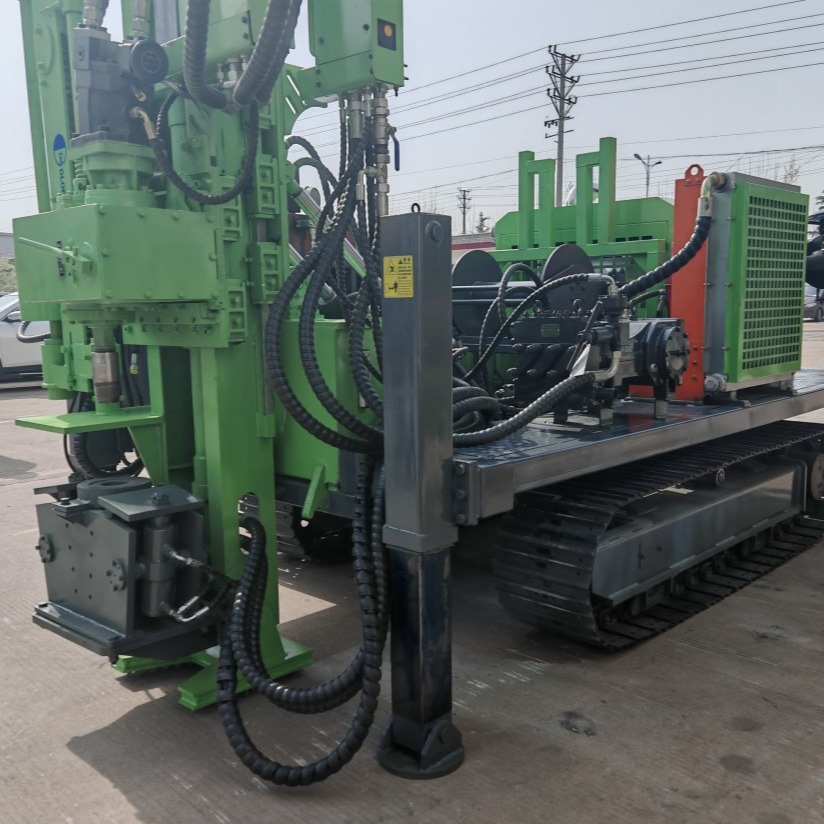

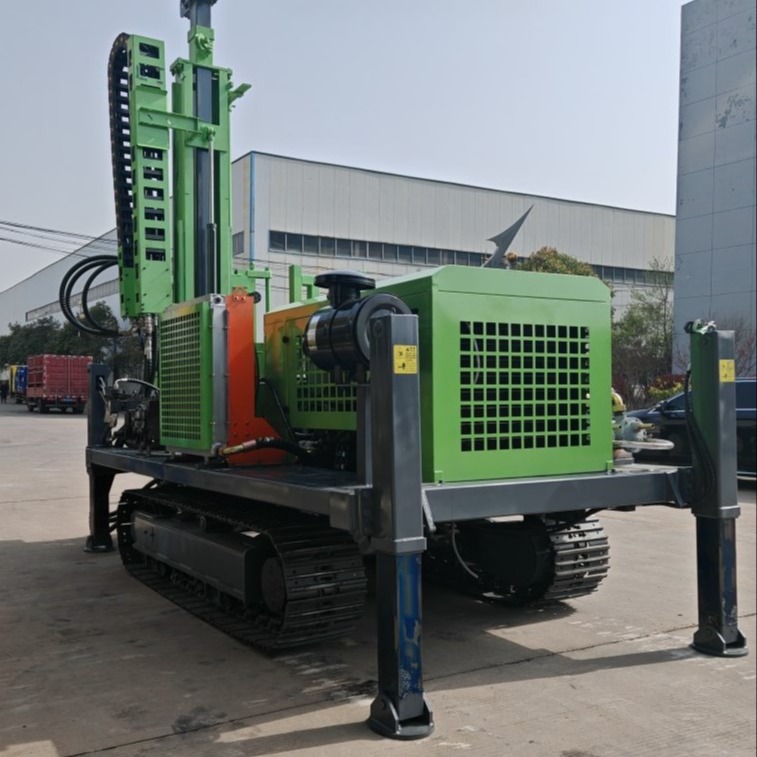

The Exploration Drilling Rigs from the GL Series are a versatile and powerful solution for deep exploration drilling operations. With a total weight of 8.8t, these rigs are designed to provide the stability and durability needed for offshore exploration projects.
Equipped with a sliding stroke of 1200mm, the GL Series Exploration Drilling Rigs offer excellent precision and control during drilling operations. This feature allows for efficient drilling in various geological conditions, making them ideal for high-capacity exploration projects.
The transport dimensions of 5900*2200*3000mm make these rigs easy to move and set up at different drilling sites, ensuring flexibility and mobility for exploration activities in remote locations.
One of the key highlights of the GL Series Exploration Drilling Rigs is their maximum torque of 1800N.m, which enables them to tackle challenging drilling tasks with ease. This high torque capacity makes these rigs suitable for deep exploration projects that require powerful drilling capabilities.
Whether you are looking for a Deep Exploration Rig, Offshore Exploration Rig, or a High-capacity Exploration Rig, the GL Series Exploration Drilling Rigs deliver exceptional performance and reliability to meet the demands of modern exploration drilling operations.
Technical Parameters:
| Mud pump |
BW160 |
| Model |
GL Series |
| Max. drilling depth |
1400m |
| Foot Clamp |
Foot Clamp Through-hole 146mm |
| Diesel engine power |
129kw |
| Wireline coring |
BTW,BQ,NTW, NQ ,HTW,HQ ,PQ (m) |
| Feed stroke |
3.5m |
| Usage |
Geological Exploration |
| Transport dimensions |
5900*2200*3000mm |
| Drilling angle |
0-90° |
Applications:
Glorytek Exploration Drilling Rigs, from the GL series, are ideal for a wide range of product application occasions and scenarios. These high-capacity rigs are manufactured in China and come with CE, TUV, and SGS certifications.
The GL series rigs feature a drilling angle of 0-90°, making them versatile for different drilling requirements. Equipped with a Foot Clamp Through-hole of 146mm, these rigs ensure stability during operation.
The inclusion of a BW160 mud pump, a mast height of 8.5m, and a total weight of 8.8t further enhance the capabilities of these rigs for deep exploration projects.
Whether you are exploring new mineral resources, conducting geotechnical surveys, or undertaking other drilling activities, Glorytek Exploration Drilling Rigs offer reliability and efficiency in challenging environments. Invest in these rigs for a seamless exploration experience.
FAQ:
Q: What is the brand name of the Exploration Drilling Rigs?
A: The brand name is Glorytek.
Q: What is the model number of the Exploration Drilling Rigs?
A: The model number is GL series.
Q: Where is the Exploration Drilling Rigs manufactured?
A: The product is manufactured in China.
Q: What certifications do the Exploration Drilling Rigs have?
A: The product is certified with CE, TUV, SGS.
Q: What is the minimum order quantity for the Exploration Drilling Rigs?
A: The minimum order quantity is 1 set.
