Factory Sale Integrated DTH Surface Rock Drill Rig for Gold Mining /Cement Raw Material Mining

Product Description:

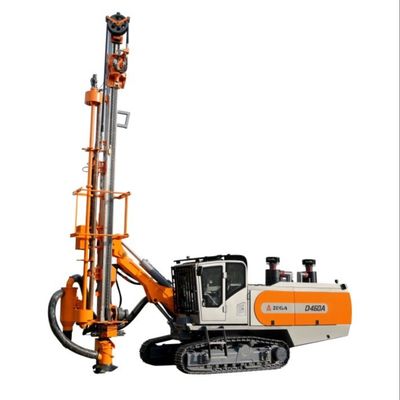

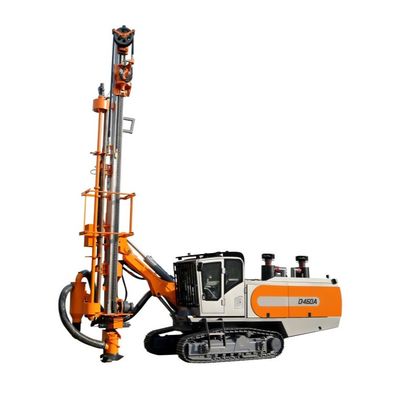

A Crawler Rock Drill Rig is an essential piece of equipment for various mining operations, specifically designed for drilling blast holes in hard rock surfaces efficiently and effectively. One such exemplary product is the Rock Drill Rig, which boasts impressive specifications and features that make it a standout choice in the industry.

Featuring a remarkable feeding rate of 0.88 M/S, this rock drill rig can swiftly advance through tough rock formations, ensuring quick and precise drilling operations. The drill pipe OD of 114mm further enhances its drilling capabilities, allowing for the creation of well-defined blast holes with optimal diameters.

Equipped with an air compressor delivering 24 Bar (348 Psi) pressure and a flow rate of 21M3/Min, this mining blast hole rock drill rig ensures consistent and powerful drilling performance. The high-pressure air supply aids in flushing out drill cuttings effectively, maintaining a clean drilling environment for enhanced productivity.

With a rotation speed ranging from 0 to 80 Rpm, this rock drill rig offers flexibility in drilling operations, allowing operators to adjust the speed according to the specific requirements of the drilling site. Whether drilling through hard rock or softer formations, the variable rotation speed ensures optimal drilling efficiency.

One of the standout features of this rock drill rig is its maximum torque of 5,600 N.m, providing the necessary power to penetrate even the toughest rock surfaces with ease. The high torque output ensures reliable drilling performance, allowing operators to complete drilling tasks swiftly and accurately.

In conclusion, the Rock Drill Rig is a top-of-the-line mining blast hole rock drill rig that excels in performance, durability, and efficiency. With its impressive specifications, including a high feeding rate, drill pipe OD, air compressor capacity, rotation speed, and maximum torque, this rock drill rig is the ideal choice for demanding drilling applications in the mining industry.

Features:

• Product Name: Rock Drill Rig
• Rotation speed: 0 - 80 Rpm
• Maximum hole depth with Auto handling: 30 M
• Drill pipe handling capacity: 4+1
• Maximum torque: 5,600 N.m
• Hole range: 138 ‒ 165mm

Technical Parameters:

Applications:

Glorytek's rock drill rig, model number Glorytek Drills, is a versatile and powerful tool designed for a variety of product application occasions and scenarios. With its origins in China, this rock drill rig comes with certifications from TUV and SGS, ensuring high quality and reliability.

One of the key attributes of this rock drill rig is its maximum hole depth with Auto handling of 30 meters, making it ideal for open pit integrated rock drilling operations. The rig is equipped with an air compressor that operates at 24 Bar (348 Psi) and 21M3 / Min, enabling efficient drilling in challenging terrains.

Designed for versatility, this rock drill rig has a hole range of 138 ‒ 165mm, making it suitable for a wide range of drilling applications. The drill pipe OD of 114mm ensures durability and strength during operation, even in tough conditions.

For enhanced performance, the Glorytek rock drill rig is recommended to be used with a 5” DTH hammer, with an optional 6” size available for specific requirements. This flexibility allows users to customize the rig based on their drilling needs.

With a minimum order quantity of 1 set and a supply ability of 20 sets per month, customers can easily procure this high-quality rock drill rig for their projects. The packaging details include standard exporting packing, ensuring safe delivery to any location.

Customers can expect a delivery time of 30 days after placing an order, with payment terms of T/T for convenience. Whether it's for open pit integrated rock drilling, air compressor rock drilling, or 35m DTH integrated rock drilling, the Glorytek rock drill rig is a reliable and efficient choice for various drilling applications.

Support and Services:

The Product Technical Support and Services for the Rock Drill Rig product include:

- Initial setup and installation guidance

- User training and education on operating the drill rig

- Troubleshooting assistance for any technical issues

- Regular maintenance and service recommendations

- Parts replacement and repair services
