Product Description:
Our drill rig machines come equipped with a high strength aluminum alloy feed beam, ensuring durability and longevity even under the toughest drilling conditions. With a maximum working pressure of 24 Bar, our hydraulic DTH drilling rig is capable of handling even the most challenging drilling tasks with ease.
But that's not all - our Surface Drill Rig also boasts an impressive slope climbing ability of 25 degrees, making it the perfect choice for drilling on uneven terrain. And with a fuel tank capacity of 750 L, you can rest assured that you'll have plenty of fuel to keep your hydraulic DTH drilling rig running smoothly all day long.
When it comes to choosing the right DTH hammer size, we recommend using a 5" or 6" hammer for optimal performance. And with our years of experience and expertise, we can help you select the perfect hammer size for your specific drilling needs.
So why wait? Invest in a top-quality hydraulic DTH drilling rig today and experience the difference for yourself!

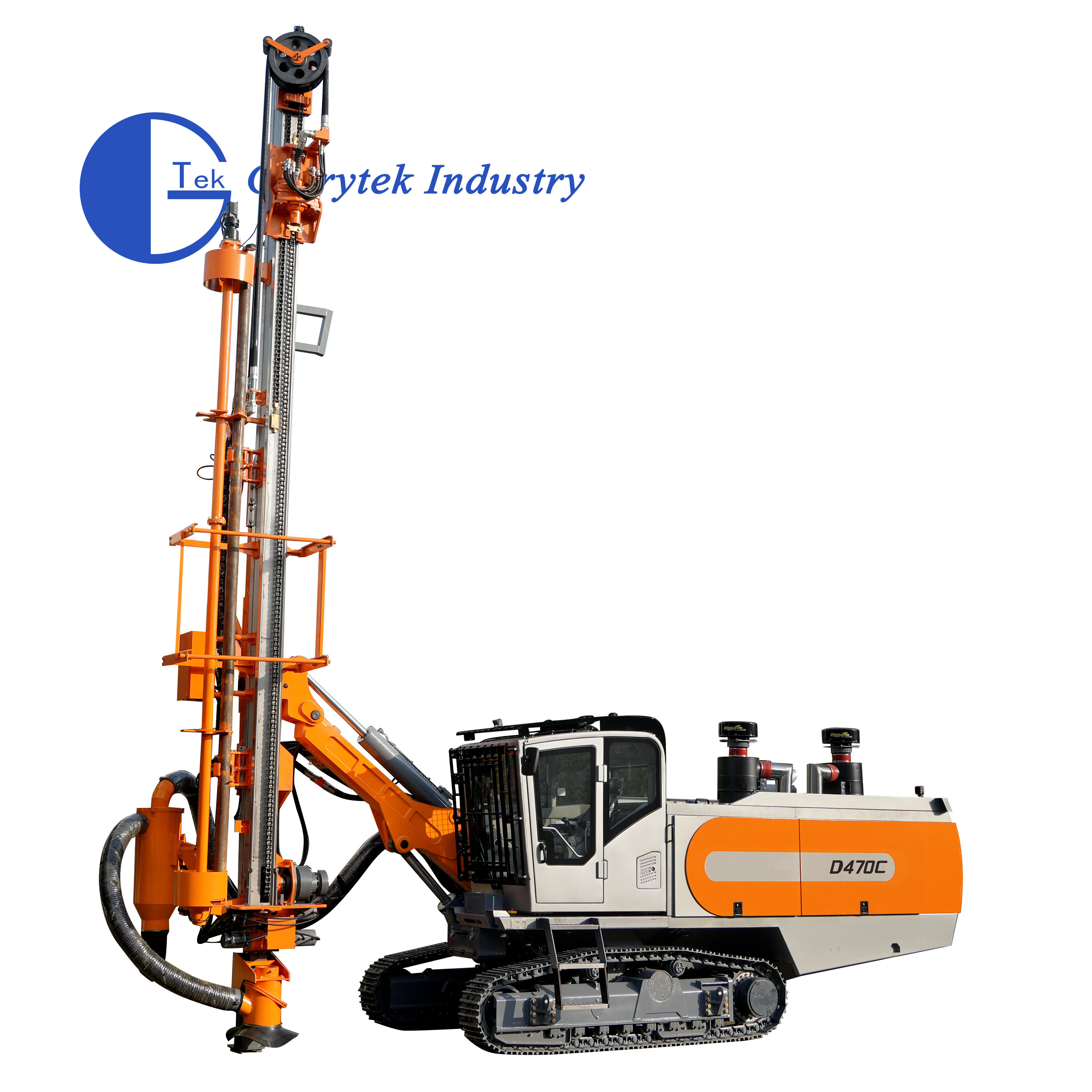

Picture:
Features:
Safe & reliable
Cab: A spacious and comfortable safe cab which is ROps and FOPS approved, meets ergonomic requirements and delivers a scientific and comfortable driving experience, The seat with adiustable position is equipped with air-cushion shock absorption; Low noise and good visibility for drilling and collaring activities.
Guardrait: The drill rig top is equipped with guardrail and anti-slip stickers ensuring the safety of maintenance and service personnel; Meanwhile, the drill boom is also equipped with guardrails against drill rod fall-prevention.
Remote control: The product can be optionally equipped with a short-range remote control function, allowing operators to flexibly control drilling operations within a range of 100 meters, reducing risks during highwall mining or while getting on/off transportation vehicles.
High Productivity and flexible
Single engine:A single power unit simultaneously drives the operations of hydraulic system and screw ar end, improving the space utilization of the equipment while reducing energy consumption and maintenance costs
Long drill rod: drill rod configurations vary from3m, 4m, 5m, 6m, 7m, 9m and 10.7m, maximumly reducing the time of rod changing and enhancing the productivity.
Multi hole size: The heavy-duty reinforcement design within the functional range enables the equipment to simultaneously meet the rock driling applications under diferent working conditions and with different hole size.
Energy-saving and environment friendly
Dust collection capability: Based on diferent environmental conditions and customer needs, we provide such diferent solutions as dry dust collection, wet dust collection,and dry and wet mixed dust collection to meet the highest environmental reguirements.
Eficient air end: Excelent desien and manuiacturing technology of screw air end ensures drill rigs to obtain more energy-efficient high-pressure air power.
Controlsystem: The self-sensitive adiustment system meets the power requirements of drill rigs in various operating states at all times, while consuming the lowest energy during auxiliary operations of drill rigs.
Personalization
Remote control: Operators and equipment managers can easily access operational data of the equipment, making production scheduling and maintenance easier
Customization: We can provide customized designs for customers based on different working, conditions, environments, regulations and other special requirements.
Adaptability: Offer correspondingsolutions such as extreme cold climate kit, tropical desert kit, hieh altitude kit or hieh humidity kit for extreme working environments tomeet the needs of different regions around the world.
Technical Parameters:
| Hole range: |
φ 138 -165 mm |
| Recommended DTH hammer size: |
5"/6" |
| Drill pipe handling capacity: |
4+1 |
| Drill pipe OD: |
114/102 mm |
| Drill pipe length: |
6/5/7 m |
| Maximum hole depth: |
35 m |
| Hydraulic motor driven rotary head |
|
| Rotation speed: |
0 - 80 rpm |
| Maximum torque: |
5,600 N.m |
| Diesel engine: |
L9CS4-430C |
| Rated power: |
316 kW ( 430 hp ) ,1,900 rpm |
| Emission standard: |
China IV |
| Fuel tank |
|
| Capacity: |
750 L |
| Maximum working pressure: |
24 bar (348 psi) |
| Capacity FAD: |
21 m3 / min |
| Feed length: |
10,500(10,000) mm |
| Feed travel length: |
6,600 mm |
| Feed extension: |
1,300 mm |
| Feeding rate: |
0.9 (0.88) m / s |
| Maximum feeding force: |
40 (34.5) kN |
| Maximum pull up force: |
50 (67.6) kN |
| Track frame: |
with oscillation cylinders |
| Maximum Tramming speed: |
3 km / h |
| Maximum Traction force: |
156.2 kN |
| Slope climbing ability: |
25° |
| Track frame oscillation angle: |
± 10° |
| Ground clearance: |
420 mm |
| Transport dimensions(w/o options), approx. |
| Weight: |
23,500 kg |
| Length: |
11,560 mm |
| Width: |
2,700 mm |
| Height: |
3,560 mm |
Applications:
Support and Services:
Our team of experienced technicians provides on-site installation, training, and maintenance services to ensure that your drill rig machine is functioning optimally. We also offer remote technical support to help troubleshoot any issues that may arise.
In addition, we offer a range of aftermarket services to keep your drill rig machine running smoothly. These services include replacement parts, upgrades, and refurbishments.
At our company, we are committed to providing our customers with the best possible support and services. Contact us today to learn more about how we can help you maximize the performance of your drill rig machine.
