Integrated DTH Surface Drill Rig
Product Description
Reverse Circulation Sampling Exploration is acost-effective approach to geological exploration that enables efficient planning of mining and quarrying operations through high-quality sampling. Reverse circulation drilling not only avoids or reduces dilution caused by ore and waste rock mixing, but also provides a large number of samples in a short period of time, and in-depth analysis can quickly derive reliable geological information related to the deposit, which helps to select appropriate drilling and blasting boundaries, maximizes ore recovery and yield per ton, and reduces environmental impact.
The RC frame is a multi-angle drill stand, which can meet various complex working conditions;
The independent remote control system can accurately control the reverse circulation device from a distance, so that the operator can keep away from dust, debris and other hazards.

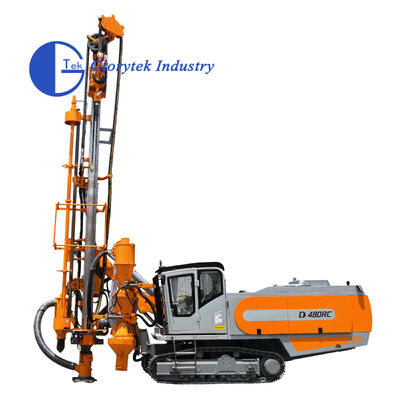

Product Picture
Features:
Safe & reliable
Cab: A spacious and comfortable safe cab which is ROps and FOPS approved, meets ergonomic requirements and delivers a scientific and comfortable driving experience, The seat with adiustable position is equipped with air-cushion shock absorption; Low noise and good visibility for drilling and collaring activities.
Guardrait: The drill rig top is equipped with guardrail and anti-slip stickers ensuring the safety of maintenance and service personnel; Meanwhile, the drill boom is also equipped with guardrails against drill rod fall-prevention.
Remote control: The product can be optionally equipped with a short-range remote control function, allowing operators to flexibly control drilling operations within a range of 100 meters, reducing risks during highwall mining or while getting on/off transportation vehicles.
High Productivity and flexible
Single engine:A single power unit simultaneously drives the operations of hydraulic system and screw ar end, improving the space utilization of the equipment while reducing energy consumption and maintenance costs
Long drill rod: drill rod configurations vary from3m, 4m, 5m, 6m, 7m, 9m and 10.7m, maximumly reducing the time of rod changing and enhancing the productivity.
Multi hole size: The heavy-duty reinforcement design within the functional range enables the equipment to simultaneously meet the rock driling applications under diferent working conditions and with different hole size.
Energy-saving and environment friendly
Dust collection capability: Based on diferent environmental conditions and customer needs, we provide such diferent solutions as dry dust collection, wet dust collection,and dry and wet mixed dust collection to meet the highest environmental reguirements.
Eficient air end: Excelent desien and manuiacturing technology of screw air end ensures drill rigs to obtain more energy-efficient high-pressure air power.
Controlsystem: The self-sensitive adiustment system meets the power requirements of drill rigs in various operating states at all times, while consuming the lowest energy during auxiliary operations of drill rigs.
Personalization
Remote control: Operators and equipment managers can easily access operational data of the equipment, making production scheduling and maintenance easier
Customization: We can provide customized designs for customers based on different working, conditions, environments, regulations and other special requirements.
Adaptability: Offer correspondingsolutions such as extreme cold climate kit, tropical desert kit, hieh altitude kit or hieh humidity kit for extreme working environments tomeet the needs of different regions around the world.
Technical Parameters:
| Hole range: |
φ 120 -150 mm |
| Recommended DTH hammer size: |
4" |
| Drill pipe handling capacity: |
6+1 |
| Drill pipe OD: |
102mm |
| Drill pipe length: |
6 m |
| Maximum hole depth: |
42 m |
| Hydraulic motor driven rotary head |
|
| Rotation speed: |
0 - 80 rpm |
| Maximum torque: |
5,600 N.m |
| Diesel engine: |
M14CS4IV41C |
| Rated power: |
412 kW (552 hp ) ,2,100 rpm |
| Emission standard: |
China IV |
| Fuel tank |
|
| Capacity: |
1000 L |
| Maximum working pressure: |
25 bar |
| Capacity FAD: |
33 m3 / min |
| Feed length: |
11,500(11,000) mm |
| Feed travel length: |
7,600 mm |
| Feed extension: |
1,300 mm |
| Feeding rate: |
0.9 (0.88) m / s |
| Maximum feeding force: |
40 (34.5) kN |
| Maximum pull up force: |
50 (67.6) kN |
| Track frame: |
with oscillation cylinders |
| Maximum Tramming speed: |
3 km / h |
| Maximum Traction force: |
156.2 kN |
| Slope climbing ability: |
25° |
| Track frame oscillation angle: |
± 10° |
| Ground clearance: |
420 mm |
| Transport dimensions(w/o options), approx. |
| Weight: |
27,000 kg |
| Length: |
13,200 mm |
| Width: |
3,000 mm |
| Height: |
3,610 mm |
Applications:
